ASTM A519 SAE4130 AISI4130 30CrMo seamless drill pipe for wire-line drill rods
COLD DRAWN SEAMLESS ALLOY STEEL TUBES
STEEL GRADE: SAE/AISI4130
SPECIFICATIONS: ASTM A519 WITH FOLLOWING REQUIREMENTS.
MECHANICAL PROPERTIES
| Tensile Min | 725MPa |
| Yield Min | 620MPa |
| Elongation (50.8mmG.L) | Min 15% |
| Hardness | 230-280 HB |
| Condition | Stress relieved. |
| Straightness better than: | 1 in 2000 MAX (1MM DEVIATION IN 2000MM) |
| Eccentricity (Max) | 5% |
| Grain size | ≥ 9 according to ASTM E112 |
| Residual Hoop stress | <80Mpa according to ASTM E1928-99 |
DIMENSION AND TOLERANCES (IN MM)
| SR.NO. | OUTSIDE DIA | TOLERANCE | INSIDE DIA | TOLERANCE | WT | LENGTH (+5/-0) |
| 1 | 55.56 | +0.18/-0 | 46.20 | +0/-0.18 | 4.68 | 3070 |
| 2 | 69.85 | +0.20/-0 | 60.32 | +0/-0.20 | 4.765 | 3070 |
| 3 | 88.90 | +0.25/-0 | 78.00 | +0/-0.25 | 5.45 | 3070 |
NON-DESTRUCTIVE TEST
Eddy Current Examination according to ASTM E309shall be applied on all tubes using External Longitudinal notch with depth of no more than 7.5% of wall thickness (maximum notch depth 0.80mm and minimum notch depth 0.30mm) , 0.30mm maximum width and 25mm maximum length, made from the same chemistry and size of tubing.
SURFACE CONDITION
The tubes must have smooth surface
MARKING
The request information shall be marked on each tube with paint, and
each bundle shall be identified with a securely attached metal tag.
COATING
The tubes inside and outside shall be coated with a rust inhibitor

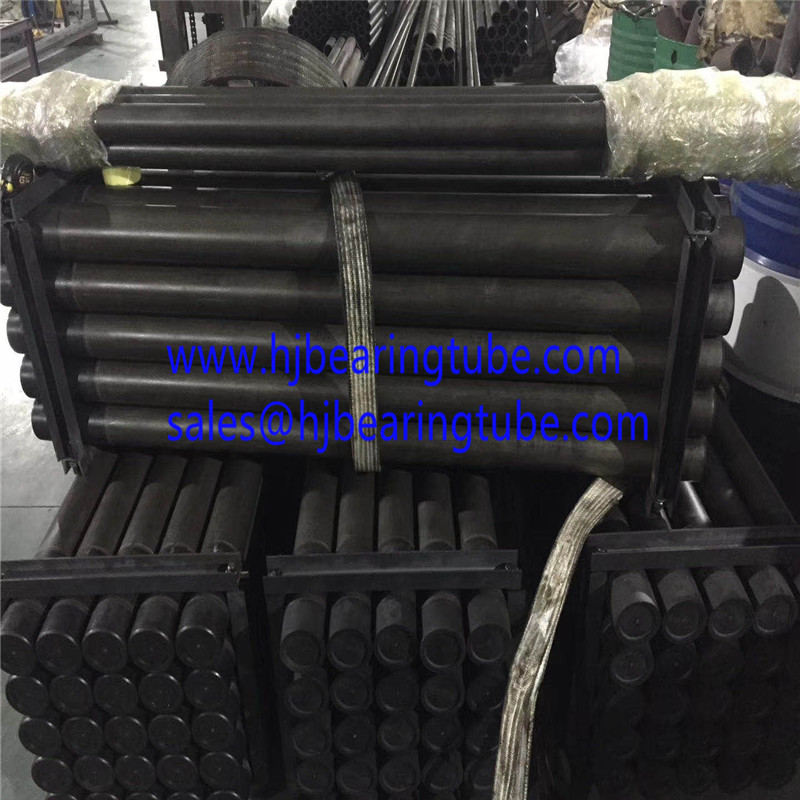

PACKING
Standard Export worthy packing, preferably in hexagonal bundle with plastic wrapped and steel strapped.
