Product details

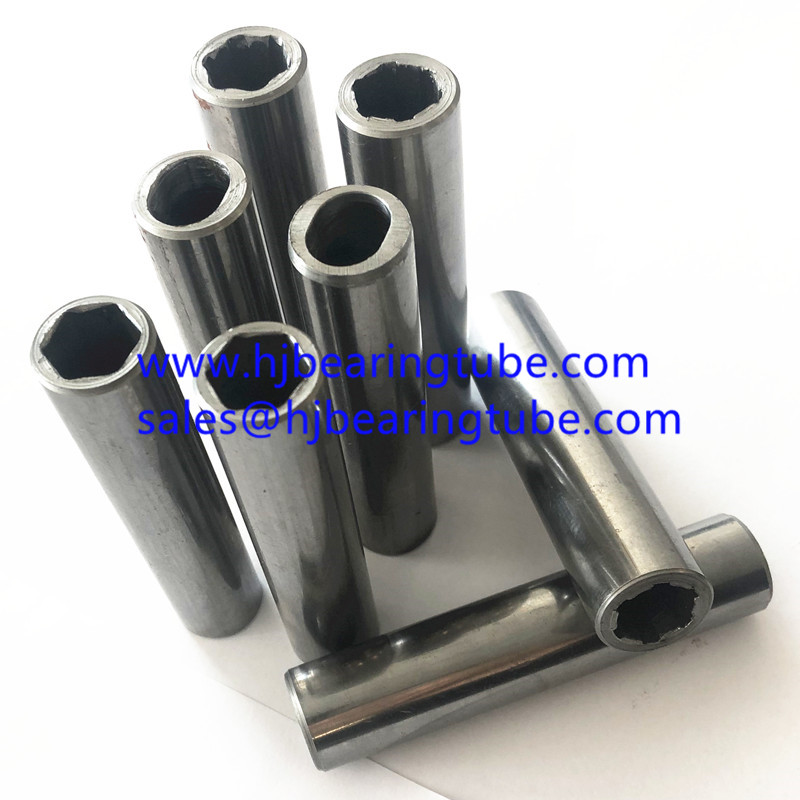

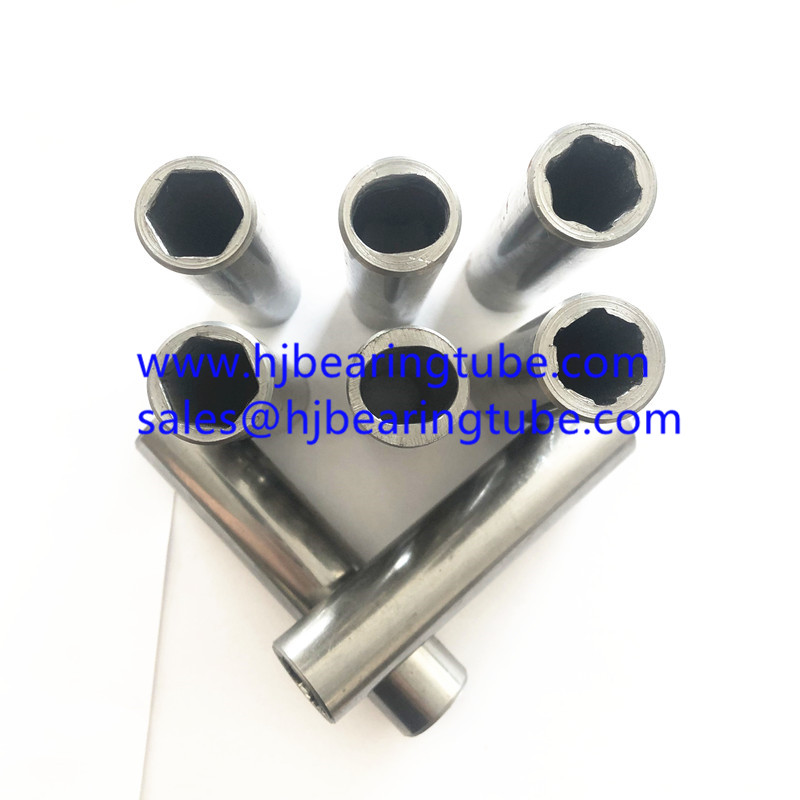

Mild Steel Cold Drawn hexagonal Oval Shaped Tube

Applications: for mechinery, mechanical engineer

Size range: O.D.:6-168mm W.T.:1-15mm L:max12000mm

We can producing shaped tube according to customer's special requirements or drawing.

Steel Grade As ASTM A519/A513 or others,Chemical compisition:

Steel C Mn P S Si Cr Mo

Grade max max max max min

1008 0.10 0.30-0.50 0.040 0.050

1010 0.08-0.13 0.30-0.60 0.040 0.050

1018 0.15-0.20 0.60-0.90 0.040 0.050

1020 0.18-0.23 0.30-0.60 0.040 0.050

1026 0.22-0.28 0.60-0.90 0.040 0.050

1035 0.32-0.38 0.60-0.90 0.040 0.050

1045 0.43-0.50 0.60-0.90 0.040 0.050

4130 0.28-0.33 0.40-0.60 0.040 0.040 0.15-0.35 0.80-1.10 0.15-0.25

4140 0.38-0.43 0.75-1.00 0.040 0.040 0.15-0.35 0.80-1.10 0.15-0.25

Mechanical properties:

Grade condition Ultimat Yield Elongation Rockwell

Strength Strength Hardness

ksi Mpa ksi Mpa % B Scale

1020 HR 50 345 32 221 25 55

CW 70 483 60 414 5 75

SR 65 448 50 345 10 72

A 48 331 28 193 30 50

N 55 379 34 234 22 60

1025 HR 55 379 35 241 25 60

CW 75 517 65 448 5 80

SR 70 483 55 379 8 75

A 53 365 30 207 25 57

N 55 379 36 248 22 60

1035 HR 65 448 40 276 20 72

CW 85 586 75 517 5 88

SR 75 517 65 448 8 80

A 60 414 33 228 25 67

N 65 448 40 276 20 72

1045 HR 75 517 45 310 15 80

CW 90 621 80 552 5 90

SR 80 552 70 483 8 85

A 65 448 35 241 20 72

N 75 517 48 331 15 80

4130 HR 90 621 70 483 20 89

SR 105 724 85 586 10 95

A 75 517 55 379 30 81

N 90 621 60 414 20 89

4140 HR 120 855 90 310 15 100

SR 120 855 100 689 10 100

A 80 552 60 414 25 85

N 120 855 90 621 20 100

HR-Hot Rolled

CW-Cold Worked

SR-Stress Relieved

A-Annealed

N-Normalized

Tags: Shaped Steel Tube, Hexagonal Steel Tube, Oval Steel Tube, Rectangle steel tube, Square Steel Tube, Mild Steel Tube, Cold Drawn Steel Tube.
