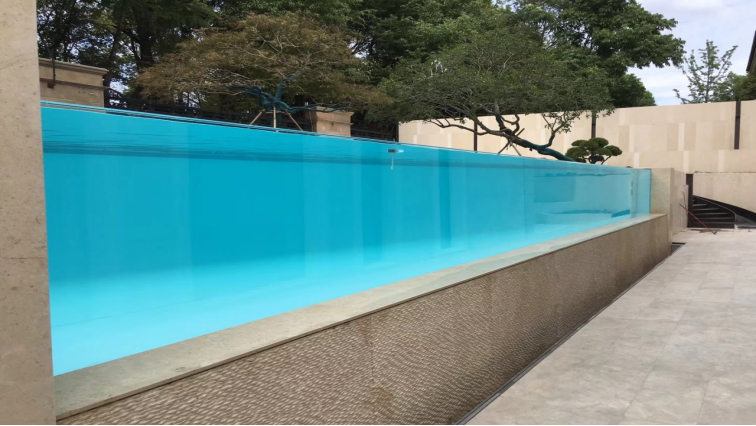

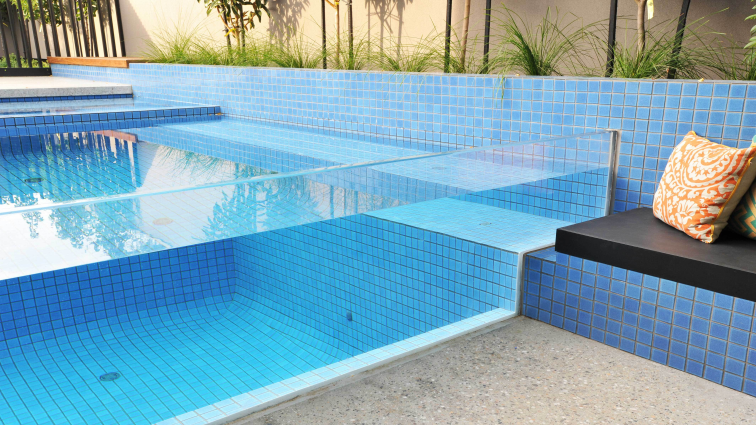

Acrylic pool is made of acrylic thick plate, its high transmittance, high transmittance reaches 92%, acrylic sheet transmittance is very good, the appearance of acrylic swimming pool panel is very beautiful. Acrylic has better impact resistance than ordinary glass.

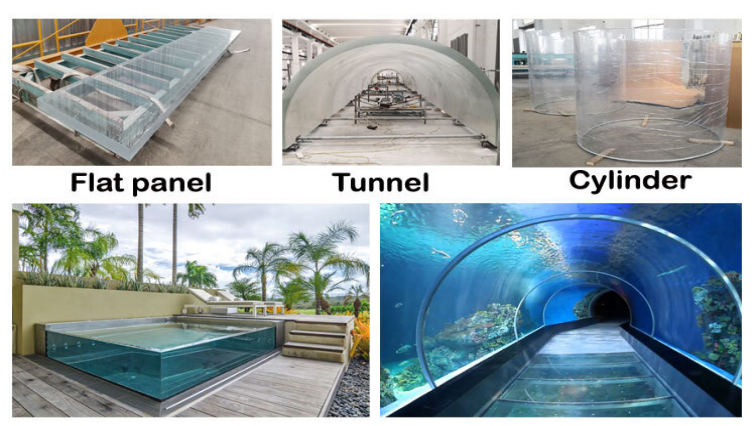

Products and Applications
Why Choose Us

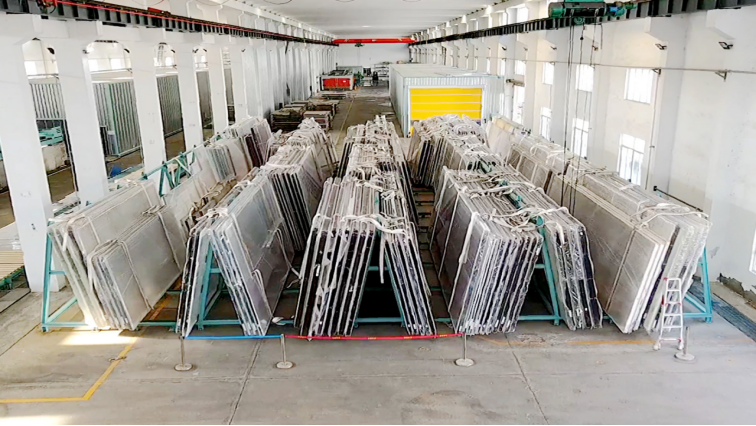

Strong Production Capacity
7-10 days short production time, huge stock, large capacity.

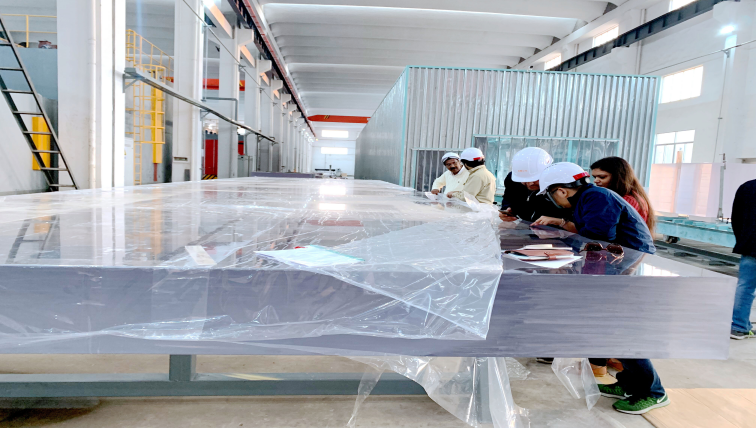

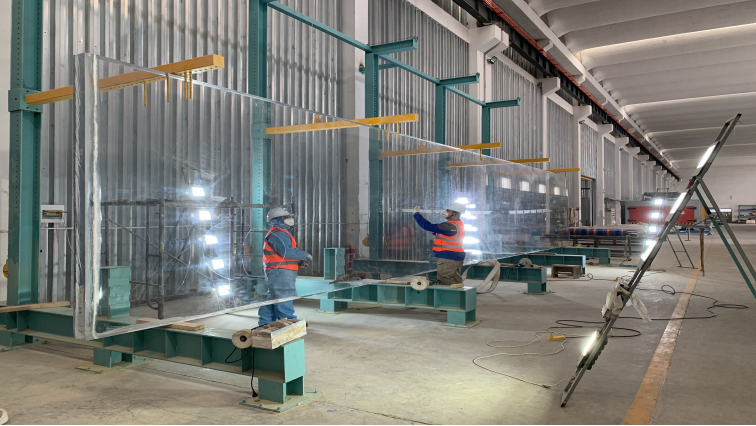

QC
Examine the interior of each acrylic board under light.

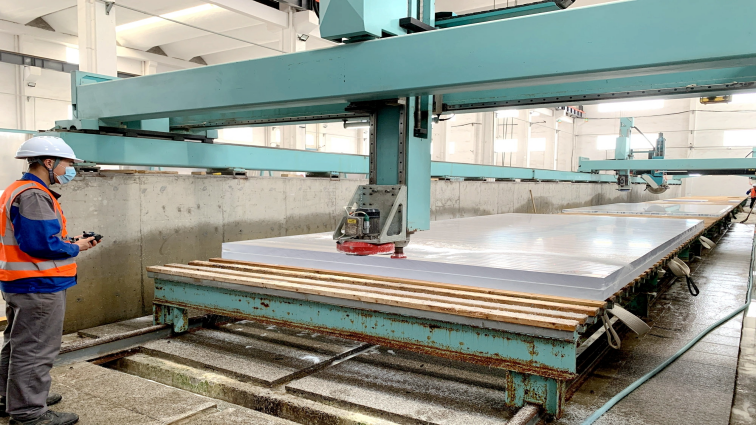

Flat surface
Milling surface smooth on each acrylic board.

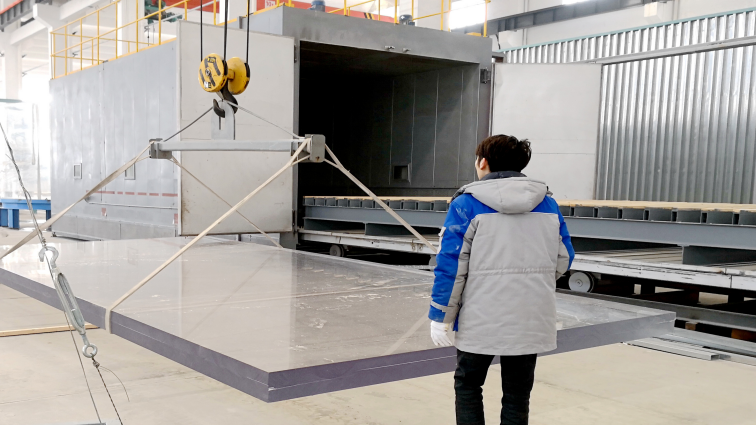

Tempered

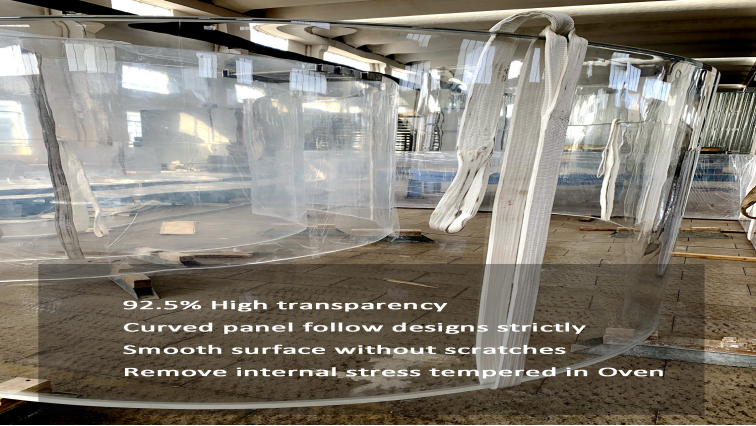

Remove internal stress Tempered in Oven each acrylic board.

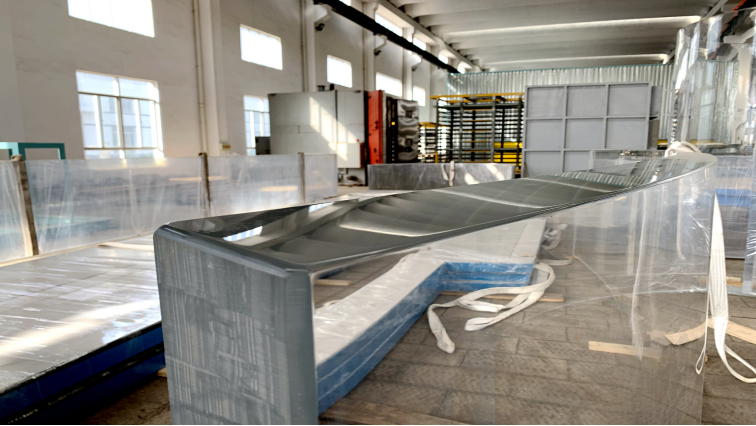

Top Edge Polishing and Chamfering
The top edge is polished and chamfered to protect the body from scratches.

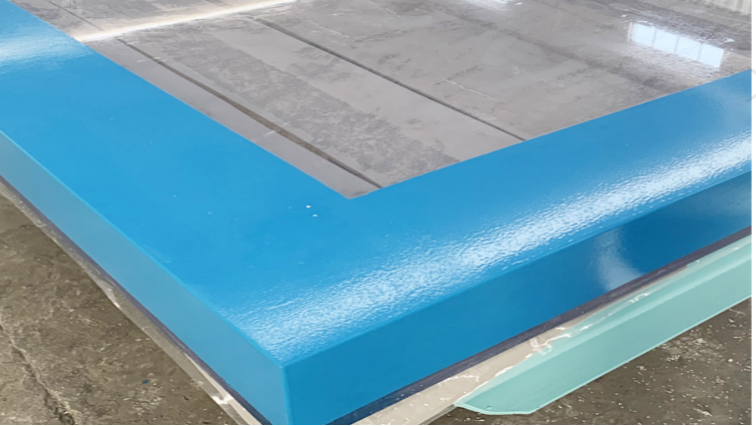

Decorate the installation sides with green blue paint.

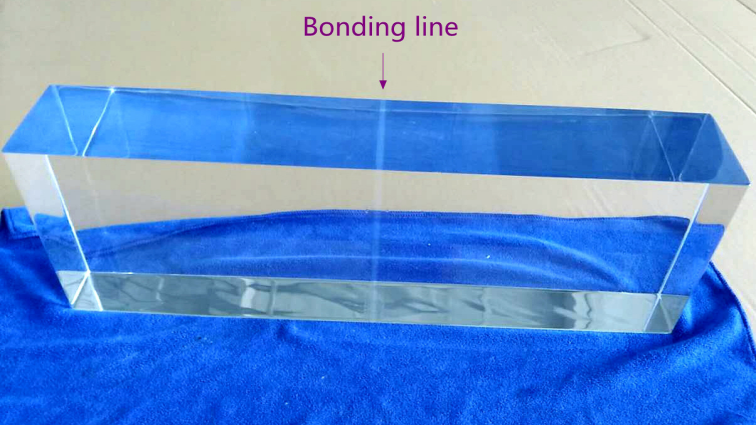

Superb bonding technology, so that the seams perfect.

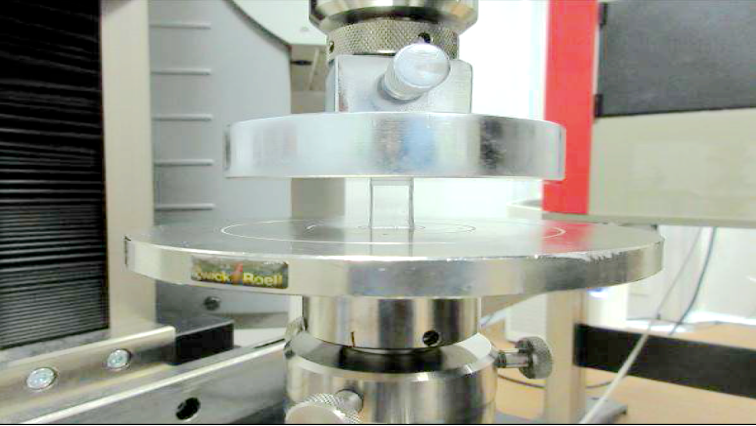

SGS Test
Test tensile strength and Veka softening temperature for each production batch.
How to order
1.TELL US THE SIZE
Tell us your swimming pool length, width and height, water level. It is better to have design file.
2.DRAFT DESIGN
Through finite element analysis, determine the thickness of the acrylic sheet, and draw the design for you.
3.PRODUCTION
We start production, cutting, bonding, bending, polishing, QC and packing, shipping to you.
4.INSTALLATION
We provide you installation guide, our engineer can go to your side to do installation if necessary.
Products Description
|
Material |
Lucite Acrylic |
|
Thickness |
20-300mm customized |
|
Color |
Clear/transparent |
|
Shape |
Customer's Demand |
|
Surface |
High Surface Hardness |
|
Light transmission |
High light transmission (93%) |
|
Diaphaneity |
More than 92% |
|
Packing |
PE film masking on both sides, KT board and angle iron. |
|
Application |
undersea world, Oceanarium, Zoo, Luxurious hotels, Swimming pools and so on. |
Data sheet
|
PROPERTIES |
VALUES |
RULES |
|
Density |
1.19 g/cm3 |
ISO 1183-1:2012 Method A |
|
Rockwell Hardness |
112L |
ISO 2039-2:1999 |
|
Tensile Modulus |
3150MPa |
EN ISO 527:2012 |
|
Tensile Strength |
80.0MPa |
EN ISO 527:2012 |
|
Tensile Strain at Break |
3.2% |
EN ISO 527-1:2012 |
|
Water Absorption |
0.20% |
ISO 62:2008 Method 1 |
|
Total Luminous Transmittance |
93.4% |
ISO 13468-1:1996 |
|
Vicat Softening Temperature |
105℃ |
ISO 306:2013 Method B50 |
|
Light Ageing Test- UV Exposure |
Grey scale: 5 |
ISO 4892-3:2016 Cycle 1 |
|
Mean Coefficient of Linear Thermal Expansion |
72×10-6 K-1 |
ISO 11359-1:2014 |
|
Compressive Stress at Yield |
129MPa |
EN ISO 604:2003 |
|
Flexural Strength |
120MPa |
ISO 178:2013 |
|
Compressive Yield Strength |
111MPa |
ASTM D695-15 |
|
Compressive Modulus |
3450MPa |
ASTM D695-15 |
|
Shear Strength |
59.7MPa |
ASTM D732-17 |
|
Deflection Temperature under Load |
100.2℃ |
ASTM D648-18 Method B |
|
Modulus Elasticity |
2810MPa |
ASTM D695-15 |

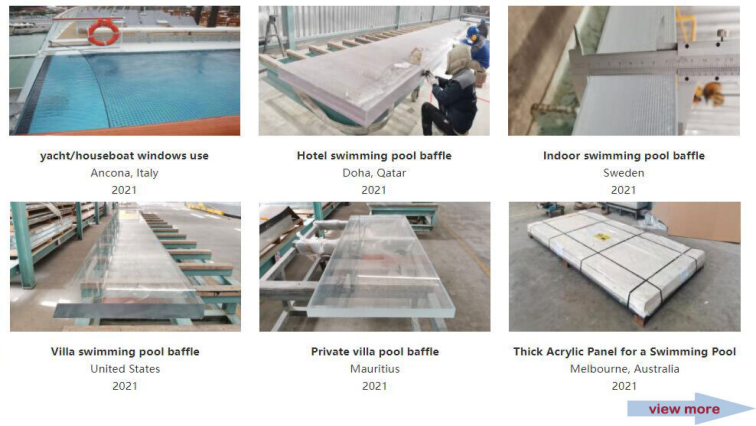

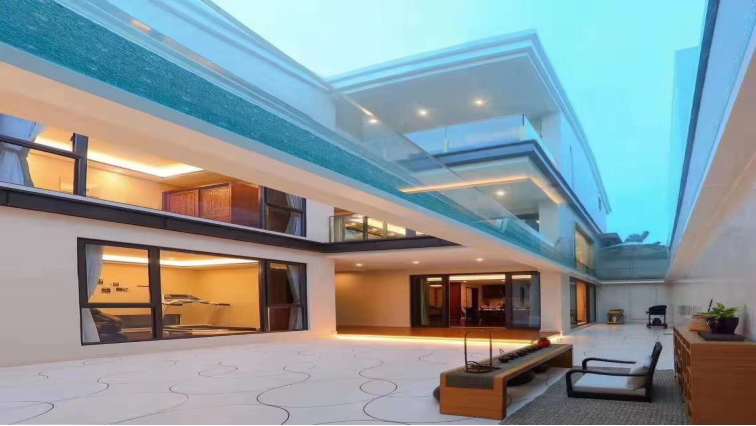

Case studies

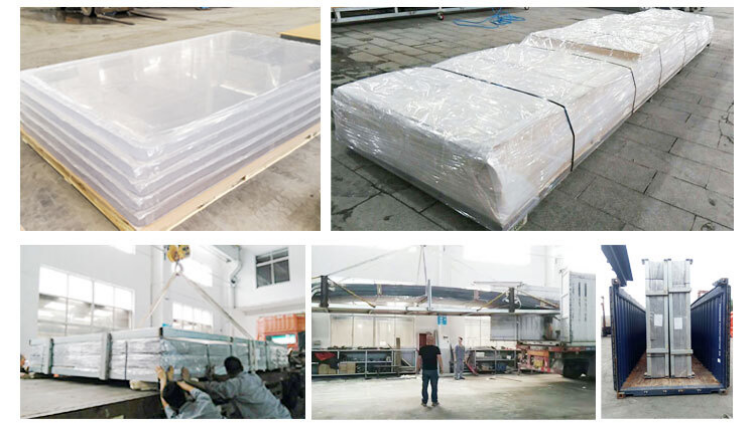

Packaging and shipping
Certifications
