Oil sealed rotary screw vacuum pump

Compared with existing vacuum pumps on the market, VTV series screw compressor pump show significant advantages. The VTV series adopts advanced technical design to achieve low-noise operation, and reduces hot air emissions in the workplace through efficient energy recovery, avoiding the impact of hot air on the air conditioning system, thereby creating a more comfortable working environment. Its excellent oil retention capacity greatly optimizes the quality of exhaust gas emissions, which is not only beneficial to the health of the operator, but also meets environmental protection requirements. The design of the VTV series is highly flexible and can meet the needs of different process flows.

Compared with the traditional belt transmission method, the screw air compressor pump saves more than 5% energy, effectively reducing the maintenance costs caused by V-belt connections. Equipped with frequency conversion and set point control functions, the vacuum compressor pump can accurately adjust the vacuum level or speed according to actual needs, ensuring that the air volume closest to the required is delivered, achieving efficient operation without waste, and bringing significant energy-saving benefits. In addition, the VTV series oil and gas separators have extremely high oil condensation capacity and extremely low back pressure, further reducing energy consumption.

The anti-overload technology of the filter media extends the service life of the oil filter and reduces maintenance frequency and costs.

Rigid direct connection

Compared with belt drive, it saves more than 5% of energy consumption, reduces the maintenance cost caused by V-belt connection, provides precise axis positioning, and prolongs the life of the main engine (pump) bearings and motor.

High-efficiency oil-gas separator

Cartridge-type replacement parts, simple and easy to operate. Two-stage separation is adopted to reduce the loss of lubricating fluid.

Vacuum host

Paired processed rotors have extremely high compression efficiency. The groove line and pitch line design reduce internal leakage. Patented design, low noise, and high-quality bearings ensure stable operation and long life of the host.

Cooling system

Lightweight, stable, low-noise outer rotor motor centrifugal fan. Professional shock absorption and noise reduction design, making the unit's noise as low as 72 decibels when running at rated conditions

High-performance motor

IP55 fully enclosed motor, low noise design, no-load sound LPA <75DB(A), insulation grade: F (B-level assessment)

Suction filter

Protects the vacuum pump from contamination and is easy to maintain. With vacuum differential pressure alarm and NPT thread or flange connection.

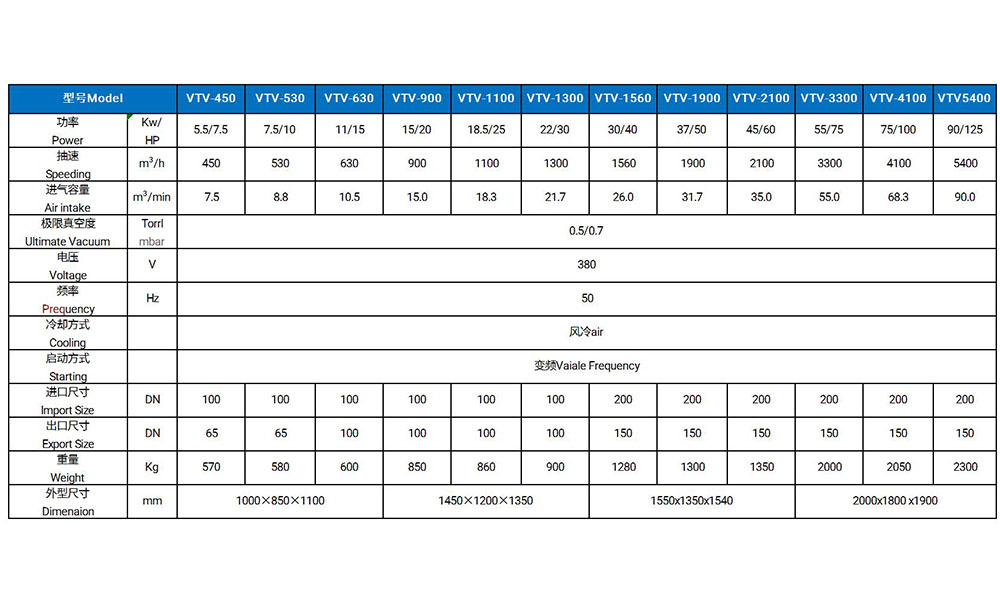

Specification

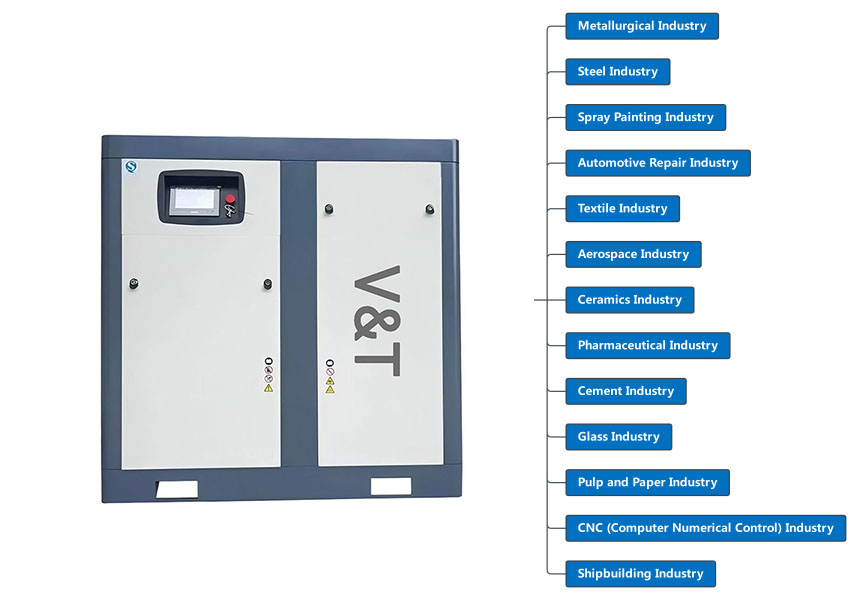

Application
