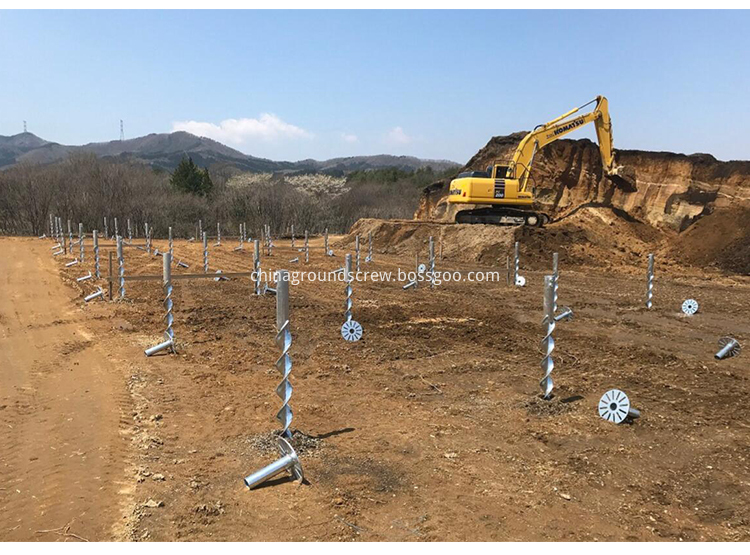

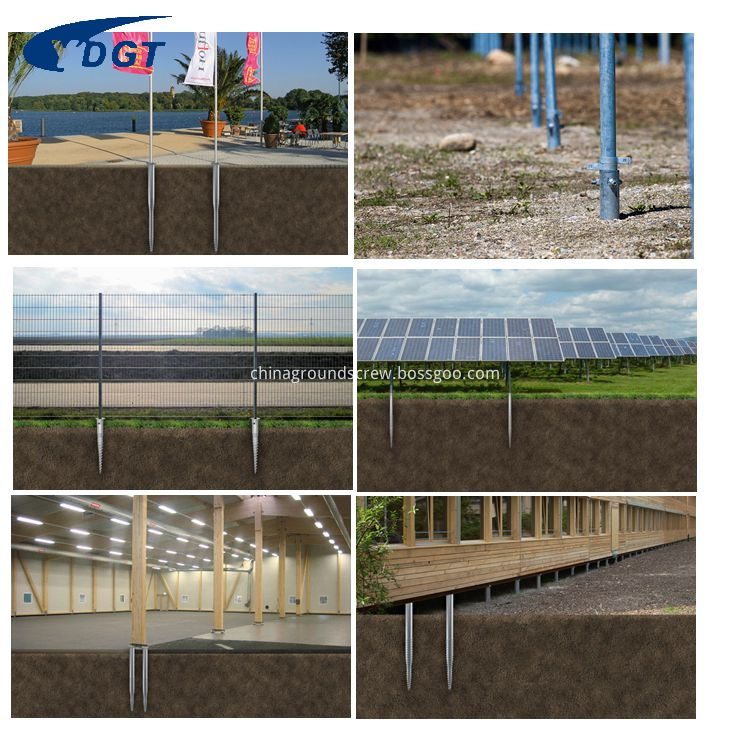

Most Popular Spiral Ground Screw Pile can be use in vineyard, farm or horse fence, galvanized flange ground screw anchor for lighting pole , timber construction , farm and fencing, house construction. They are installed perfectly perpendicular at the exact point within minutes. Ground Screw Foundation are suitable for natural ground, but also can be installed in rock and tarred surfaces .
Advantage of S 235 carbon steel Galvanized Ground Screw are as below :
Our Ground Screw Piles made of S 235 carbon steel with good quality .

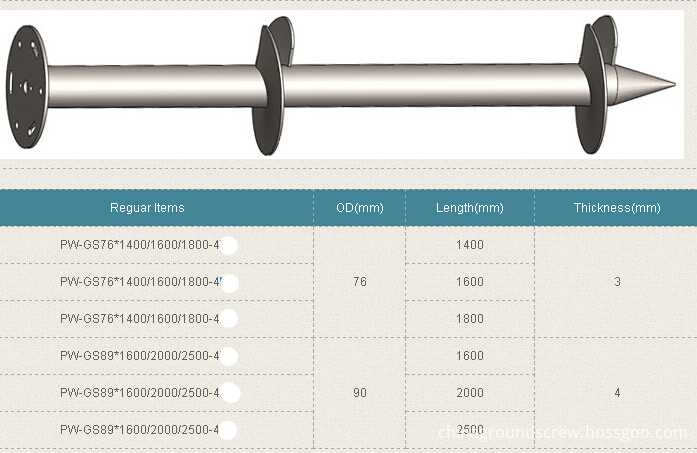

Flange Ground Screw with flange, flange size is 8*200 mm , or 6*160 mm , or according to clients' request.
Material of Steel Ground Screw : S 235 carbon steel.
Length of the F Series Ground Screw : 550-6000 mm .
Screw Pile's diameter : 48 mm, 68 mm, 76 mm, 89 mm, 114 mm, according to clients' request.
Thickness of metal pipe : 2.75 mm , 3.00 mm , 3.75 mm , 4.00 mm.
Surface treatment : Hot dip galvanized, according to DIN EN ISO 1461-1999, thickness of coating zinc: more than 80 micron.

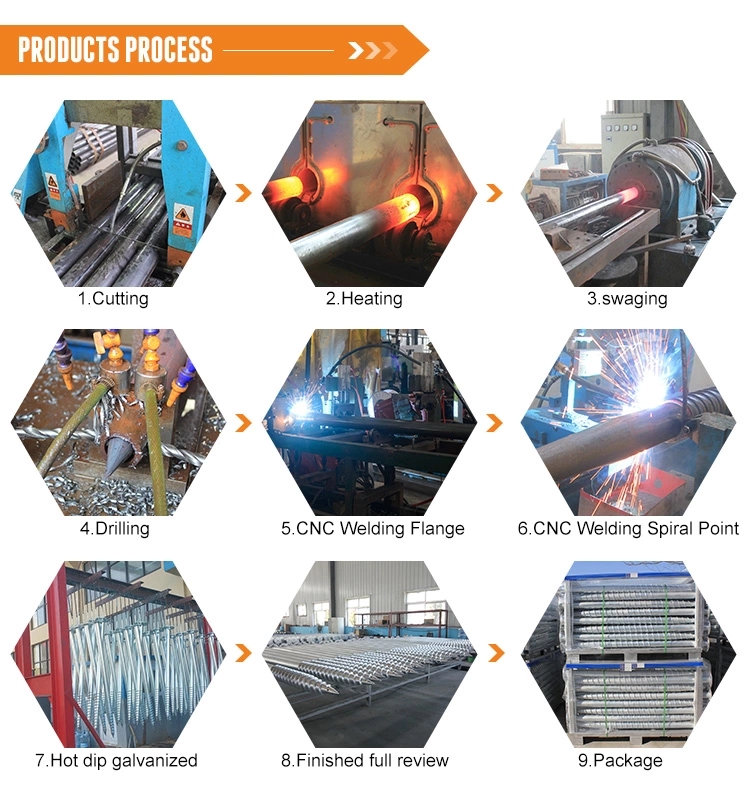

Production Chart : Cutting pipe length according to design, forming the pipe according to the design, welding nut, flange , blade and assemble, acid pickling and hot dip galvanized treatment , QC and packing, shipments .

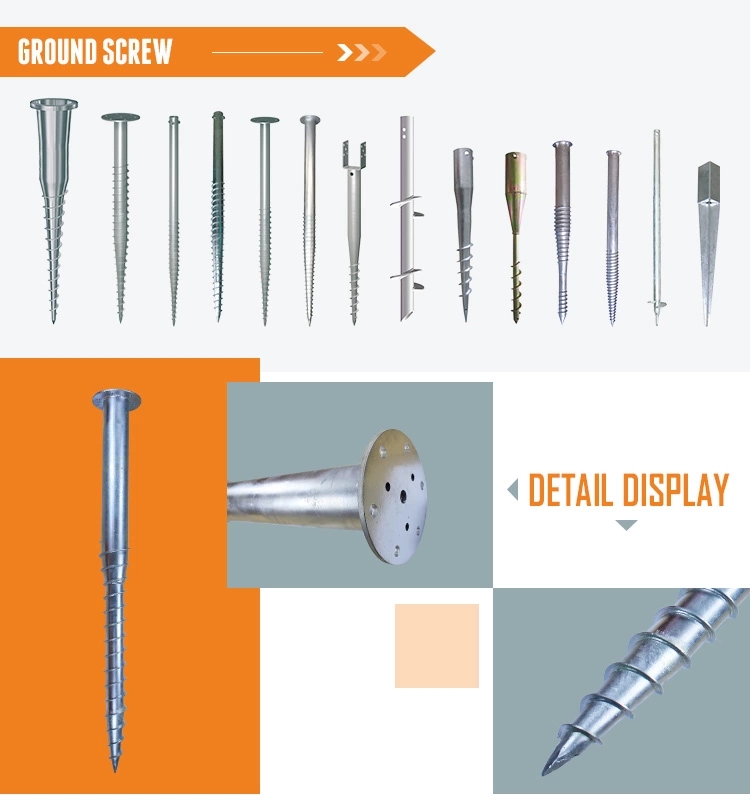

Size of Helix Ground Screw are like the below :
U 66*650
U 66*550-1*M 8
U 66*730-71 MM
U 66*730-91 MM
U 66*865-91 MM
U 66*865-111 MM
76*3*1000*200*8
76*3*1200*200*8
76*3*1500*200*8
76*3*1800*200*8
76*3*2000*200*8
76*3*2500*200*8
89*3.75*1200*200*8
89*3.75*1800*200*8
89*3.75*2000*200*8
114*4*1500*200*8
114*4*1800*200*8
114*4*2000*200*8
114*4*3000*200*8
