YANTAI PS foam plate/tray/box thermocol plate making machine

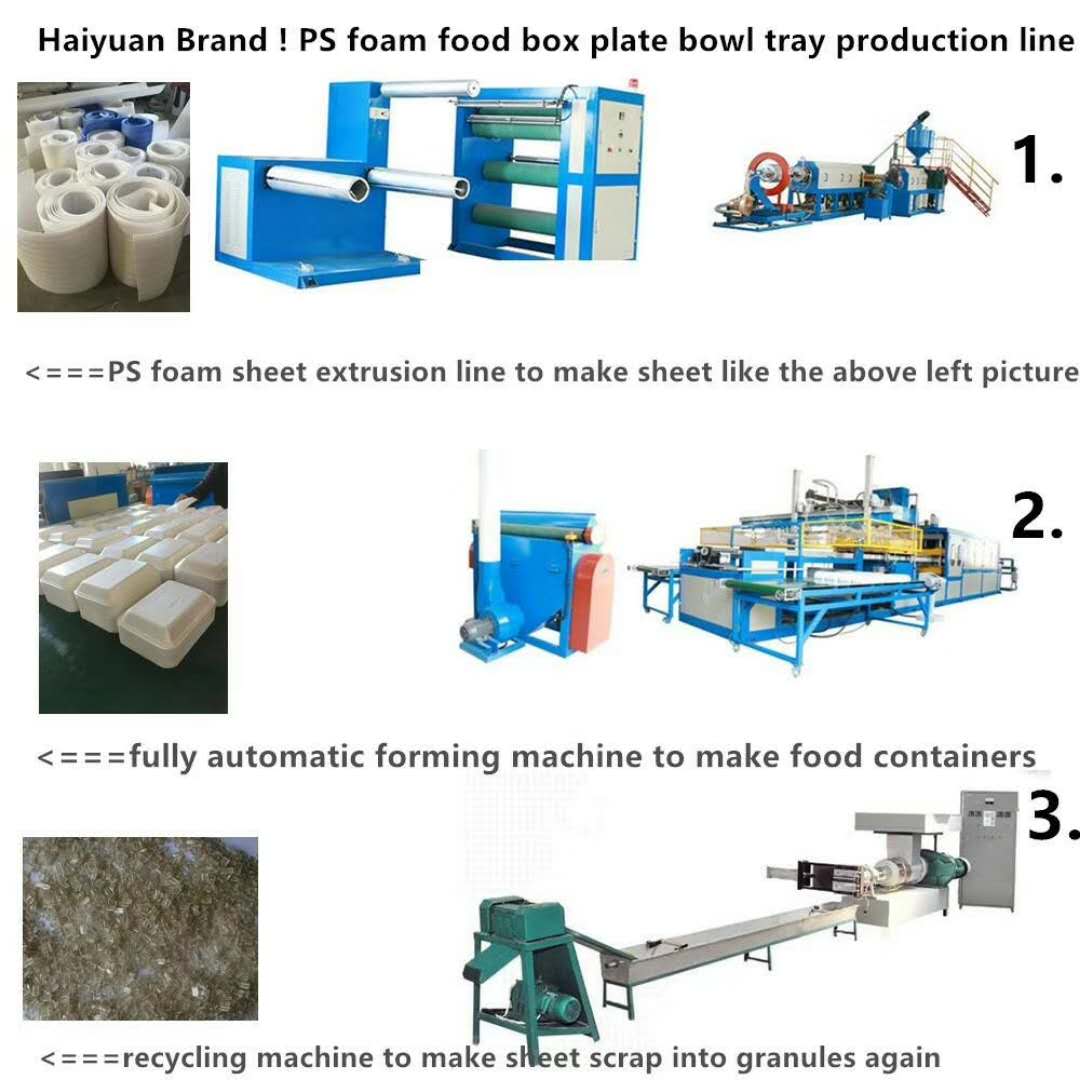

The whole production line includs three part

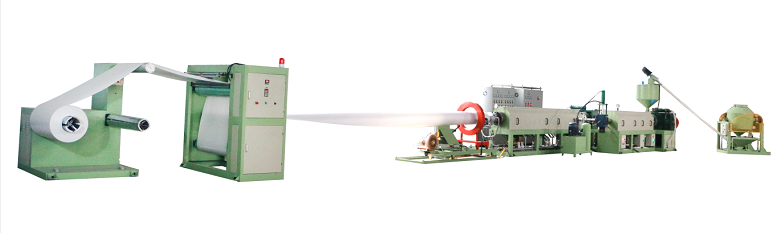

1.PS foam sheet extrusion line
PS Foam Sheet Extrusion Line adopts Gentian type double-stage series high foam technology. The raw material is genneral polystyrene granule. In the extruding processing, vesicant is injected at high pressure. After extruding, foaming cooling , shaping and hauling off, It is winding to finished PS foam sheet rolls.

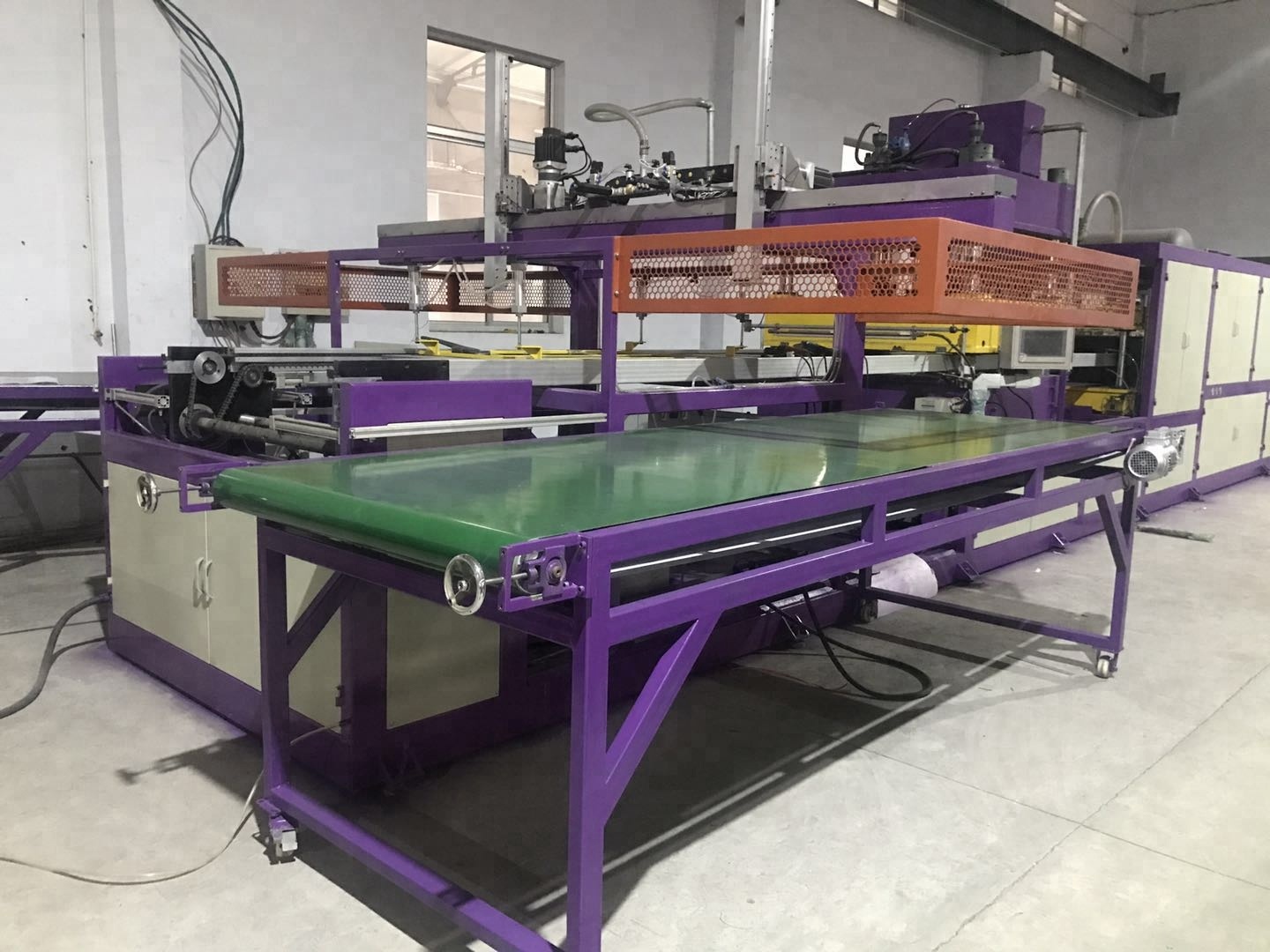

2. PS foam lunch box making machine
Double Worktables Fully foam lunch box vacuum forming machine integrate forming, cutting, Robot arm grab at the same time, also the foam products could come out automatically. It is vacuum forming as well as press forming and synthetically forming. It can be used for processing all kinds of plastic sheet. It adopts PLC controller and touch screen to control the working programmer. It is easy to operate and features high degree of automation.
The machine parameter of PS FOAM FOOD CONTAINE MACHINE:
| parameter | unit | HY-1100 | HY-1250 | HY-1400 |
| Forming area | mm | 1100*1100 | 1100*1250 | 1100*1400 |
| cutting off height | mm | 160 | ||
| production efficiency | s/die | 3-4 | ||
| installation dimension | m | 19*6*3 | 21*6*3 | 24*6*3 |
| installation power | kw | 150 | 160 | 180 |
| power supply | 3phase 380v 50Hz 3phase 220v 60Hz | |||

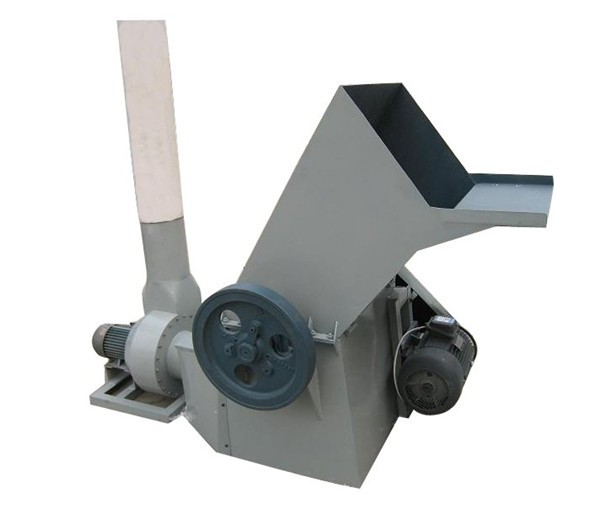

3. Crusher
This machine used to crush the left over material down from the vacuum forming machine

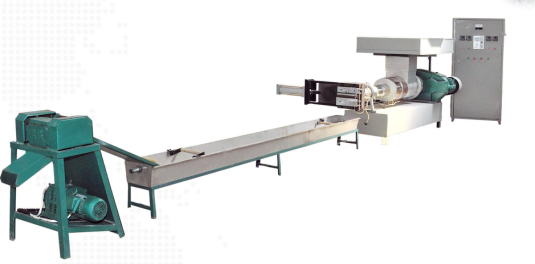

4. Recycling granulator
The machine for recycling crusing pieces into granules as kind of recycle material this kind of material could be put into extruder to make PS foam sheet

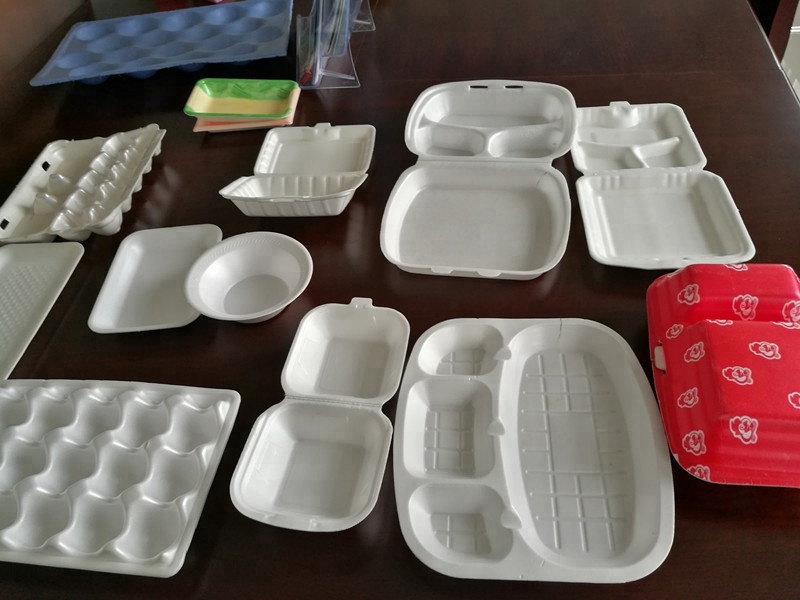

PS foam products:

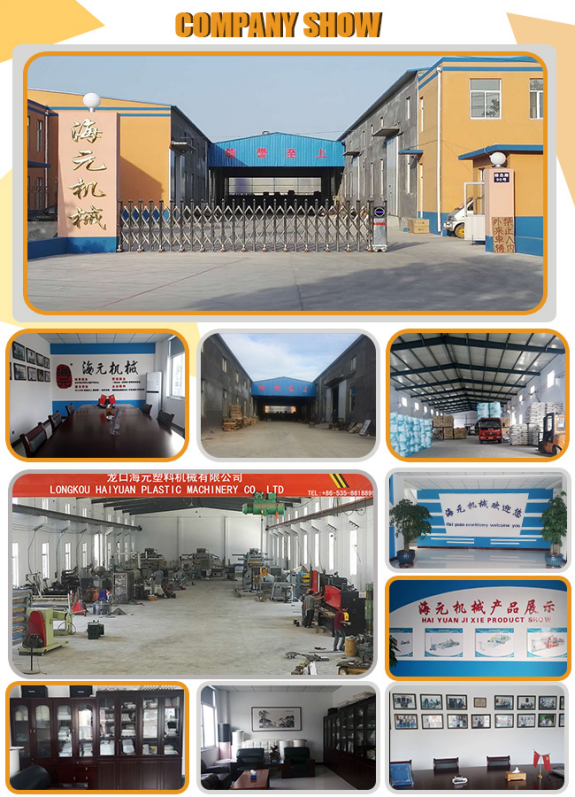

Longkou Haiyuan Plastic Machinery Co., Ltd founded in 1999 is a professional manufacturer in producing foam lunch box vacuum forming machine, PS/PE foam sheet extrusion line and so on. With strong technical strength and abundant experience, basis on advanced technology from domestic and abroad. Our machines are already exported to Russia, India, Egypt,Germany, Turkey, Malaysia and Thailand etc.
Successful orders
Contact us
Amy whatsapp:008613573511028
wechat:008613573511028
If you are interested in the product, contact 2bvideo.com for more information for more information
The information of 2bvideo.com limited shown above is provided by the user or collected on the network. Video 2B does not guarantee the authenticity,accuracy and legitimacy of 2bvideo.com limited information. Video 2B does not involve legal relationships and disputes between users arising from transactions other than secured transactions on this website. Disputes shall be settled by you through negotiation. If you are the person in charge or relevant employee of this enterprise, if you find that the enterprise information is incorrect or want to manage thiscompany, please contact us jacklee1558@gmail.com, after you claim the enterprise, you can obtain management permission, publish supplyand demand information, bring consulting orders, and remove page advertisements.
Main Product:
Foam Food Box Machine,
Foam Plate Making Machine,
PS Foam Sheet Extrusion Line,
PS Foam Absorbent Tray Making Machine,
PS Foam Food Container Production Line,
Thermocol Plate Making Machine
