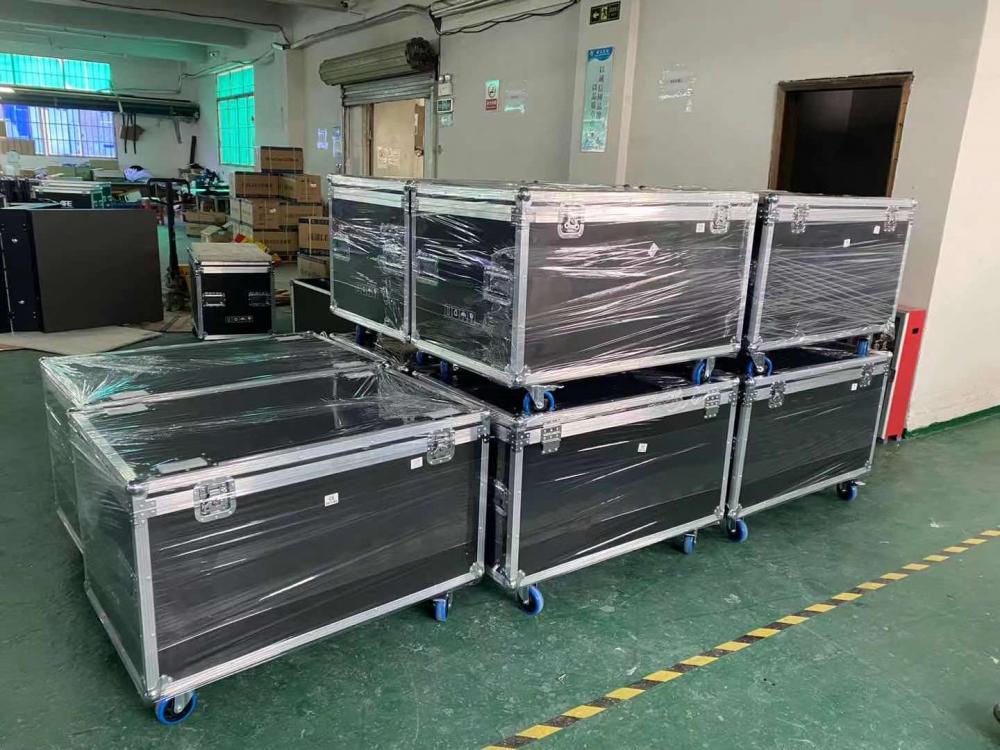

Flight case packing for LED screens is a popular method of transporting and protecting these delicate pieces of equipment. LED screens are used in a variety of settings, from concerts and festivals to corporate events and trade shows.
MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH3.91)
|
|
|||
|
（Technical parameters） |
UNIT |
（ parameters values ） |
|
|
（Pixel pitch） |
MM |
3.91 |
|
|
（Panel size） |
MM |
L250*H250*T13 |
|
|
（Physical density） |
/M2 |
65536 |
|
|
（Pixel configuration） |
R/G/B |
1,1,1 |
|
|
（Driving method） |
|
1/16 Constant current 1/16scan |
|
|
（LED Encapsulation） |
SMD |
2121 |
|
|
（Display resolution） |
DOTS |
64X64=4096 |
|
|
（Module weight） |
KG |
0.32 |
|
|
（Module port） |
|
HUB75 |
|
|
（Module working voltage） |
VDC |
5 |
|
|
（Module consumption ） |
W |
21 |
|
|
|
|||
|
（Viewing angle） |
Deg. |
140 |
|
|
（Option distance） |
M |
3-50 |
|
|
（Driving device） |
|
IC:1065s |
|
|
（Every square metre module） |
PCS |
16 |
|
|
（Maximum power） |
W/ M2 |
340 |
|
|
（Frame Frequency） |
HZ/S |
≥60 |
|
|
（Refresh frequency） |
HZ/S |
7680Hz |
|
|
（Equilibrium brightness） |
CD/ M2 |
≥1200-1500mcd |
|
|
（Working environment temperature） |
0C |
-10~60 |
|
|
（Working environment humidity） |
RH |
10%～70% |
|
|
（Display working voltage） |
VAC |
AC46～54HZ，220V±15%/110V±15% |
|
|
（Colour temperature） |
|
8500K-11500K |
|
|
（Gray scale/color） |
|
≥16.7M color |
|
|
（Input signal） |
|
RF\ S-Video\ RGB etc |
|
|
（Control system） |
|
NovaStar Linsn Color Light |
|
|
（Mean free error time） |
HOURS |
＞5000 |
|
|
（Life） |
HOURS |
100000 |
|
|
（Lamp failure frequency） |
|
＜0.0001 |
|
|
（Antijam） |
|
IEC801 |
|
|
（Safety） |
|
GB4793 |
|
|
（Resist the electricity） |
|
1500V last 1min No breakdown |
|
|
（IP rating） |
|
The back IP40，The front IP50 |
|
|
（Steel box size） |
mm |
L500Xh500x80/L1000Xh500 |
|
