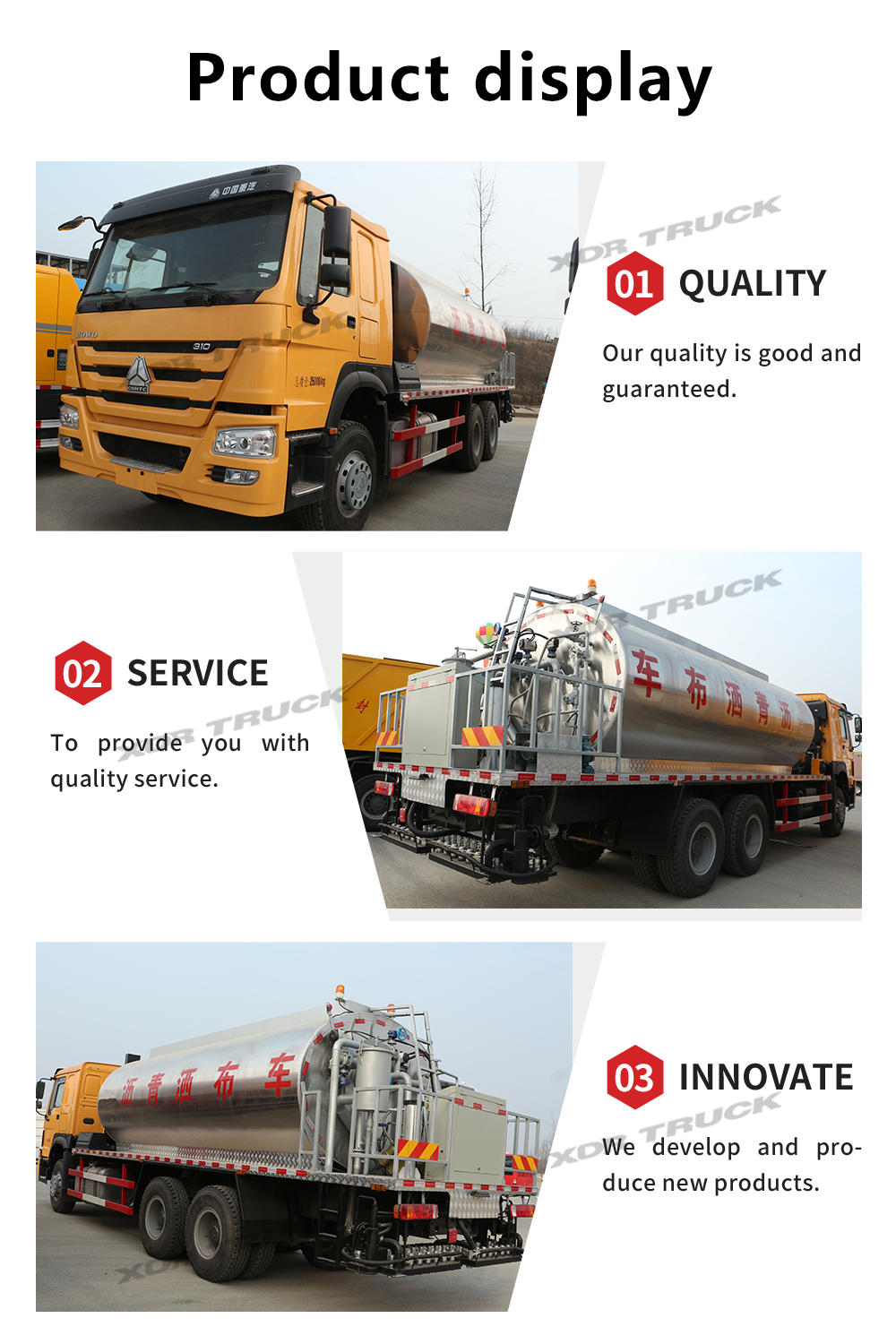

HOWO Asphalt Distributor Truck

HOWO Asphalt Distributor Truck

2 month ago

0 0

Hubei Xindongri Special Vehicle Co., Ltd.

 5 month year

Product details

The HOWO Asphalt Distributor Truck is a specialized piece of equipment used in road construction and maintenance.

1. Purpose:

It's designed to evenly distribute asphalt or other paving materials on roads during the road construction or resurfacing process.

2. Components:

- Asphalt tank with heating system

- Pump system for material distribution

- Nozzles for spreading the asphalt

- Control panel for operator adjustment

- Water tank and spray system for nozzle cleaning

3. Capacity: Typically ranges from 5,000 to 10,000 liters (1,320 to 2,640 gallons) depending on the model.

4. Power source: Usually diesel-powered, often utilizing the same engine as the truck chassis.

5. Brand: HOWO is a major Chinese truck manufacturer known for its heavy-duty vehicles.

6. Customization: Can be configured with different numbers of nozzles and spray patterns to suit specific job requirements.

7. Operator comfort: Modern versions often include air-conditioned cabs and ergonomic controls.

8. Mobility: Designed for off-road use on construction sites.

9. Maintenance: Regular servicing is required to keep the pump systems and nozzles functioning properly.

10. Applications: Widely used in highway departments, paving companies, and road construction projects.

This truck plays a crucial role in ensuring even distribution of asphalt, which is essential for creating smooth and durable road surfaces.

HOWO 10CBM Asphalt Distributor Truck
Payment Term	30% T/T in advance,70% before shipment
Truck Condition	new
Warranty	12 months
Port of Delivering	Shanghai,Tianjing,Lianyungang,Guangzhou,China any port
Country of Origin	Hubei, China
Overall Dimension	8,000x2,600x3,250 mm
Cabin	HOWO cabin with AC
G.V.W/Curb weight	20,000/10,600 KGS
Max speed	95 km/h
Wheelbase	4,600 mm
Engine Model	WD615.62/266hp/196KW/9,726 ml
Fuel	Diesel Euro 5
Transmission	HW15710/Manual 10+2 gears
Brake	Air brake
Steering	Power assisted
Tire	12R22.5/6+1 pcs
Tank Capacity	10 cbm
Tank Material	Q245 carbon steel/5mm
Spraying medium	emulsified asphalt, hot asphalt, modified asphalt, modified emulsified asphalt
Asphalt Pump	With High viscosity asphalt insulation pump with hydraulic motor
Hydraulic pump	F563 Aluminum alloy gear pump
Hydraulic system	USA brand proportional flow control valve YZR-2MDKZ100A.00
Burner	Riyalu G20 imported from Italy
Heating method	The tank and pipeline are heated with thermal oil throughout the entire process
Temperature control	Temperature controller
Spraying width	1.2-4.5 M, three overlapping spraying, spraying 0.2-2kg/m ², 28 sets of stainless steel fully electronic control cylinders and pure copper nozzles,manual knob controls the spraying amount
Generator	Gasoline 5500w
Radiator	With radiator
level gauge	Install a floating ball level gauge inside the tank
Metal thermometer	Metal thermometer installed on the exterior of the tank
Remarks	Equipped with circulation and pump in/pump out functions, compressed air cleaning function for asphalt pipelines, and diesel cleaning function
On-board accessories	English version vehicle instructions, maintenance manual,operation video
