PC Type 2835 SMD LED with 570nm

2 month ago

1 0

Shenzhen Best LED Opto-electronic Co.,Ltd / BESTSMD CO LIMITED(HK)

 8 year year

Product details

PC type of SMD LED is a SMD LED uses a phosphor coating to conver the light emitted by the LED chip into different color, typically white. Due to it's high efficiency, compact size, color consistency and long lifespan, most of people will use it as red SMD LED, cyan LED, Amber LED ect. So when we see the picture, we will know there are kind of PC type of SMD LED because the LED surface covered by yellow phosphor lens on the top. Which shows the yellow color lens as appearance. After we pass through the current to this 2835 SMD LED, it will offer with a super bright 570nm LED indication color for your project. Compare with common yellow-green 560nm LED 570nm LED, this LED will got much more higher brightness, which can reach 85-95lm on 150mA and higher voltage range on 2.8-3.4V. If you looking for some yellow green color LED with super bright color in your project, contact us for more information about that!

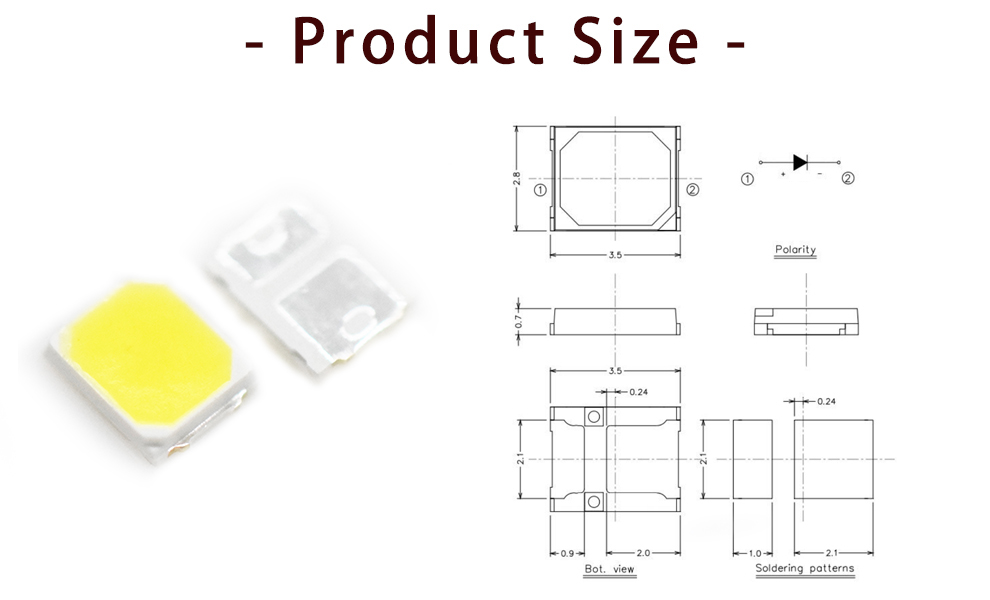

2835 SMD LED size:

Electrical Optical Characteristics:

Parameter	Symbol	Rating	Unit
Forward Current	IF	20	mA
Forward Voltage	V	2.8-3.4	v
Luminous Intensity	IV	85-95	lm
Wavelength	λD	568-572	nm
Viewing angle	2θ1/2	120	deg

*Luminous Intensity is measured ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of device.
