The ESM series products are make of aluminum-plastic, light and convenient, it can be operated by one hand, with sensitive control of air intake. The handle can be flipped 90° and rotated infinitely 360°, which is very convenient for adjusting the length and width alignment when palletizing workpieces.
Operation

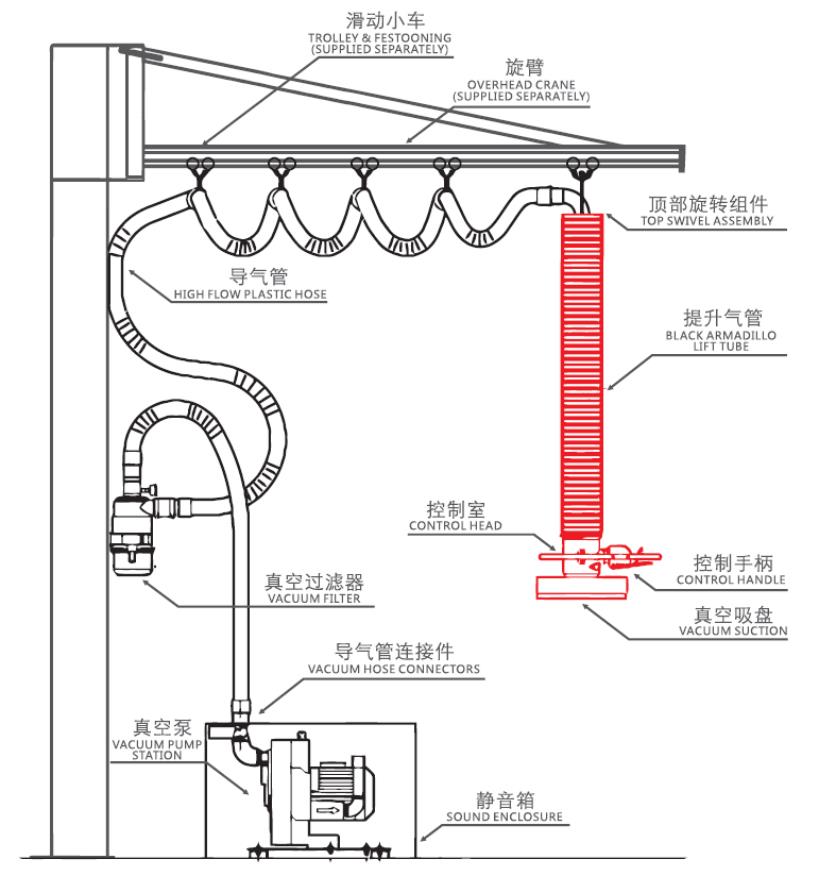

The turbine is connected to the lifting tube by suction hose. The item is picked up as soon as the suction cup comes into contact with it. The lift tube then contracts and the load’s weight is supported by the vacuum. It can then be moved effortlessly. The rotary or trigger type control is used to raise or lower the load.
Safety
The turbine is protected by a dust removal unit. In the event of power failure, an anti-drop check valve allows the item to drop slowly to the floor with no risk of slipping. If overloaded, the devise will not lift the load.
Optional installation
1.Bracket crane : 2 to 6 meters long, with wall mounting kit or column-mounted.
2.Travelling crane.
Application：
The Vacuum Tube lifter mainly apply in Agriculture,Chemical,Food ,Healthcare,Hardware industry and used for handling
carton box, Grabbing bags, Grabbing barrel or another items such as handling rubbers, lifting aluminum coil ect.And this
Vacuum Lifter machine also apply in mainframe case packing handling, water heater packing into carton ect, the Vacuum
lifter can suspense in Jib crane or Roof rail track and other crane.Usually ,it was used as a stacking machine to stack the
cartons and bags onto pallet from flow production line.
|
Model Type |
ESM35 |
ESM45 |
|
Max. load capacity |
35kg |
45kg |
|
Max. lifting height |
1700mm |
1700mm |
|
Vacuum System |
vacuum pump |
vacuum pump / blower |
|
Voltage |
380V/440V/660V |
380V/440V/660V |
|
Power |
2.2kw |
2.2kw |
|
Handling Item |
carton box barrel |
bag carton box barrel |
|
Suction head can be customized |
||
About us
Guangzhou Cowest Machinery Equipment Ltd was established in 2008,which is a professional Vacuum handling equipment research and development, production, sales and service in one manufacturing enterprise. Our products are used in many industries such as Construction, Glass manufacturing, Chemical industry, Pharmaceutical industry, and food industry, and are exported to Europe, America, the Middle East, Southeast Asia and other regions around the world.
We have own R&D team and core product technology, and have obtained more than 30 product patents, including Movable Vacuum tube lifter with Fold Crane, Glass installation Robot, Stone Road installation manipulator ect. These products are one of the best in the world, and they are used in many famous enterprises and projects: Dunlop Tires, Nescafe, Brother Printer, IBM, Lipan Paint, Kohler and other products of the production line handling palletizing. Our products also participated in many famous large-scale construction projects for Glass installation .such as the glass installation projects of Beijing Library, Guangzhou Tower,Hong Kong Pacific Place,the United States Metropolis and Beijing Airport ,etc.In addition, we also cooperate with many famous construction machinery giant enterprises: Manitou, Zoomlion, Zhejiang Dingli, Sany Machinery, XCMG Group, etc. to provide technical support and accessory products.
Our company has always adhered to the philosophy of "only the best, the best in the industry", and has learned on a wide range of global technical expertise to create rock-solid product quality and safer, more personalised products that customers can buy with confidence and comfortable to use, making handling problems easy!
|
Packaging Detail: |
by Flexible Package, Seaworthy Package |
|
Delivery Time: |
15-30 days |
