Aquaspin pivot irrigation system

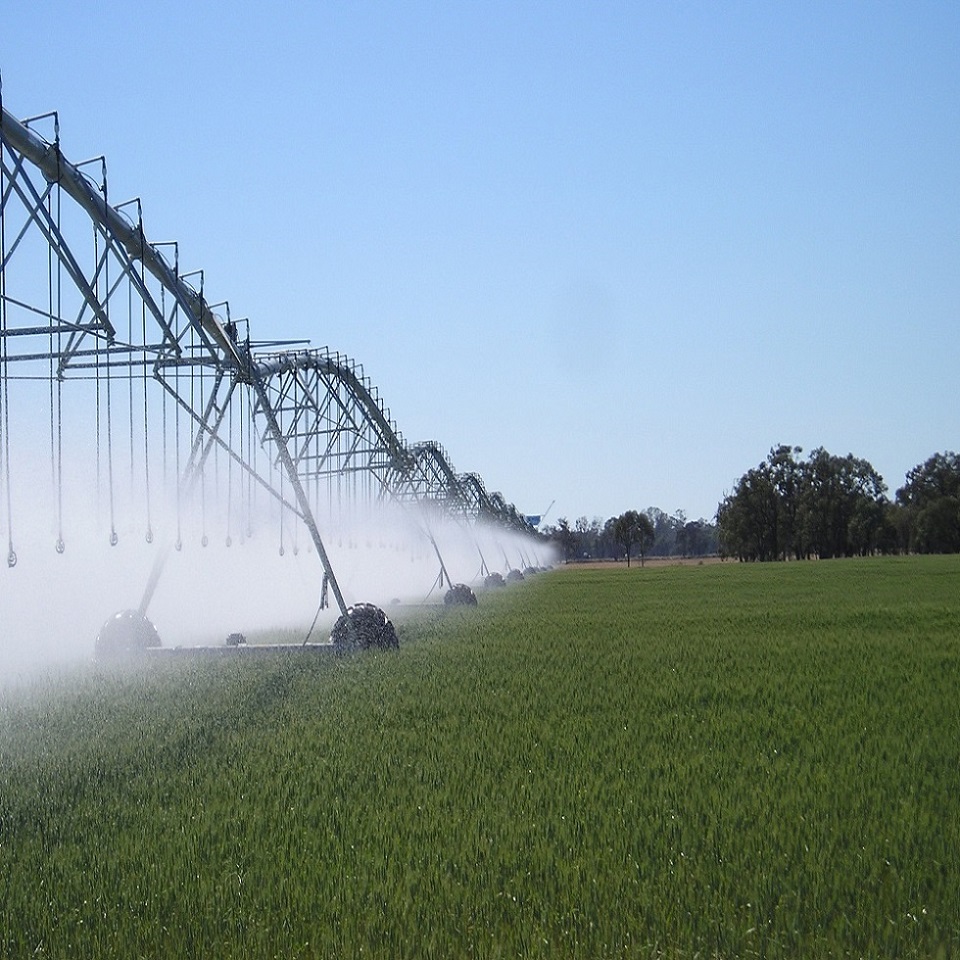

Aquaspin center pivot irrigation system is applicable mainly to large farm irrigation. It has advantages like economic efficiency, high irrigation rate, solid structure, durability and easy operation. A multi-span system runs around its fixed center tower and irrigates the earth within its coverage. Diameter of the irrigation circle can reach 1200 meters with maximum number of longest spans.
|
Name |
Position |
Data |
|
Main data |

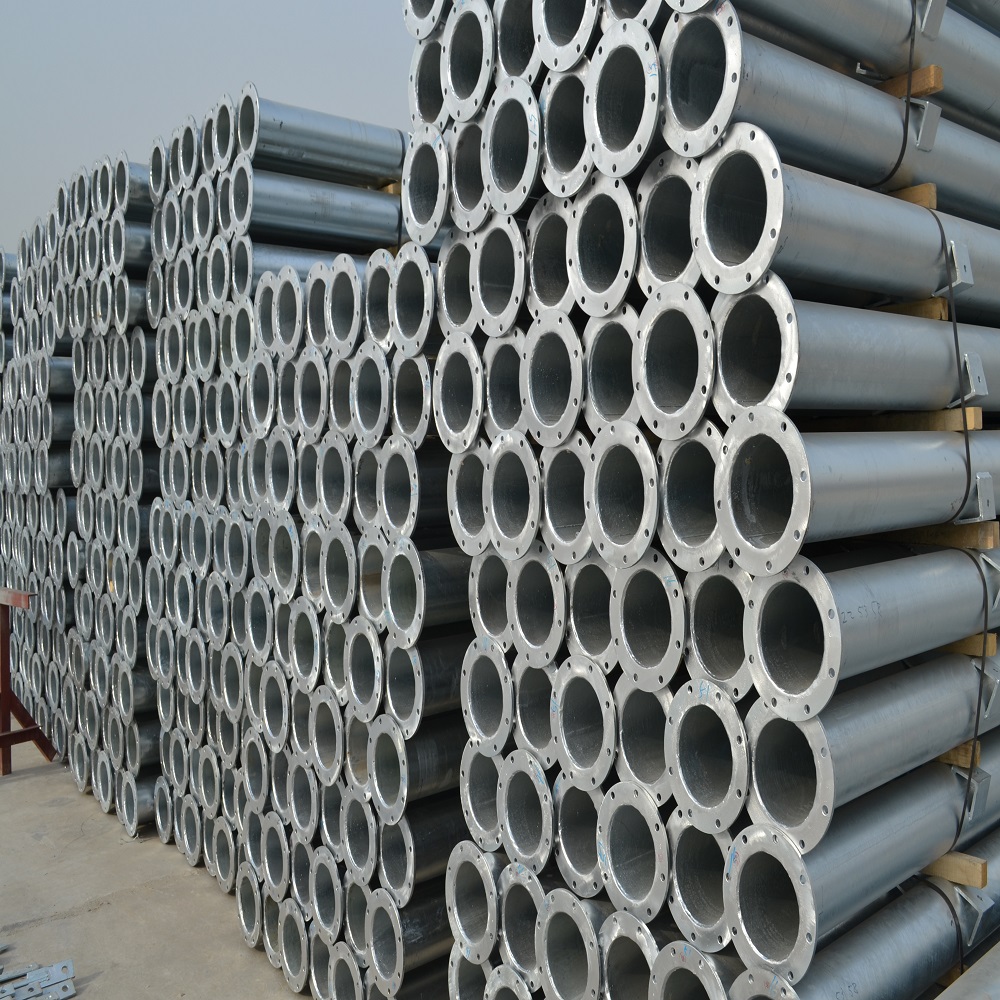

Outer diameter of main pipe |
168mm,203mm, 219mm the raw material is chosen standard steel, Q235B |
|
Thickness of the main pipe |
3.0mm, the thinnest thickness of pipe is no less than 2.9mm |
|
|
Surface treatment of main parts |
Hot-galvanized steel, anti-corrosion for 10 years |
|
|
Thickness of the main pipe flange |
10mm |
|
|
Flange bolts |
8 bolts (carton steel of 8.8 class, cold galvanized) |
|
|
Connection among spans |
Flexible connection; sealed with rubber; (main material: EPDM , tailored, service life 7 years, as shown in the following:
|
|
|
Height |
3.1m, high clearance than other suppliers’ products |
|
|
Tire |
14.9-24：American standard, outer dia. 1.26 meters, width 0.38 meters, supplied by chosen supplier especially for Austria BAUER. |
|
|
Grade ability |
No more than 12 degrees |
|
|
Motor and gear box |
Imported UMC or from chosen supplier especially for Austria BAUER. Cover of aluminum, double seal of outer shaft, standard rotation speed of motor:43r/min（460V）,35r/min（380V） |
|
|
Insulation |
≥F |
|
|
Driving wheel |
V design as follows |
|
|
Sprinkling system |
Uniform irrigation |
Uniform irrigation≥88％ |
|
Distance between sprinklers |
2.9 meters, of equal distance |
|
|
Model of sprinkler |
Imported, low-pressure, wind-proof, with pressure regulator, and sprayer NELSON D3000/R3000.komet |
|
|
Pressure regulator |
Equip one pressure regulator for each sprayer |
|
|
Height of sprayer |
≥1.5m |
|
|
Balance weight |
≥1.2kg |
|
|
End gun and booster pump |
Equipped |
