High energy 660nm red solid state LD pumped Q-switched laser has the features of high peak power, high repetition rate, and short pulse duration, which is widely used in laser measurement, scientific research, military,and so on. Its central wavelength is 660±1nm and the average power is between 50w and 100w. Besides, the warm-up time is less than 10 minutes.The beam height from base plate is 55mm. The warranty period is within 1 year. The operating temperature is between 15-35℃. The peak power is 66kw and the power stability is between 3% and 5%.
As the leading manufacturer and supplier in China, CNI is dedicated to offer best quality lasers , laser systems, High power laser, optical measuring equipment, Single longitudinal mode laser, laser processing equipment, High energy laser,machine vision and the photoelectric detection equipment.
Wavelength (nm)
660±1
Operating mode
Acousto-Optics Q-switched
Average power (W)
50~100
Power stability (rms, over 4 hours)
<3%, <5%
Pulse duration (ns)
~150 @10kHz&100W
Rep. rate (kHz)
10~20 (It is possible to customize other repetition rates )
Beam divergence, full angle (mrad)
<3.5
Single pulse energy (mJ)
10 @10kHz&100W
Cooled method
Water Cooled
Beam diameter (mm)
≥15
Beam height from base plate (mm)
55
Peak power (kW)
66 @10kHz&100W
Operating temperature (℃)
10-35

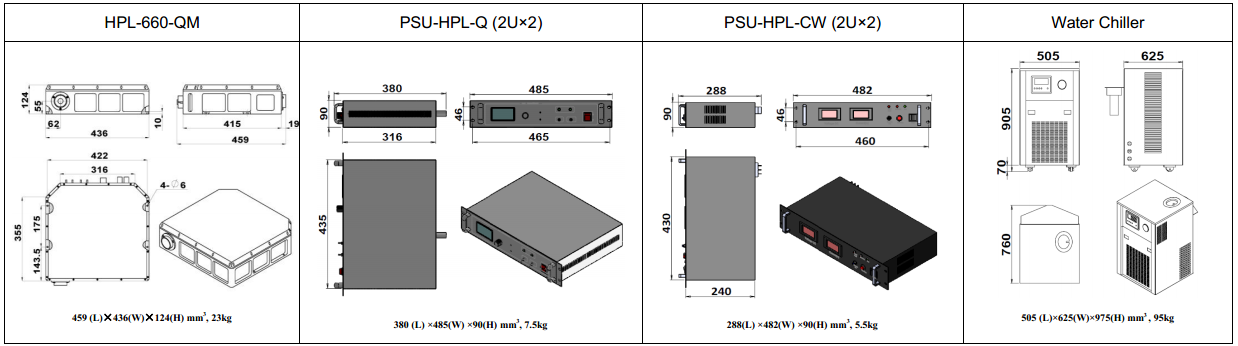

Power supply (220/110VAC)
PSU-HPL (2U×4)
Warranty period
1 year
Testing Data
Certification
Copmpany Information
Changchun New Industries (CNI), founded in 1996, located in Changchun, CHINA, is a manufacturer of solid-state and diode laser systems. CNI possesses accountable and dependable service as well as quality products with compact design, high reliability, good performance. The products are widely used for scientific research, equipment manufacturing, biomedical experiment, precision measurement, entertainment, radar communication, material processing, process control, online detection, investigation equipment and other fields.
