Product description
With the development of science, technology and industry, higher requirements have been put forward for materials, such as higher strength, resistance to high temperature, high pressure, low temperature, corrosion, wear and other special physical and chemical properties. Mild steel plate can no longer fully meet the requirements, so alloy steel plate have emerged.
The steel plates are divided into thin steel plates<4mm (the thinnest 0.2mm), thick steel plates 4~60mm, and extra thick steel plates 60~115mm.The steel plates are divided into hot rolled and cold rolled according to rolling. The width of the sheet is 500~1500 mm; The width of the thickness is 600~3000 mm. The thin plates are classified into ordinary steel, high-quality steel, alloy steel, spring steel, stainless steel, tool steel, heat-resistant steel, bearing steel, silicon steel andindustrial pure iron thin plates; According to professional purposes, there are oil barrel plates, enamel plates, bulletproof plates, etc; According to the surface coating, there are galvanized steel plate, tinned steel plate, lead plated sheet, plastic composite steel plate, etc.
The steel grade of thick steel plate is generally the same as that of thin steel plate. In all aspects of products, except for bridge steel plate, boiler steel plate, automobile manufacturing steel plate, pressure vessel steel plate and multi-layer high pressure vessel steel plate, which are all thick plates, some steel plates, such as automobile girder steel plate (2.5~10mm thick), checkered steel plate (2.5~8mm thick), stainless steel plate, heat resistant steel plate, etc., cross with thin plates.
Product specification
Product name
Mild steel plate
Surface
N0.1, N0.4, 2D, 2B, HL, BA, 6K, 8K, Mirror,etc
Material
Q195,Q215 A,Q215 B,Q235 A,Q235 B,Q235 C,
Payment term
L/C T/T
Packing
standard export package (Detailed picture is as follows)
Standard
DIN GB ISO JIS BA ANSI
Country of origin
China
Processing Service
Welding, Punching, Cutting, Bending, Decoiling
Tolerance
±1%
Supply Ability
100000 Tons / Month
Usage
Widely used inmechanical manufacture,construction field,farm vehicles,agriculture greenhouse,automotive
Q235D,Q275,Q275B,Q275C,Q275D,Q295,Q345,Q390,Q420, Q460,
SS330,SS400,SS490,SS540,A36,1,GR.36,50(245),55(380),42(290),
60(415),65(450),S185(1.0035),S235JO(1.0114), S235JR(1.0038),
S235J2(0.0117),S275JR(1.0044),S275JO(1.10143),S355JO(1.0553),
E295(1.0050),E335(1.0060), S235J2W(1.861),S355J2W(1.8965),10#,
15#20#
industry,railway,decoration,steel structure,etc.
Low Alloy High Strength Steel Plate |
A572GR.50, A572GR.60, SS490, SM490N/NL, S460N/NL, S355M/ML, S420M/ML, S460M/ML, S500Q/QL/QL1, S550Q/QL/QL1,S620Q/QL/QL1, S690Q/QL/QL1, S355G8+N, 350, 350L0, 350L15, Q345A, Q345B, Q345C, Q345D, Q345E, Q390A, Q390B, Q390C, Q390D, Q390E, Q420A, Q420B, Q420C, Q420D, Q420E, Q460C, Q460D, Q460E, Q500C, Q500D, Q500E, Q550C, Q550D, Q550E, Q20C, Q620D, Q620E, Q690C, Q690D, Q690E, 890D, Q890E,Q960D, Q960E, XGCFQ500D, XGCFQ500E. |
Low Alloy High Strength Steel Plate |
12Mn,15MnVN,16Mn,15MnV,14MnNb |
Q295(A,B),Q345(A,B,C,D,E)Q390(A,B,C,D,E), Q420(A,B,C,D,E),Q460(C,D,E) |
|
Q500(D,E),Q550(D,E),Q620(D,E),Q690(D,E) |
|
SM490(A,B,C),SM490Y(A,B),SM520(B,C),SM570 |
|
St44-3,St52-3,St50-2, St60-2,St70-2 |
|
StE315,StE355,StE380,STe420,StE460,StE500 |
|
A572M(Gr42.50,60,65),A633M9(A,B,C,D,E) |
|
S275(JR,JO,J2G3,J2G4),S355(JR,JO,J2G3,J2G4,E395,E355,E360) |
|
S275N,S275NL,S355N,S355NL,S420N,S420NL,S460N,S460NL |
|
50(A,B,C,D,DD,EE,F),43(A,B,C,D,EE),55(C,EE,F) |
|
Fe430(A,B,C,D),Fe510(B,C,D) |
|
WH60,WH410LK(BB41BF),WH490LK(BB503),Q550CFC |
|
WDB690,WDB780,WH70,WH80 IE0650,IE1006,SHT60 |
|
Alloy Structure Steel Plate |
15CrMo,20CrMo,30CrMo,35CrMo,20Cr, 40Cr,20Mn2,40Mn2,20CrMnMo,12Cr1MoV,20MnSi 30CrMnSiA,12CrMoVNi(RQ65),50Mn2V,42CrMo 25CrMo4,34CrMo4,42CrMo4 |
Standard |
ASTM EN DIN GB ISO JIS BA ANSI |
ASTM A36 |
A36/A36-B |
ASTM A283 |
A283-B/A283C |
ASTM A516 |
A516Gr70 |
JIS G 3101 |
SS400-B |
JIS G3136 |
SN400B |
Item |
Material |
Thickness (mm) |
Width(mm) |
Length(mm) |
MS Hot Rolled Steel Plate |
Q235 SS400 A36 |
6-25 |
1500-2500 |
4000-12000 |
EN10025 HR Steel Plate |
S275 / S275JR ,S355/S355 JR |
6-30 |
1500-2500 |
4000-12000 |
Boiler Steel Plate |
Q245R , Q345R A516 Gr.60 , A516 Gr.70 |
6-40 |
1500-2200 |
4000-12000 |
Bridge Steel Plate |
Q235, Q345, Q370, Q420 |
1.5-40 |
1500-2200 |
4000-12000 |

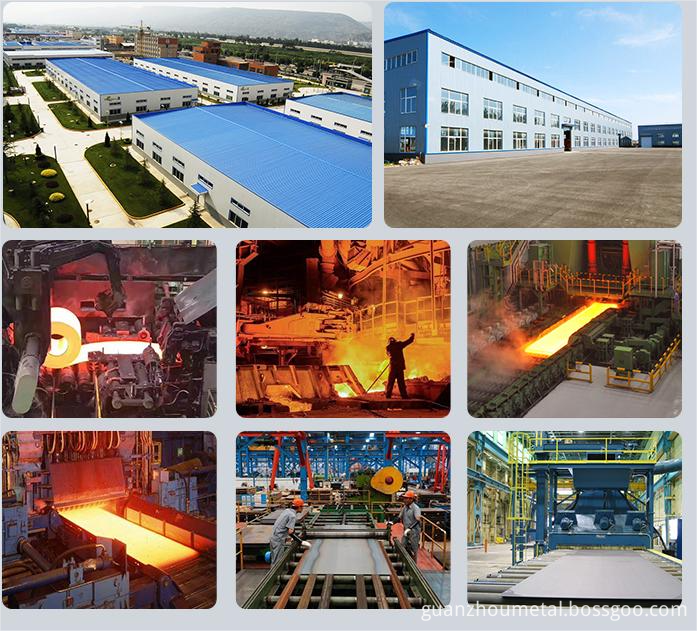

Our Factory
We provide steel plate, steel sheet, steel pipe,seamless steel pipe and tube, round bars and steel section, and doing steel products processing service: steel plate and sheet processing service. The processing works concludes cutting the larger plate into the small sizes customer demand, cut by drawing, cut to special sizes, weld the cut parts by drawing, also make galvanizing processing or surface painting on the final processed parts; steel pipe hollow bar cutting and lathe processing to make the outer diameter and wall thickness to meet customers requirement, also make heat treatment for hollow bars and pipes. Has large stocks for the carbon steel and low alloy steel plates and sheets, especially have the thick plate and heavy plates on stock, also can provide the special material and large size steel plates, boiler and pressure vessel steel plate, marine steel plate, hot rolled steel plate for new production.

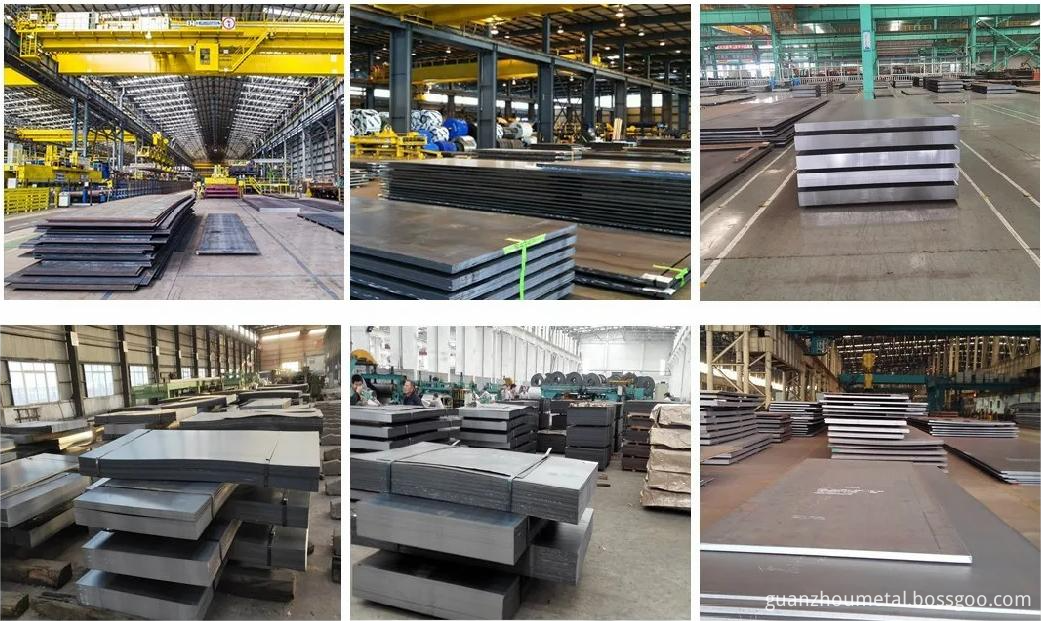

Product display
Application industry
Packaging and transportation
FAQ
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:What are the shipping ports?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:How long does your delivery time take?
A:In general, our delivery time is within 15-40 days, and may be delayed if the demand is extremely large or special circumstances occur.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.
