Product Description
That is atmospheric corrosion resistant steel, It is a series of low alloy steels between ordinary steel and stainless plate. Weathering steel plate is made of common carbon steel with a small amount of corrosion resistant elements such as copper, nickel, etc. Deformation, forming, welding, abrasion, high temperature, anti-fatigue and other characteristics.
Weather resistance is 2 to 8 times that of ordinary carbon steel, and coating performance is 1.5 to 10 times that of ordinary carbon steel. At the same time, it has rust resistance, so that the components anti-corrosion and prolong life, thinning and reducing consumption, saving energy and other features.
The strength and toughness of the steel plate are very large, and the thickness limitation when shaping is also small. This feature makes the division of the space more clear and accurate, and the whole space is concise and lively at the same time full of power. Weathering steels are mainly used for steel structures used in the atmosphere, such as railways, vehicles, bridges, towers, photovoltaics, and high-speed engineering.
It is used in the manufacture of containers, railroad vehicles, oil derricks, seaport buildings, oil production platforms, and chemical and petroleum equipment containing structural components such as hydrogen sulfide corrosive media.
Our company produces a variety of steel plate products, such as wear resistant plate, galvanized plate, etc., welcome to order.
Product Details
|
Standard |
AiSi, ASTM, BS, DIN, GB, JIS |
|
Grade |
Q235NH,Q295NH,Q355NH,Q415NH,Q460NH,Q500NH,Q550NH,Q265GNH,Q295GNH,Q310GNH,Q355GNHL SMA490CW,SMA490AP,SPA-H,SPA-C |
|
Thickness |
3-100mm or as required |
|
Width |
200-3000mm or as required |
|
Length |
1000-6000mm or as required |
|
Technique |
Hot Rolled / Cold Rolled |
|
Packaging |
Export sea-worthy packing or with customers’ request |
|
Processing service |
Bending, Welding, Decoiling, Cutting, Punching, Sullcoating |
|
Application |
Automobile, Bridges, Buildings |
|
Surface treatment |
Rusty or as required |
|
Capacity |
500Tons/ week |
|
Trade Term |
EXW, FOB,CIF,CFR |
|
Grade |
C |
Si |
Mn |
P |
S |
Cu |
Cr |
Ni |
|
Cor-ten A |
0.12 |
0.25-0.75 |
0.20-0.50 |
0.01-0.2 |
0.03 |
0.25-0.55 |
0.5-1.25 |
0.65 |
|
Cor-ten B |
0.16 |
0.3-0.5 |
0.8-1.25 |
0.03 |
0.03 |
0.25-0.40 |
0.4-0.65 |
≤0.4 |
|
SPA-H |
0.12 |
0.2-0.75 |
0.60 |
0.07-0.15 |
0.035 |
0.25-0.55 |
0.3-1.25 |
0.65 |
|
9CuPCrNi-A |
0.12 |
0.2-0.75 |
0.20-0.50 |
0.07-0.15 |
0.040 |
0.25-0.55 |
0.3-1.25 |
0.65 |
|
Q235NH |
0.13
|
0.10-0.40 |
0.20-0.60 |
0.03 |
0.030 |
0.25-0.55 |
0.40-0.80 |
0.65 |
|
Q295NH |
0.15
|
0.10-0.50 |
0.30-1.00 |
0.03 |
0.030 |
0.25-0.55 |
0.40-0.80 |
0.65 |
|
Q355NH |
0.16
|
0.5 |
0.50-1.50 |
0.03 |
0.030 |
0.25-0.55 |
0.40-0.80 |
0.65 |
|
Q415NH |
0.12
|
0.65 |
1.10 |
0.025 |
0.030 |
0.20-0.55 |
0.30-1.25 |
0.12-0.65 |
|
Q460NH |
0.12
|
0.65 |
1.50 |
0.025 |
0.030 |
0.20-0.55 |
0.30-1.25 |
0.12-0.65 |
|
Q500NH |
0.12
|
0.65 |
2.0 |
0.025 |
0.030 |
0.20-0.55 |
0.30-1.25 |
0.12-0.65 |
|
Q550NH |
0.12 |
0.65 |
2.0 |
0.025 |
0.030 |
0.20-0.55 |
0.30-1.25 |
0.12-0.65 |
|
Q265GNH |
0.12
|
0.10-0.40 |
0.20-0.50 |
0.07-0.12 |
0.020 |
0.2-0.45 |
0.30-0.65 |
0.25-0.50 |
|
Q295GNH |
0.12 |
0.10-0.40 |
0.20-0.50 |
0.07-0.12 |
0.020 |
0.25-0.45 |
0.30-0.65 |
0.25-0.50 |
|
Q310GNH |
0.12 |
0.25-0.75 |
0.20-0.50 |
0.07-0.12 |
0.020 |
0.25-0.55 |
0.30-1.25 |
0.65 |
|
Q355GNH |
0.12 |
0.20-0.75 |
1.00 |
0.07-0.15 |
0.020 |
0.25-0.55 |
0.30-1.25 |
0.65 |
|
Q345GNHL |
0.12 |
0.25-0.75 |
0.20-0.50 |
0.07-0.15 |
0.035 |
0.25-0.55 |
0.30-0.65 |
0.65 |

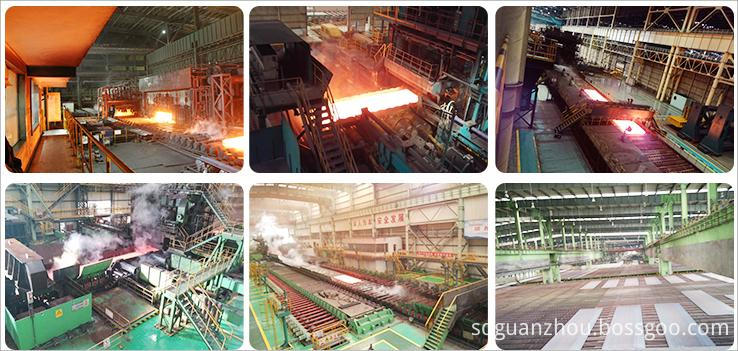

Production line

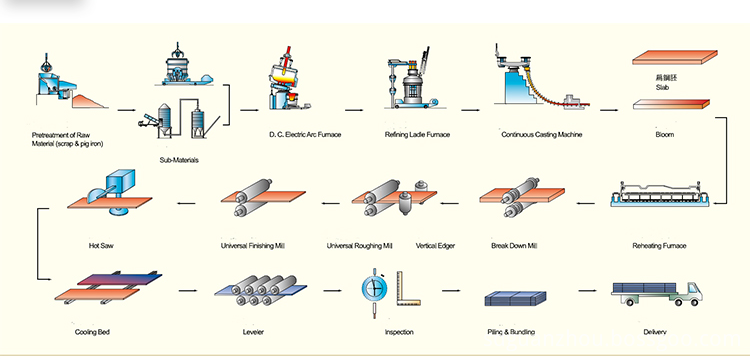

production process

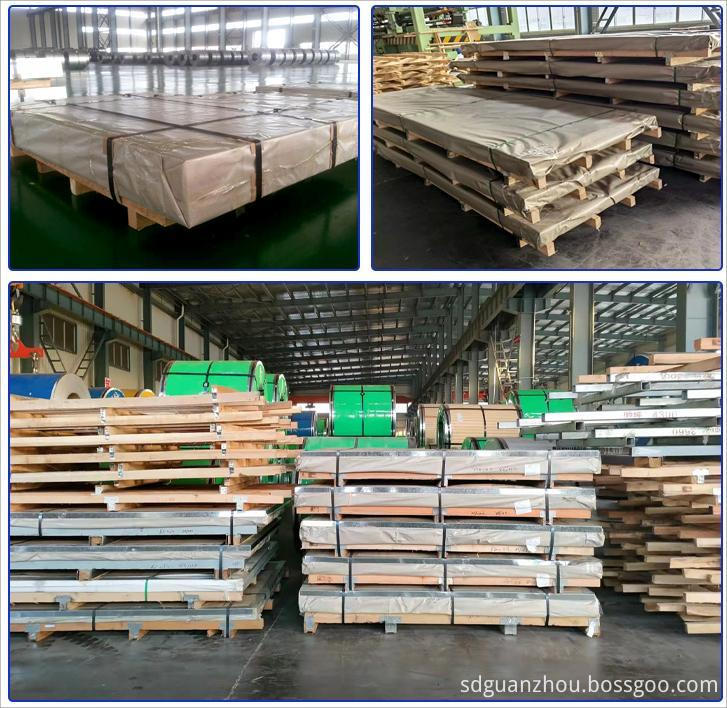

packing and transportation
