2019 Factory price Tubing Anchor for Oil field
1.Breif Intrduction
Our tubing anchor anchor the tubing string in a rod pumping well .The tubing anchor effectively reduce rod, tubing, and
casing wear. This cuts operating costs. Elimination of breathing and buckling of the tubing string also increases production
by lengthening the effective stroke of the pump, which increases volumetric efficiency. Based on proven technology, the Anchor uses hydraulically activated hold-down slips to provide an anchoring point for the tieback or workstring during stimulation operations. These tubing anchors
are the most economical and effective insurance you can buy against premature repairs and downtime.
2.Technical and Specification
|
Model |
Length (mm) |
Max OD (mm) |
Min ID (mm) |
Pressure(MPa) |
Max OD when teeth open |
Setting Pressure (MPa) |
Connecting Thread |
Casing ID to be used |
|
51/2" |
580 |
115 |
62 |
25 |
128 |
8-12 |
2-7/8 TBG |
121-124 |
|
7" |
660 |
150 |
76 |
25 |
168 |
8-12 |
3 1/2 TBG |
155-166 |
|
9 5/8" |
970 |
208 |
76 |
25 |
245 |
8-12 |
3 1/2 TBG |
218-240 |
|
9 5/8" |
970 |
208 |
98 |
25 |
245 |
8-12 |
4 1/2 TBG |
218-240 |

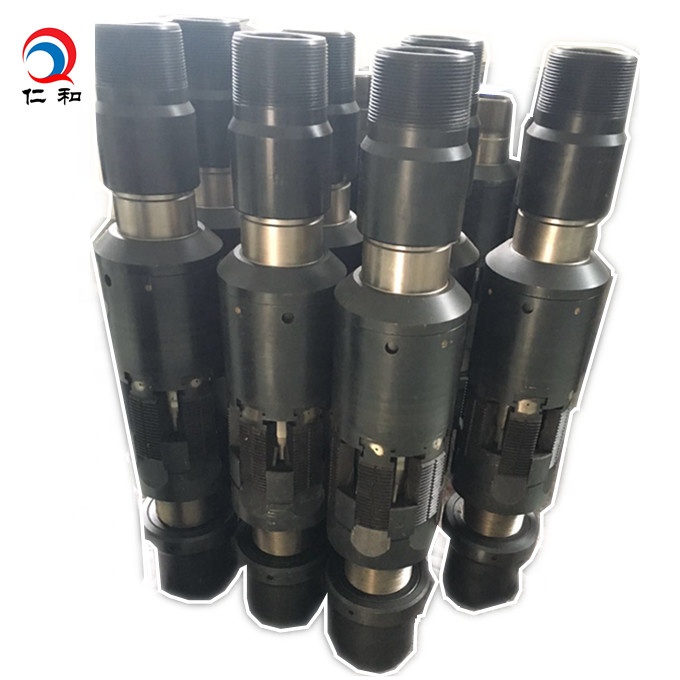

3 Product show
4 Our certifications
High quality petroleum machinery with competitive price OEM in China! welcome inquiry!
