Non-Rotating Sucker Rod Centralizer with spindle1

3 year ago
31 0
Product details

1.Non-Rotating Sucker Rod Centralizer with sipindle

Type

Centralizing Unit  I/D(inch)

Centralizing Unit O/D(inch)

KZL19

                   3/4"

                       2 7/8"

KZL22

                    7/8"

                       2 7/8"

KZL25

                      1"

                  2 7/8"(or3 1/2")


Sucker rods centralizers are made up of three components:

•Spindle

• Sleeve

• Rod Couplings

2. The major technical indicators

Centralizer body Rockwell hardness (HRC):   M85-M114

Centralizer body compressive strength:       60-90 MPa

Connect button type:                    3/4", 7/8", 1" rod buckle type

Maximum outside diameter:               3 1/2"

Total length:                            15"

Medium temperature:                     0-100 °C



3.Use principles

a.If it is little partial-wear well section, a set of this product will be installed on three sucker rods.

b.If it is less serious partial-wear well section, a set of this product will be installed on two sucker rods.

c.If it is serious partial-wear well section, a set of this product will be installed on a sucker rod.

d.If it is the most serious partial-wear well section (and the inflection point), in addition to installing a set of this product on a sucker rod, and then installing a nylon centralizer on the middle of the rod.

The photos

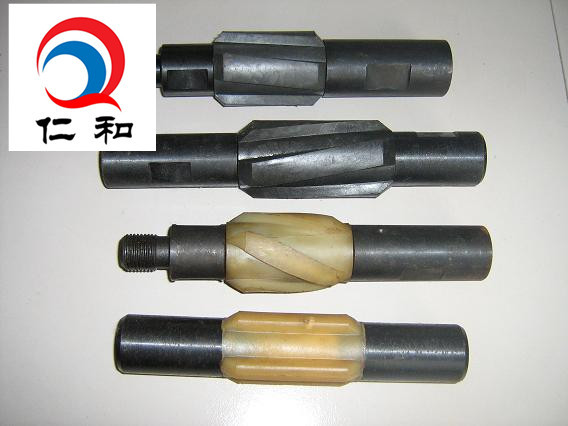

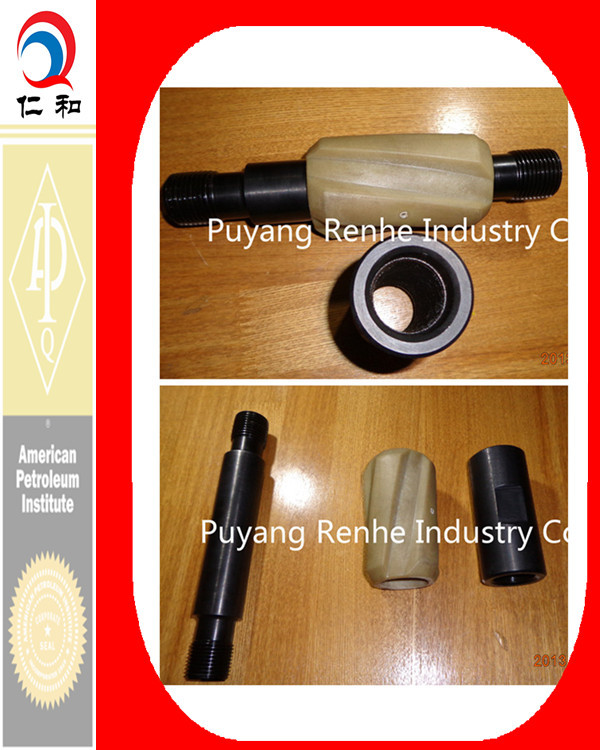

 Non-Rotating Sucker Rod Centralizer with spindleNon-Rotating Sucker Rod Centralizer with spindle

Api And Iso CertificationPhoto With CustomersFactoryPackage
