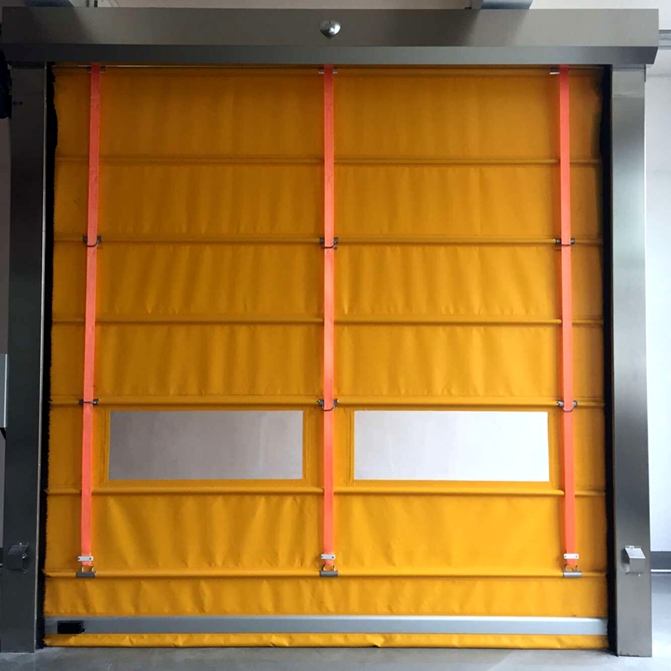

High speed stacking door
The quick stacking door has various functions such as heat preservation, cold preservation, insect proof, windproof, dustproof and soundproof. It is widely used in underground parking lots, industrial plants, food, textile, electronics, printing and packaging, automobile assembly, precision machinery, logistics and warehousing. It can meet high-performance logistics and cleaning workshops, save energy and improve air conditioning. High-speed automatic opening and closing, improve work efficiency and environmental quality. Fast stacking doors are suitable for larger doors and can withstand wind speeds above 10 degrees.
Technical classification
Technical Parameters
Door body
High-strength polyester fiber with soft epoxy resin on the surface
Degree of tear resistance
500N
Low temperature cracking temperature
-20 degree anti-corrosion, anti-ultrtaviolet; horizontal reinforcement rod strenthens the door body, wind pressure resistance 200N/m
Size range
4-10m wide and 4-10m high
Sealed and isolated
Anti-aging seal around the door, heat conduction system K=5w/m2°C
Noise attenuation
≤20dBA
Power and control
230V/400V, single or three phase, 50Hz
Power
0.75KW-4.0KW; manual, button, drawstring, remote control, photoelectric switch, metal detection and radar, etc.
Running speed and time control
Switching speed: 0.6-1.5 m / sec, closing time can be adjusted: 5-30 seconds
Safety protection
Safety protection device such as photoelectric switch, contact sensing edge and warning light
1. Air duct
The joint of the curtain is equipped with steel pipe or aluminum alloy wind and windproof strip to increase the wind resistance effect.
2. Ring
It is painted with galvanized steel and is beautiful, durable and wear resistant. Using advanced welding technology, the material is durable, not easy to desold, broken
3. Brush
The built-in brush on the guide rail can play the role of dustproof and sealed.
4. Perspective window
The middle is provided with a horizontal PVC transparent window with a thickness of 1.2mm, making it safer for vehicles and vehicles to enter and exit.
If you are interested in our product, please kindly contact me.
