Automatic Anti-static PVC Fabric high speed shutter door
Hong fa PVC high speed doors maximize energy savings by minimizing the amount of air exchange that can escape each time the doors open and close. Unlike traditional hard bi-parting doors, flexible door and other roll-up doors have the ability to withstand forklift impact and snap right back into their tracks. This is a huge benefit in a warehouse space, where damaged doors can mean significant expenses in terms of downtime and service calls, as well as energy loss.
PVC High Speed Door Features:
1. High speed door opening and closing
The running speed can reach 2m/s, 10 times as traditional roller shutter door. This obviously improves passing efficiency through it and enhances overall output.
2. High frequency operation
The operation frequency can reach more than 1000 times per day without any faults. This meets need of heavy traffic in some areas.

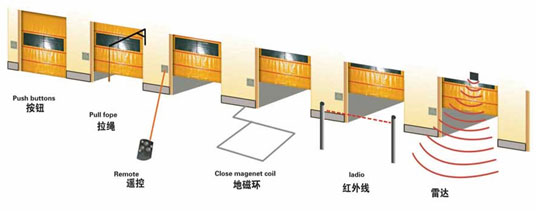

3. High-level automation
Automatic radar or other devices can be equipped, realizing auto control of the oor. This enhances automation level and work efficiency.
4. Excellent safety performance
Dual protection design. Every door is equipped with safety photo sensor and proximity sensor, avoiding collision accidents and protecting passing human or vehicles
5. Effective insulation
Benefiting from fast opening and closing, it can reduce the air flow between indoor and outdoor and prevent dust from entering the room. At the same time, energy is saved by reducing thermal conduction.
6. Complying with Food-grade and GMP norm
Special design seal structure. PVC fabric is dust-proof and easy for cleaning.
7. Multiple safety protection
Safety photo sensor. When there is human or vehicle under the door, the door will stop closing and get up automatically. This will avoid accident collisions.
8. Convenient daily operation
Standard: Operation buttons of both outside and inside.

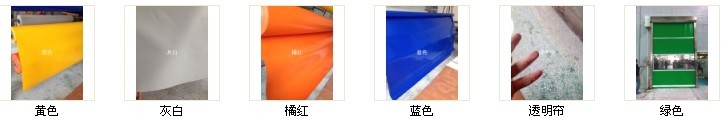

Different and abundant of the door fabric curtain colors for you reference:
Product role:
High Speed Door Product details:
Door material
The door frame material is 2.0mm thick cold-rolled steel plate structure, which is processed by hemming processing and high-quality baking paint process, and the color can be selected.
Power performance
Special brake brake motor, power 0.55-1.5KW, power supply 220V/380V, brake voltage 220V.
Control system
Microcomputer variable frequency control electric box.
Opening speed
1.5-0.8m/s (frequency conversion adjustable speed)
Curtain material
High-density PVC coated hot-melt fabric, material thickness 1.0mm-1.2mm, multi-color optional.

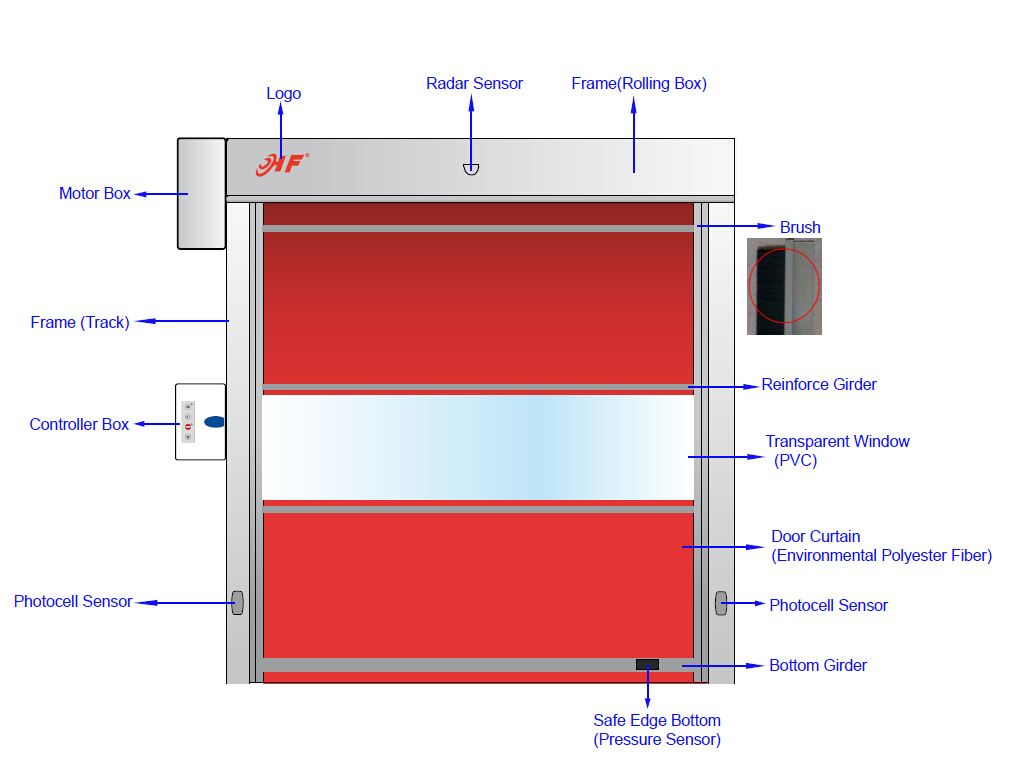

Advantages: (Please see as the following pictures)
-1.Radar induction: induction height of 4 meters, adjustable sensitivity, adjustable sensing diatance
-2. Servo motor: samll size, low noise, light weight, high strength, fast speed, smooth operation, safe and stable, precise control
-3. Servo control box: Microcomputer control system, can be displayed in English, and all the door operation parameters.
-4 Safe optoelectronics: the lower part of the door to install the infrared protection switch (South Korea Autonics), the door under the people and animals, the door immedistely open
-5. Material:french industrial polyester fiber fabric, high strength green polyester fiber, double-sided ethylene coating
-6. Anti-wind bar: polyester fiber base cloth connected parts with steel pipe or aluminum alloy wind to enhance the wind effect.
-7. Stainless steel material: corrosion resistance, formability, compatibility, strength and toughness and so on
FAQ
Q1. How many workers in the factory?
A: Normally 1set,but we also support a small quantity if you can accept a higher price.
