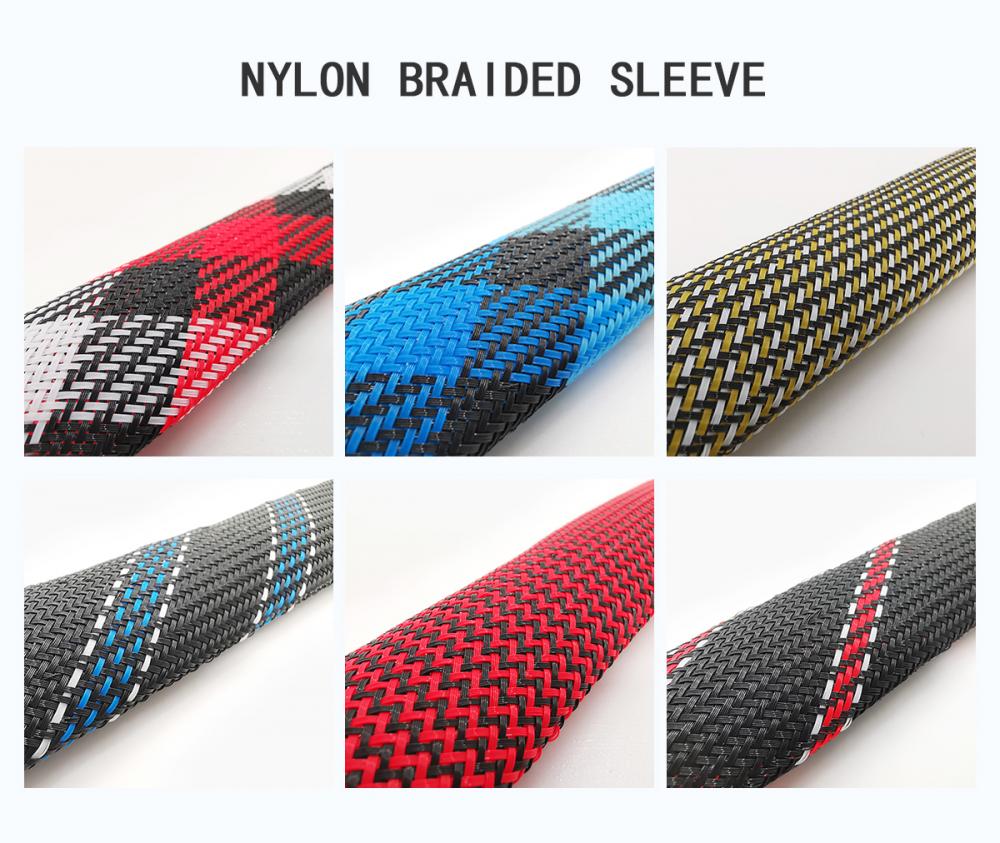

The thread diameter of PA6.6 in Nylon braided sleeve is nearly 10% larger than that of PET fiber in PET braided sleeve, which makes Nylon braided sleeve more tough, and its flexibility can even bend the casing into any shape. In the casting industry, the high temperature molten steel is often splashed out, and the pipes or wires without maintenance will be damaged as a result. In addition, these molten steel will produce ash after condensation on the pipes or wires, which will cause the plastic on the surface of the pipes or wires to harden, age and crack. The braided casing can largely maintain the pipes, wires and equipment in these places, greatly increasing their service life.
Technique Data-Sheet
Material:
Nylon PA6 or PA66
Working Temperature:
-50℃---150℃
Melting Point:
250℃
Certified:
RoHS、 REACH
Standard Colors:
Black,transparent
Cutting Tool:
Hot Knife
Application:
The products are widely used in automobile, military industry, aviation, and other fields. They are used for wire and cable that need to keep bending and changeable trend, as well as wire and cable that need high-strength friction. They can protect and tidy wire harnesses as well.

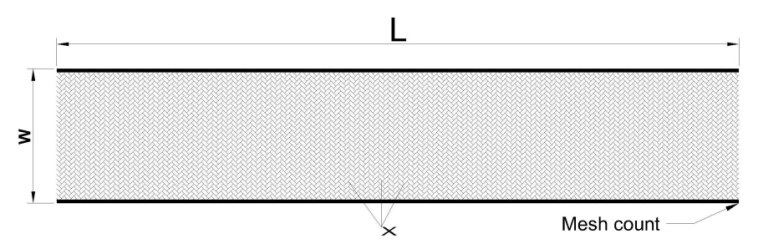

Product Drawing
|
Size specification |
|||||||
|
Model No. |
Natural Width（W） |
Radio of expandable |
Packing(L) |
||||
|
|
Inch |
MM |
Min（I） |
Max(O) |
|
||
|
NS-002 |
1/16″ |
2 |
2 |
4 |
1000m/Roll |
||
|
NS-003 |
1/8″ |
3 |
3 |
6 |
1000m/Roll |
||
|
NS-005 |
3/16″ |
5 |
5 |
10 |
1000m/Roll |
||
|
NS-006 |
1/4″ |
6 |
6 |
12 |
500m/Roll |
||
|
NS-008 |
5/16″ |
8 |
8 |
16 |
500m/Roll |
||
|
NS-010 |
3/8″ |
10 |
10 |
20 |
500m/Roll |
||
|
NS-012 |
1/2″ |
12 |
12 |
24 |
350m/Roll |
||
|
NS-014 |
9/16″ |
14 |
14 |
28 |
350m/Roll |
||
|
NS-016 |
5/8″ |
16 |
16 |
32 |
350m/Roll |
||
|
NS-019 |
3/4″ |
19 |
19 |
38 |
250m/Roll |
||
|
NS-022 |
7/8″ |
22 |
22 |
44 |
250m/Roll |
||
|
NS-025 |
1″ |
25 |
25 |
50 |
100m/Roll |
||
|
NS-030 |
19/16″ |
30 |
30 |
60 |
100m/Roll |
||
|
NS-035 |
11/8″ |
35 |
35 |
70 |
100m/Roll |
||
|
NS-040 |
25/16″ |
40 |
40 |
80 |
100m/Roll |
||
|
NS-050 |
2″ |
50 |
50 |
100 |
100m/Roll |
||
|
NS-060 |
19/8″ |
60 |
60 |
120 |
50m/Roll |
||
|
NS-070 |
11/4″ |
70 |
70 |
140 |
50m/Roll |
||
|
NS-080 |
25/8″ |
80 |
80 |
160 |
50m/Roll |
||
|
NS-090 |
7/2″ |
90 |
90 |
180 |
50m/Roll |
||
|
NS-100 |
31/8″ |
100 |
100 |
200 |
50m/Roll |
||
Remark:
1.W means natural and flat width
2.Because of the expandability on the sleeve,the following sizes are considered to be the same：16mm=15mm，19mm=20mm，32mm=30mm，38mm=40mm，51mm=50mm，60mm=65mm,90mm=95mm,100mm=110mm。
And so on, the greater the width. The larger the tolerance allowable.
3.Special packaging, special colors and product width parameters not listed in the table can be customized according to customer requirements.
4.Please refer to the sample acknowledgement for detailed product parameters.
