Self closing wrap Full Polyester cable sleeve
PET self winding Braided sleeve is an Open type braided sleeve, which contains more than 99% polyester fiber+1% polypropylene multifilament. The 100% PET self wrap braided sleeve product is carefully woven by VO grade polyester monofilament. It has good heat dissipation, flame retardancy, abrasion resistance and simple operation. The open structure is conducive to harness protection, reassembly, maintenance and repair.
Technique Data-Sheet
Material:
Polyester
Working Temperature:
-50℃- +150℃
Melting Point:
240±10℃
Flammability:
DIN 5510, VW-1
Certified:
RoHS,Halogen Free
Standard Colors:
Black
Cutting Tool:
Hot Knife
Application:
The products are widely used in high-speed railway, automobile wire harness and rubber hose It is especially suitable for the field of wires and rubber hoses that need protection and heat dissipation.

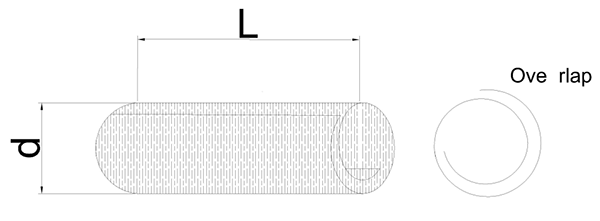

Product Drawing
|
Size specification |
||||
|
Model No. |
Inner diameter（d） |
Coincidence rate（%） |
Max wire harness diameter |
Packing(L) |
|
SCP-005 |
5mm |
75% |
6mm |
100m/Roll |
|
SCP-008 |
8mm |
|
9mm |
100m/Roll |
|
SCP-013 |
13mm |
|
14mm |
100m/Roll |
|
SCP-019 |
19mm |
|
20mm |
50m/Roll |
|
SCP-025 |
25mm |
|
26mm |
25m/Roll |
|
SCP-029 |
29mm |
|
30mm |
25m/Roll |
|
SCP-038 |
38mm |
|
40mm |
25m/Roll
|
Unit：mm
Remarks:
1. Inner diameter refers to the circular diameter of the sleeve, not the folded diameter.
2. Special packaging, special colors, etc. can be customized according to customer requirements.
3. Please make the confirmation refer to the sample acknowledgement for detailed product parameters.
