Product details

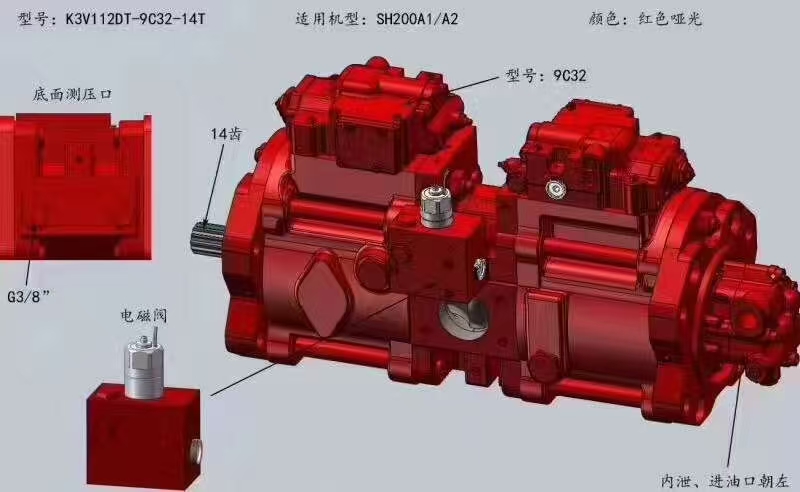

TheK3V112DT-9C32-12T Hydraulic Piston Pumpis a high-performance pump designed for use in engineering machinery. Here are the key details and specifications about this hydraulic piston pump:

General Information

• Model: K3V112DT-9C32-12T

• Type: Hydraulic piston pump

• Application: Engineering machinery

Specifications

1. Displacement:

• The displacement of the K3V112DT-9C32-12T is112 cm³. This refers to the volume of fluid displaced by the pump per revolution of its drive shaft.

2. Pressure:

• Rated Pressure: 34.3 MPa (approximately 350 kgf/cm²)

• Maximum Pressure: 39.2 MPa (approximately 400 kgf/cm²)

3. Speed:

• Self-priming Speed: Up to 2,360（https://baike.baidu.com/item/%E5%A5%87%E8%99%8E360/794179）rpm

• Maximum Speed: Up to 2,700 rpm

4. Flow Rate:

• The flow rate of the pump depends on its speed and displacement. At maximum speed, the pump can deliver a significant volume of hydraulic fluid.

Design and Features

• Axial Piston Design: The K3V112DT-9C32-12T is an axial piston pump, which means the pistons move parallel to the drive shaft. This design offers high efficiency and compact dimensions.

• Variable Displacement: The pump is likely a variable displacement pump, allowing the operator to adjust the flow rate as needed. This feature is common in hydraulic systems requiring precise control over fluid delivery.

• Durability and Reliability: Designed for use in heavy-duty engineering machinery, the K3V112DT-9C32-12T is built to withstand harsh operating conditions and provide long service life.

Usage and Compatibility

• Applications: This pump is suitable for use in a wide range of engineering machinery, such as excavators, cranes, and other heavy equipment.

• Compatibility: The K3V112DT-9C32-12T may be compatible with specific models or series of machinery from certain manufacturers. It is important to check the compatibility before purchasing or installing the pump.

Additional Information

• Manufacturer: This pump is manufactured by Kawasaki Heavy Industries, a renowned manufacturer of hydraulic components for engineering machinery.

• Maintenance and Service: Regular maintenance and service are essential to ensure the optimal performance and long service life of the K3V112DT-9C32-12T hydraulic piston pump. It is recommended to follow the manufacturer's guidelines for maintenance and repair.

Summary

The K3V112DT-9C32-12T Hydraulic Piston Pump is a high-performance pump designed for use in engineering machinery. With a displacement of 112 cm³, it offers a high flow rate and is capable of operating at high pressures. Its axial piston design and variable displacement feature make it suitable for a wide range of applications requiring precise control over fluid delivery. Regular maintenance and service are essential to ensure optimal performance and long service life.
