18650 cell tester

4 week ago
24 0
Product details

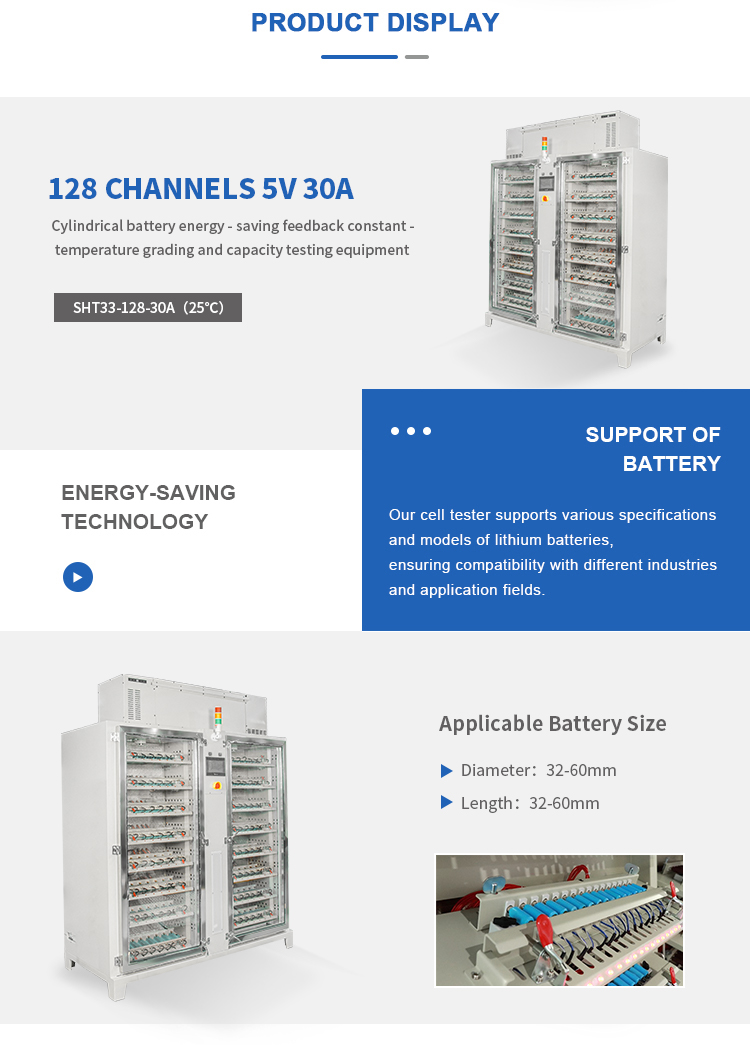

SHT33-128-30A (25℃) Batteries Cylindrical Power Battery Energy Recovery and Constant Temperature Sorting Equipment
Operational Concept
The SHT33-128-30A 25°C cylindrical power battery energy recovery and constant temperature sorting equipment is advanced intelligent testing equipment developed exclusively for cylindrical power batteries that incorporates essential features of the Battery Charge Discharge Tester and Li Ion Battery Capacity Tester into one system of testing equipment. The equipment consists of 128 parallel structural design channels with 30A maximum high current charging and discharging. The equipment will provide testing in a constant temperature chamber of 25±2 (temperature) and constant testing condition. Major feature of the equipment includes:

lithium battery charger discharger

Bidirectional energy recovery technology: required charging efficiency in charging with an efficiency of ≥80% and required discharging efficiency with an efficiency of ≥70% greatly saves energy during testing.
Four wire high-precision measurement: Voltage and current accuracy of minimum ±0.5‰FS for different measurements dimensionality.
Modular intelligent system: 32-steps programmable testing, MES combination and other types of testing and automatically sorting and managing the overall processes into one automated digitally controlled process and overall management of the test.
The test father cylindrical battery diameter measures 32mm-60mm with flat-head fixtures to safely eliminate reverse connection testing. The operational concept of this testing equipment will apply when assessing production, R&D and quality testing when testing the power battery.

li ion battery charge discharge cycles
Principal Advantages
Reliable energy recovery; there is energy back recovery in discharged batteries back to restoring constant energy into the grid while achieving an energy-Saving Rate to the Factory of 30% or greater.
Constant temperature high precision battery testing; Testing at ambient conditions a constant temperature of 25±2°C and measurements accuracy to ±0.5‰FS for the most valid conditions of consistency and reliability of the testing data for accuracy of repeatability and consistent reporting of the testing data.
Intelligent full parallel running capacity; Testing is with 128 channels independent and adequately provisioned for testing will mean testing over 1,500 units in one-shift testing independently running testing, with the appropriate sensors and safety devices will allow for shut-down in each abnormal condition for one effective processing and testing for production line facilities.

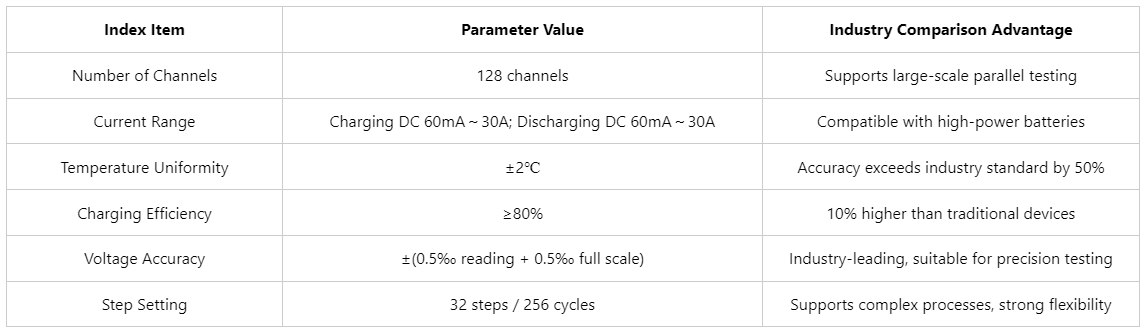

Technical Parameters

battery safety testing machine

Application Scene Goodness
Batteries Power Mass Production: 128 channels testing simultaneously on a Lithium Cell Grading Machine which will testing/-batching of 800+ batteries hour testing for each channel testing while limiting labor cost with efficiency.
Batteries R&D Validation: Constant temperature of 25°C for precision battery testing will athoritive be provided will verify data at a constant for optimization abilities of batteries design and performance in R&D for stand-by testing purposes.
Batteries Large Scale Quality Testing: The energy recovery when testing is undertaken and using energy utilized in the testing process test conditions when the testing software truly utilize the Intelligences and not test the energy in places the other energy might or use for tracking purposes and that testing quality data can become Advanced Quality Assurance testing when a company is using the test equipment with MES or Advanced Quality Assurance testing or quality assurance testing through kits when end-QA testing work through MES data.

battery test equipment manufacturers 02
