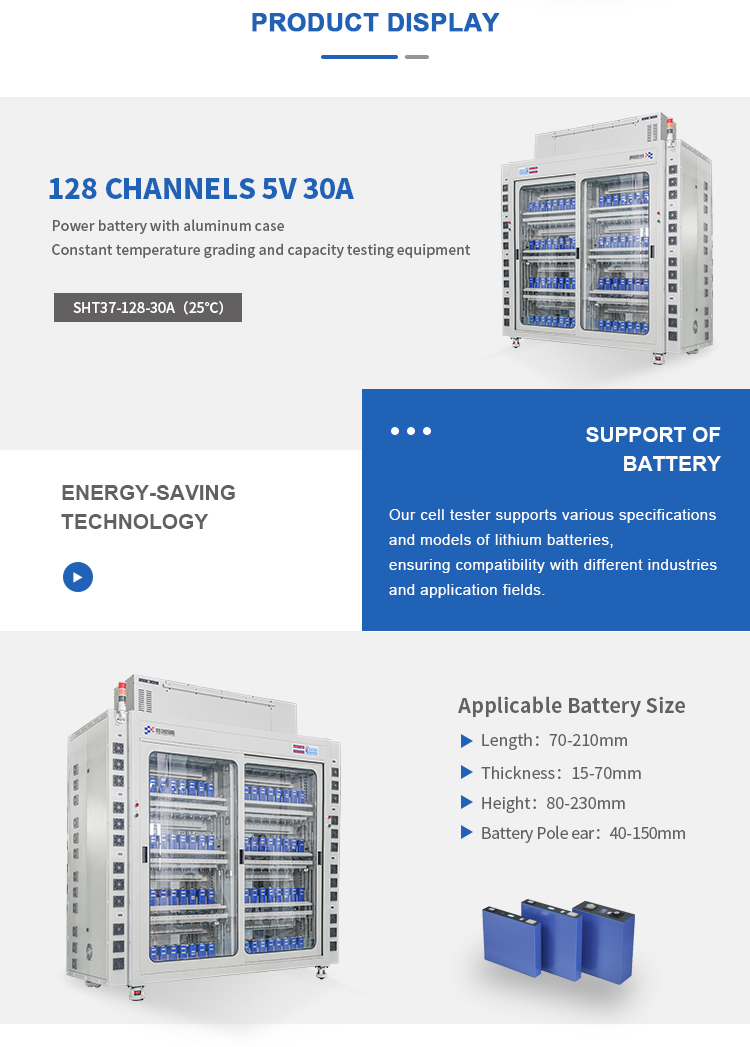

SHT37-128-30A (25℃) Aluminum-Cased Power Battery Constant Temperature Sorting Equipment
Overview of Equipment Functions
The SHT37-128-30A 25℃ Aluminum-Cased Power Battery Constant Temperature Sorting Equipment has been specially designed to test aluminum-cased power batteries. It is equipped with precise constant temperature control to ensure the stable temperature environment is 25±2℃ for the entire test. It has a total of 128 independent channels that can perform charge/discharge operations at the same time on multiple batteries. The independent constant current and constant voltage sources will allow the operation to be stable without impulsive testing for reliable measurements of various parameters. Furthermore, the extremely powerful software system will allow complicated testing procedure settings, and after testing, accurately grade batteries to different grades, depending on multidimensional measured data, similar to a Lithium Cell Grading Machine, after which products of different grades can be sorted. It can also measure battery capacity with precision similar to a Li Ion Battery Capacity Tester and automatically record data and generate reports which also provides strong supporting testing for battery R&D and battery production.
Core Benefits
Precise Constant Temperature Control: The cabinet type constant temperature structure can stably control the internal temperature of 25±2℃ with good temperature uniformity for a stable testing environment with a more accurate test temperature; therefore, it improves the accuracy of the test data.
Recovery of Efficient Energy: The charging efficiency during the charging and discharging is ≥80%, and the charging efficiency during the discharging is ≥70%. Energy released from the batteries will be fed back into your factory/AC distribution network through a bidirectional AC/DC inverter while providing minimal energy damage consumption!
Smart Software System: This software system is incredibly strong and allows the operator to set up to 32 steps and 256 cycles with various protection functions and data processing capacity. It can control conditions in the whole cabinet to scan while interfacing MES systems and improving the level of intelligent production.

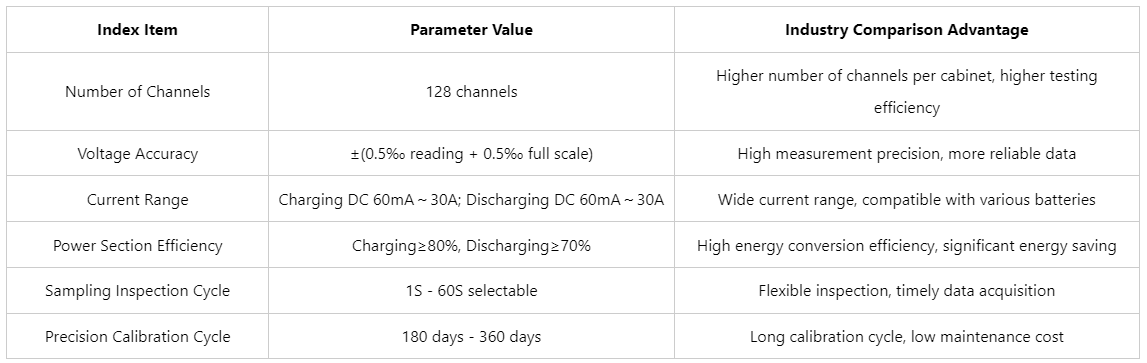

Technical Parameters
Application Scenario Benefits
For Large Scale Battery Production: On an actual power battery production/operation line, the equipment can sort test more than 800 batteries per hour with its 128 channels working in parallel along with a charge and discharge efficiency operating in reality! Also, at the same time, its precise function of grouping the batteries into different grades as Lithium Cell Grading Machines can efficiently sort batteries into a different grade according to capacity, voltage, etc, for subsequent assembly and use time in the same day for consistency of product quality and reduce defective product rates to save time and improve product quality with less waste thus saving costs in production operations at the factory!
For Battery R&D lab: With battery R&D work, it is highly beneficial to be able to complete test work to obtain a stable testing environment, especially since the constant temperature provides a precise temperature environment of 25±2 degrees with the high-precision measurement system so you can determine the battery capacity and other performance parameters. R&D personnel can now benefit from this accurate data so that you can get much deeper into analyzing battery performance characteristics, battery design and the production process to be at the forefront of developing new types of batteries
For Battery Quality Inspection Station: With this battery quality inspection scenario, the equipment can now become a professional Battery Charge Discharge Tester and provide many comprehensive testing of performance on either or both charge/discharge inspection conductors inside batteries. It has rich protection and data processing functions to quickly detect and recognize battery potential issues like overvoltage, undervoltage, lack of capacity etc. With strict inspection further refined after testing, as the items are sorted according to premeasured values, recognized tested poor performing batteries can be removed or rejected to maintain reliability of batteries brought to market and conserve user safety upon utilizing a proper battery performance quality control process for verification.
