Product details

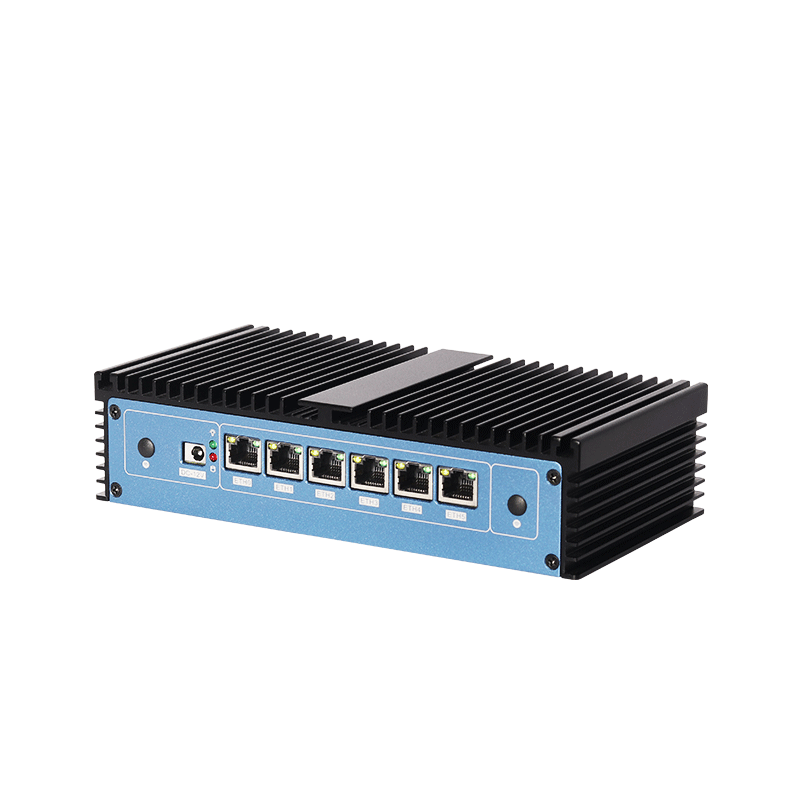

The X76 Fanless Industrial Computer is a high-performance network device designed to meet the demands of modern enterprise and home office environments. This advanced mini PC combines robust hardware with versatile software capabilities, making it an ideal choice for those seeking a reliable 6LAN Fanless Firewall solution powered by PFsense. This industrial-grade computer features an Intel i211AT processor with six NIC ports, enabling seamless handling of Gigabit Ethernet traffic. Its fanless design ensures quiet operation while maintaining optimal performance in challenging conditions. The X76 is engineered to serve as both a Home Enterprise Firewall and a sophisticated Gigabit Ethernet Router, providing users with unparalleled flexibility and control over their network infrastructure.

Feature

■ Support 1*260 SO DIMM DDR4, 16GB;

■ Support 1* 128GB SATA 3.0 2.5”SSD+1*mSATA SSD;

■ 6*Intel i211AT network card;

■ Dual Video Outputs:1*HDMI+1*VGA;

■ Support 1*Mini PCIE for WiFi/3G/4G,1*GPIO(4*Input+4*Output);

■ Support PXE Boot, WOL, Auto Power On, etc;

Overview:

The X76 model is a fanless embedded industrial computer, integrated with INTEL Core i7 6500U.

It can meet a variety of needs in a demanding environment. Based on the fanless design, it can run more stably and reliably in terminals, multimedia, and for other

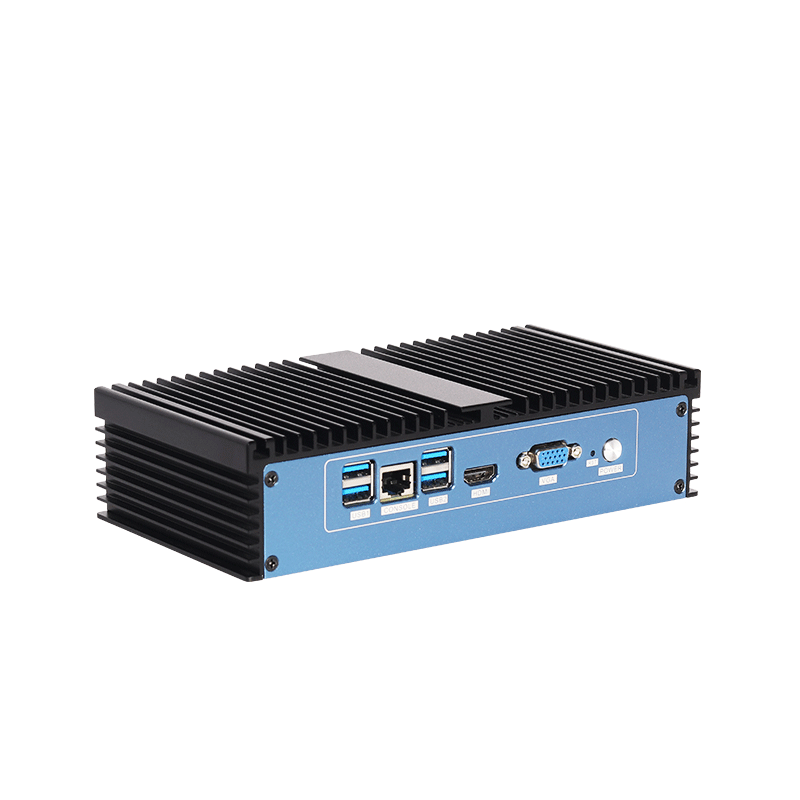

industrial applications. In addition, with the rich interfaces of 6* LAN, 1*RS232, 4*USB, there is an easy interconnection between devices.

Specifications:

CPU: Intel Core i7 6500U (2 core 4 threads, 4M Cache, 2.5GHz up to 3.10 GHz,TDP: 15W)

BIOS: American

Integrated i7 6500U: Intel HD Graphics 520

Graphics Base Frequency: 300MHz

Graphics Max Dynamic Frequency: 1.05GHz

DirectX* Support:12

Technique: Single Channel DDR4 SODIMM, 1* 260-pin SO-DIMM, 16GB

Capacity: 16GB

SATA: 1* 128GB 2.5 SSD (highest data conversion rate SATA3.0)

mSATA: 1* mSATA SSD

32GB/ 64GB/ 128GB/ 256GB/ 512GB/ 1TB/ 2TB SSD

Dual Video Output: 1* HDMI +1* VGA

Max Resolution 4096*2304@24Hz

Support Dual-Line Synchronous or Independent display

LAN: 6*10/100/1000M Intel i211AT Network Card

Main System: No

COM :1*COM/RS232 (Shaped in RJ45)

USB: 4 x USB 3.0

1* Full Height Mini PCIE for WIFI/3G/4G, 1*SIM Slot, 1*GPIO(4*Input+4*Output).(Extended on the motherboard only)

Setting on BIOS or MB: Supports Wake UP on LAN, S5 RTC Wake Settings, PXE Boot, Restore on AC power loss(Auto Power On).

Fanless: Passive Cooling with Heat Sink Aluminum Radiator OS Supported Windows 10/Windows 11, Linux/ Ubuntu/ Centos, Pfsense/ OPNsense/ OpenWrt/ Mikro TIK/ VMWare/ Panabit, etc. Power Type DC-IN 5.5*2.5mm

Power Adapter: DC 12V 5A/ 60W (AC TO DC, 100~ 240V)

TDP: 15W

Aluminum Alloy

Desktop/VESA

214*111*52mm

Weight: 1.0 KG

Operating temperature: -10℃~ 60℃

Storage temperature: -20℃- 70℃

Operating humidity: 5%-95% Relative humidity, no condensation
