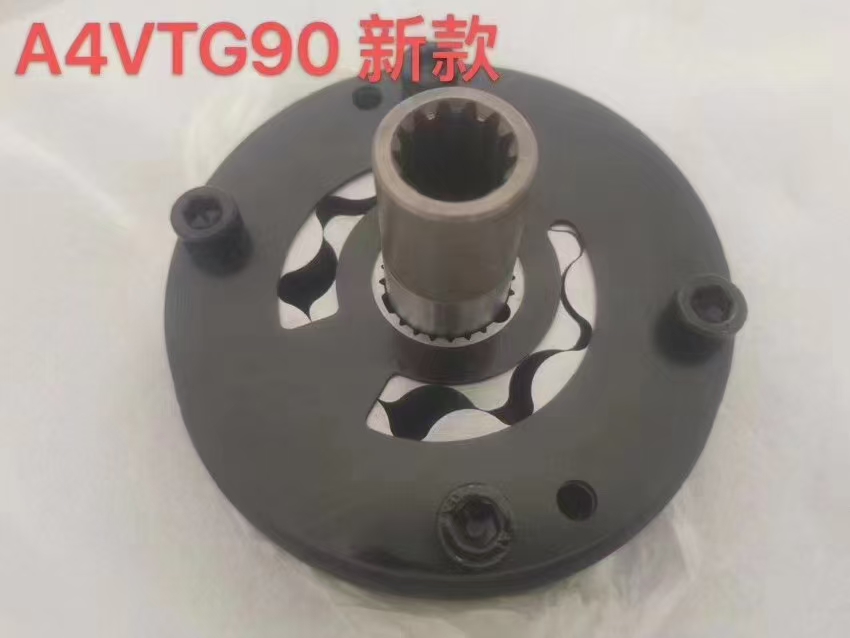

A4VTG90 New Version Charge Pump

Based on comprehensive technical documentation and supplier specifications, the A4VTG90 New Version charge pump is engineered for high-pressure hydraulic applications, featuring advancements in pressure management, operational flexibility, and structural robustness. Below is a detailed technical overview:

1. Core Technical Parameters

【表格】

Specification Details

Displacement 90 cm³/rev (main pump), 25.7 cm³/rev (integrated boost pump)

Pressure Rating Nominal: 400 bar (5,800 psi)Peak: 450 bar (6,500 psi)

Control Modes Dual-mode operation (HW hydraulic servo / EP electric proportional)

Response Frequency Up to 80 Hz (EP mode)

Rotation Speed Max. continuous: 3,050 rpmLimited max.: 3,300 rpm

Fluid Compatibility Mineral oil, HF hydraulic fluids (special variants support HFC oils)

2. Design Enhancements

• Swashplate Reinforcement

Forged steel swashplate with HV1000 surface hardening, reducing deflection by 40% under load versus prior models.

• Integrated Boost System

Built-in gear-type boost pump (25.7 cm³/rev) with adjustable relief valve (280 bar max), eliminating external pre-charge circuits.

• Dual-Mode Controller

• HW Mode:Hydraulic servo with mechanical feedback, optimized for harsh environmental conditions.

• EP Mode:Electric proportional control with manual override, facilitating IoT integration.

• Modular Flange Interface

Configurable SAE-B/C flange options, compatible with A4VG series main pumps in closed-circuit configurations.

3. Material & Durability

• Housing Construction

High-strength cast iron (optional aluminum alloy housing available for 15% weight reduction).

• Sealing System

Dual-lip PTFE oil seals with Viton® backup rings, rated for 450°C flash points.

• Bearing Configuration

Tapered roller bearings with L10 lifespan exceeding 10,000 hours at rated load.

• RFID Maintenance Tag

Embedded NFC chip logging installation dates, maintenance history, and diagnostic codes.

• Condition Monitoring Port

Optional analog/CANbus output for real-time pressure and temperature monitoring.

5. Typical Applications

• Concrete Machinery

Drum drive systems (e.g., PMH P110 mixers) in closed-loop circuits with A4VG main pumps.

• Mining Equipment

Hydrostatic drives for tracked vehicles, operational in -40°C to 100°C temperature ranges.

• Marine Steering Systems

Redundant pump setups with load-sensing control logic.

6. Compliance & Certifications

• Safety Compliance:ATEX Zone 2 certification, GS explosion-proof approval.

• Quality Standards:ISO 9001:2015, IATF 16949 (automotive-grade subcomponents).

• Environmental:ISO 14064 carbon footprint tracking throughout manufacturing.

ROTARY FOR PISTON PUMP
Rexroth	A4V,A4VSO,A4VG, A6VM, A7VO, A8VO,A10VSO, A11V,A11VO, A11VL
Caterpillar	Cat215/225/235/245 & motor grade 12G/14G/16G Cat320, Cat320C, SPK 10/10, SPV10/10
Komatsu	HPV35/55/90/160 (PC60/120/200/300-3/5) HPV95/132 (PC60/200/220/300- 6/7) KMF90/160 KPV 90/105 (PC200-2)
Sauer	PV18/20/21/22/23/24/25/26/27 PV90- 030//042/055/075/100/130/180 /250 PV6/119 PV42-48 MPVO 46 MFTO 35
Hitachi	HPV116/102/105/145 (EX200-1,EX200-5,EX300-1/2/3) HPV091 DW/EW (EX200/220-2/3) PVD-2B 34/36/40/42
Kawasaki	K3V 45/63/112/140/180 DT&BDT KVC 925/930/932 NV 45/50/60/64/70/80/84/90/111/120/137/172/210/237/270
	NV 237/270, NVK45 M2X 63/96/120/146/150/170/210 M5X 130/160/180 GM 8/9/10/18/20/24/28/35/38VL
Vickers	PVB 5/6/10/15/20/29/45 PVH 57/74/98/131/140 PVE 19/21
Linde	HPR 100, BPR 80/140/186 BMF 35/55/75/105 BMV 35/55/75/105
	HPV 130-01, HMF50/63, BPV 50/75/100, MPR63, B2PV 35/50/75/105
Uchida	A8VO 55/80/86/107/115/160/172 AP2D 14/21/25/36/38/42 A10VD 17/23/28/40/43/71, AP5S 53/67
Eaton	3331-006/007, 4621,4631,5421,5431,6423,7620,7621,7862
Liebherr	LPVD 64/75/90/100/125/140/150
Yuken	A37/45/56/70/90/140
