Product details

UV Drying 4 Station Silk Screen Printer Machine for Plastic Ruler

Automatic ruler screen printing machine ,can print kinds of logo on stationery scales , 30cm plastic ruler,45-degree triangle,60degree triangle ruler, protractor and other stationery, different products need to install different types offixture,can print 4 ruler at one time, speed can up to 6000pcs/hr.

Automatic uploading and downloading, UV LED drying,Power saving,High production;

Screen Printer Machine for Plastic Ruler

Automatic feeding device.

1. Can print a set of ruler at one time,

;2,High precision automatic feeding,one set at one time with safe sensors;
3.Out of product alarm, machine stop once the product is used up;

Working stations with UV drying.

1.Special jigs for rulers;

2.Electrostatic process;

3.Rotary working station;

4.Printing without going up;

5.UV drying on the machine'

Automatic unloading deviece

1.Machine arms for unloading;

2.Conveyor inculded;

3.Timer for conveyor;

Details Images

Product Paramenters

1. Worktable is adopt Taiwan TANTZU cam indexers, higher precision, more smooth and faster 2. Printing head left/right driven is by Taiwan TECO motor, make sure accuracy printing. 3. Japan Mitsubishi PLC with man-machine touch screen, programmable printing process, easy operation 4 High and strong vacuum system, keep printing precision 5. With emergency switch to keep safe and stable 6. Printing angle, printing pressure and screen distance are easy to set. 7. The squeegee and flood bar is controlled by precision guide, keeping the vertical precision 8. Fully automatic design, no need worker for opearation. Model: HY-YC400T Frame size: 200*600mm Printing speed: 6000pcs/hr Machine size:1200*1000*1500mm Voltage: 110V/220V Power: 3kw Weight: 380KG

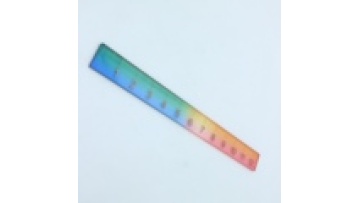

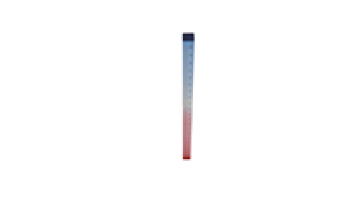

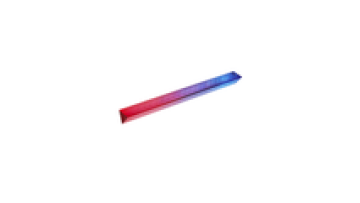

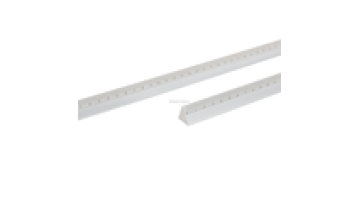

Printed samples
