Product details

Precision Motor screen printing machine

The semi-automatic flat screen printing machine usually has three actions, the upper and lower of the screen, the left and right of the scraper and the ink return knife, and the up and down of the scraper and the ink return knife. The actions of the scraper and the ink return knife are just opposite, and it is simpler and more reliable to use pneumatic control. The up and down motion of the screen and the left and right motion of the scraper ink return knife can be controlled either pneumatically or by motor. We call the screen printing machine that uses pneumatic control for these two actions as a pneumatic screen printing machine, and the way that these two actions are controlled by a motor is called an electric screen printing machine. The precision of the electric screen printing machine is higher than that of the pneumatic screen printing machine.
In addition to the difference in control power, in order to further improve the accuracy of the screen printing machine, linear guides are also used for the guide shafts on the upper and lower sides of the screen and the left and right of the scraper, which further reduces the running error. The other is the use of a touch screen operation panel, which is the dataization of the operation and adjustment of each action, which is convenient to reasonably adjust the parameters used in the silk screen printing of different products.

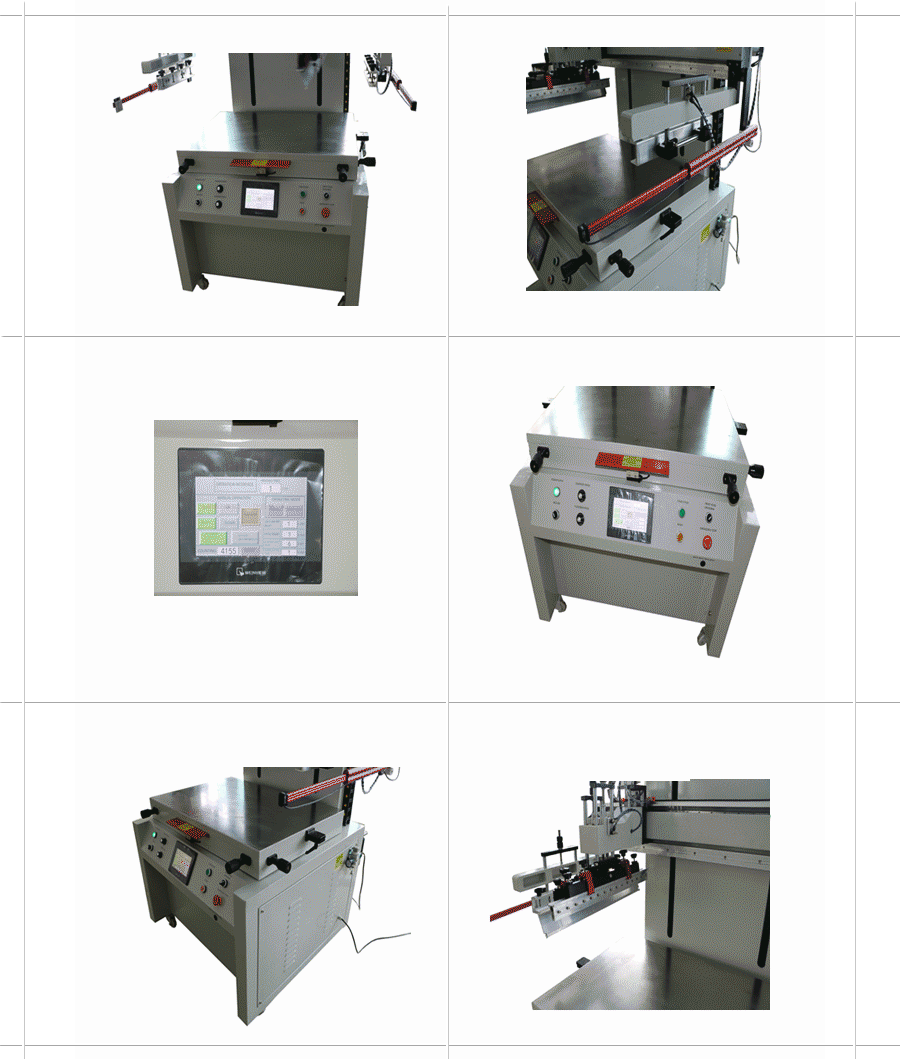

Samples

Description

Suitable for all kinds of materials, such as plastic printing. Such as: plastic, glass, ceramics, wood and other materials. Printing products such as various types of transfer paper, all kinds of PVC, PET, PC and other hard hard film, Film, paper, nameplate, keyboard, instrumentation, electronics and other products. As well as a variety of different thickness of the substrate film, card, plate, Zhang high precision, fine flat screen printing.

It is a flat screen printer with a suction function and is suitable for printing in thin products such as paper, PVC film, plastic film, textile, etc., which are easy to walk in the printing process. Printing the largest area: 600 * 800 mm;
Structural design using screen up and down sports, more conducive to product removal and placement;
Stable horizontal cylinder design, blowing ink pressure uniform, back to the ink formation, printing quality is good;
Can be semi-automatic operation, the user interface is good;
Machine debugging process set up a single function operation, set up to complete the full operation;
Widely used in paper packaging, mirror printing, glass printing, machine panels, stickers printing, combined with a variety of processes, can achieve UV scrub, UV onions, UV local varnish and coating process. Also widely used in water mark transfer paper, thermal transfer paper printing.
Screen printing machine and the screen plate are used up and down the use of high-precision hardened guide shaft structure, high parallelism, operating error can be controlled within 0.05mm, is a high-precision flat screen printing machine commonly used in the form of institutions;
Widely used in high-precision screen printing tasks such as: circuit boards, dot printing, membrane switch, ink layer thickness requirements of the printing area.

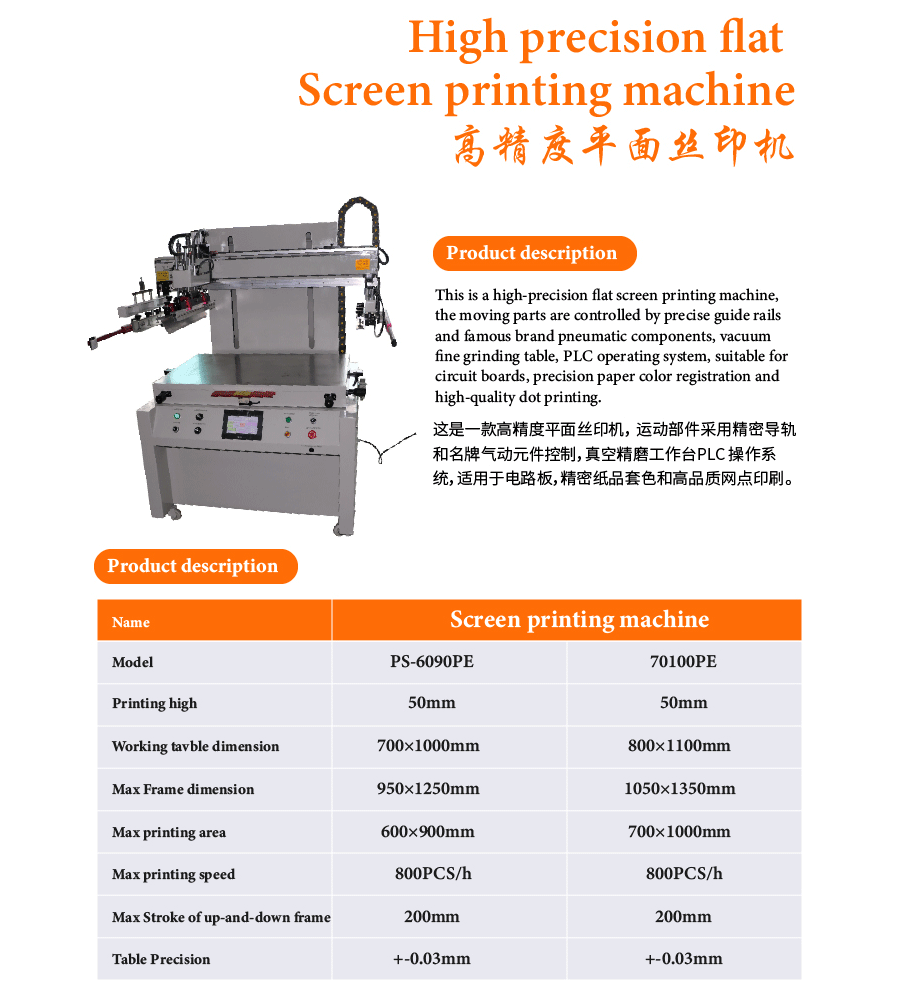

Precision Motor screen printing machine//Technical Parameters

Item	PS-6090PE	PS-70100PE	PS-80120PE	PS-90140PE
Printing height(mm)	50	50	50	50
Air(liter/min)	55	55	55	55
Worktable dimension(mm)	700×900	800×1100	900×1300	1000×1500
Max. frame size(mm)	850×1050	950×1250	1050×1450	1150×1650
Max. printing area(mm)	600×800	700×1000	800×1200	900×1400
Max. printing speed(pcs/h)	800	700	700	600
Max Stroke of up-and-down frame(mm)	200	200	200	200
Max stroke of Squeegee(mm)	800	1000	1200	1400
Squeegee motor wattage(w)	200	200	200	200
Table Precision(mm)	+-0.03	+-0.03	+-0.03	+-0.03
Package dimension(m)	1.51×1.26×1.83	1.51×1.36×1.83	1.46×1.69×1.82	2.07×1.79×1.82
G.W.(kg)	541	570	600	630
Works supply	110 V-220 V Power supply; 5-7 Bar compress air

Precision Motor screen printing machine//Advantage

High-precision linear guide-way control lifting and dropping of screen plate and rubber squeegee;
Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
Screen form up and down movement of contact with the table, suitable for hand-placed and remove the product;
Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
Screen form Clamping device free to adjust to fit different sizes of screen;
Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
Microcomputer program control operations;
4-Digit auto counter; to facilitate the measurement of production efficiency.

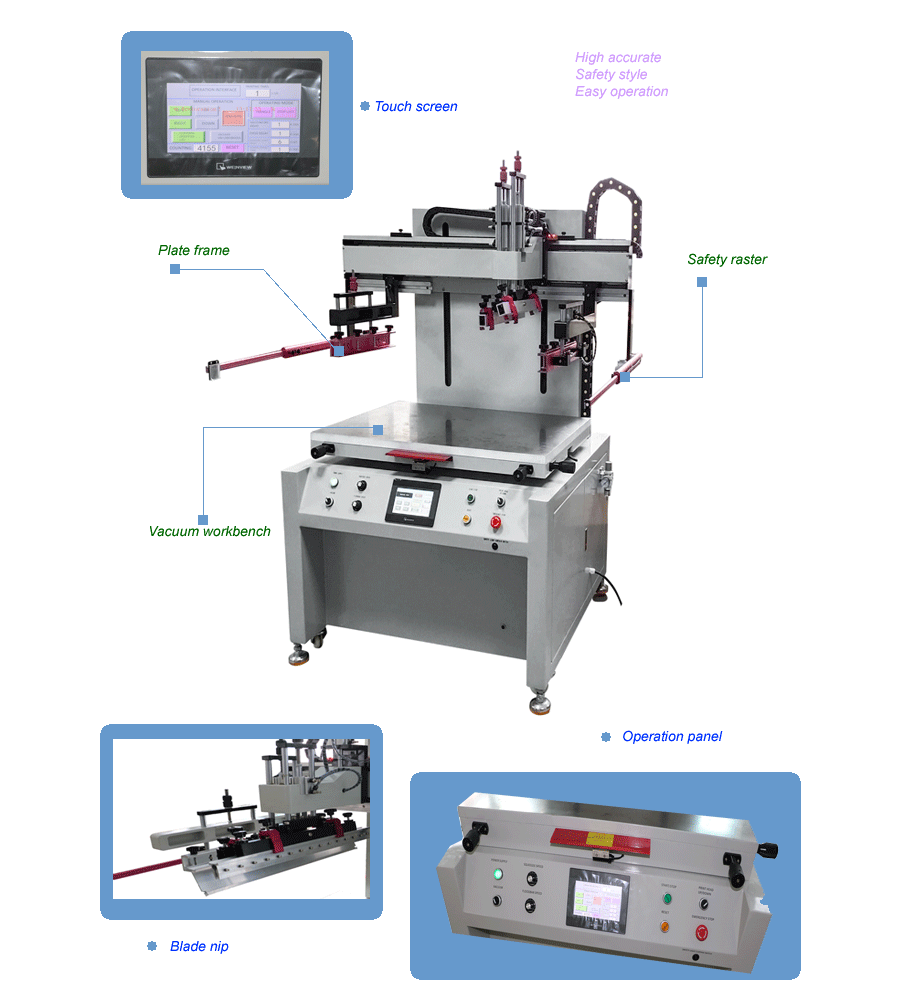

Structure
