Product Description
Product Category: Battery Holders丨Battery Mounts丨 Coin Cell Holders丨 Battery Contacts丨Battery Retainers丨Battery Clips 丨Battery Snaps丨SMD/SMT Coin Cell Battery Holders 丨Button Battery Holder Case Box Case
Coin Battery Holder・Coin Cell Holder・Button Cell Holder (CR498・ CR503・CR1058・CR1220・CR1225・CR1620・CR1632・CR2016・CR2032・CR2330 ・CR2430・CR2450・CR2477)

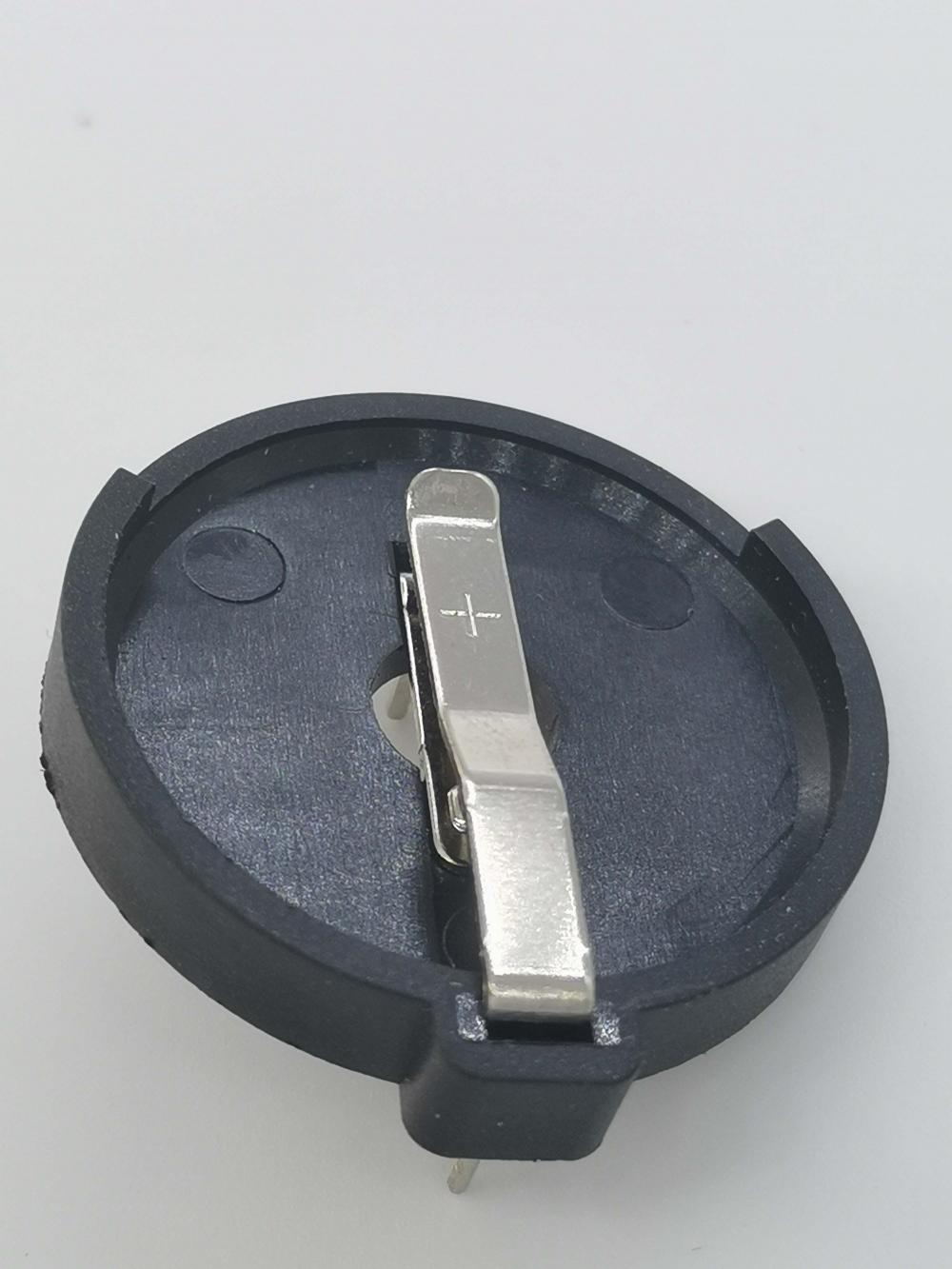

CR2430 DIP Coin Cell Battery Holder Manufacturer/Supplier
CR2430 lithium coin cell Holders DIP/Thru Hole Mount (THM)
Specification
1,Material:
a.Housing:PA BK VO GF30.15
b.Contact:Manganese Steel
(Surface Plating:Sn 10u")
See Ordering Information
2,Electric:
a.Contact Resistiance:30 Milliohms Max
b.Insulation Resistance:1000 MEGA OHMS Min
c.Dielectric Voltage:500V AC One Sea Level
d.Operating Temperature: -55°To 105°

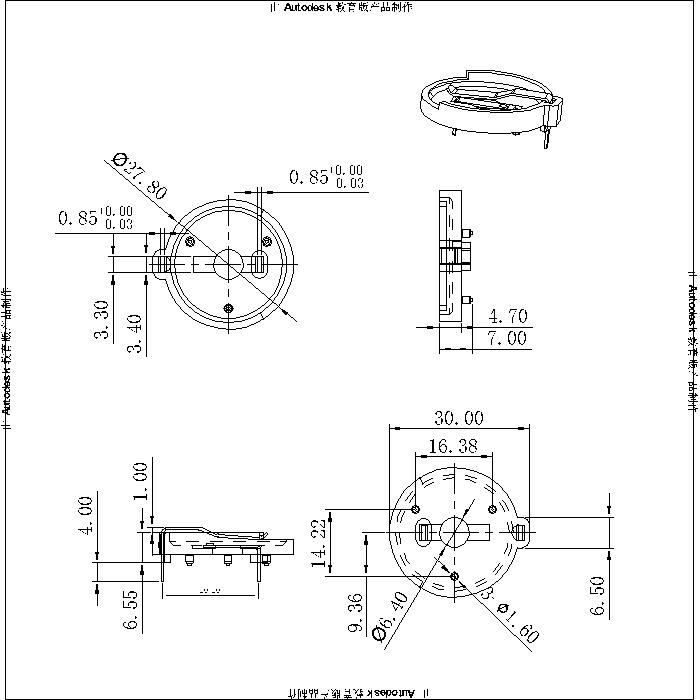

CR2430 Holder with PC pins Lithium Coin Cell Thru-Hole Mount Holders Install Diagram
Feature of PCB mountable CR2430 coin cell holders
Low profile for high density packaging
application of CR2430 Coin Cell Holders DIP:
1. It is used to load the battery, usually on the PCB board, for the power supply of electrical devices.
2. Easy to disassemble.
3. Fixed structure to cope with impact and vibration and reduce physical damage.
Reliable spring tension contacts assure low contact resistance
Retains battery securely to withstand shock and vibration
Rugged construction, light weight
Compatible with vacuum and mechanical pick & place systems
Base material UL rated 94V-0. Impervious to most industrial solvents
Clearly marked polarities to help guard against improper insertion
medical equipment, digital toys, industrial control boards, fire protection, etc.
FAQ:
Q1.Are you a manufacturer or trading company?
A: We are a professional manufacturer for all kinds of connetors is in Shenzhenwe have an excellent R&D team with over 10 year-experience.
Q2.What's the lead time after place order?
A: Normally we will deliver your order 10-20 working days after place order.
Q3.What is your sample policy?
A: Free Sample is acceptable (1-20pcs), and customers need to pay the freight cost.
Q4. Do you also test all your products before deliverying?
A: Yes,we usually test them 100% before deliverying.
Q5: What is your payment and shipment?
A: Payment: TT,LC, Western Union,PayPal etc.T/T 30% as deposit and the balance before delivery.Shipment: We usually use express delivery like DHL, UPS, TNT and FEDEX etc.
