Introduction of VIP cold Boxes
Fumed silica VIP cold boxes are combining advanced phase change materials (PCM) and vacuum insulated panel (VIP) technology to create a high-performance cold chain packaging solution. Vactherm VIP cold box spans dry ice, -15 to-25°, 2-8°, and 15-25°C temperature ranges and can provide temperature protection for a minimum of 96 hours, ensuring payload integrity no matter the shipping lane. Vactherm provides sensitive and accurate temperature tracking for frozen, refrigerated and controlled room temperature shipments. Vactherm offers a wide range of data loggers with features to best suit your requirements.
Application
Born from an urgent requirement to provide a safe vaccine packaging during covid-19 outbreak
Vactherm VIP cold boxes are specifically designed for cold chain passive packaging for the biologic, pharma and healthcare markets globally.
Temperature Range
Frozen: -20°C to -80°C
Chilled：2°C to 8°C
Ambient: 15°C to 25°C
Vactherm VIP cold box category

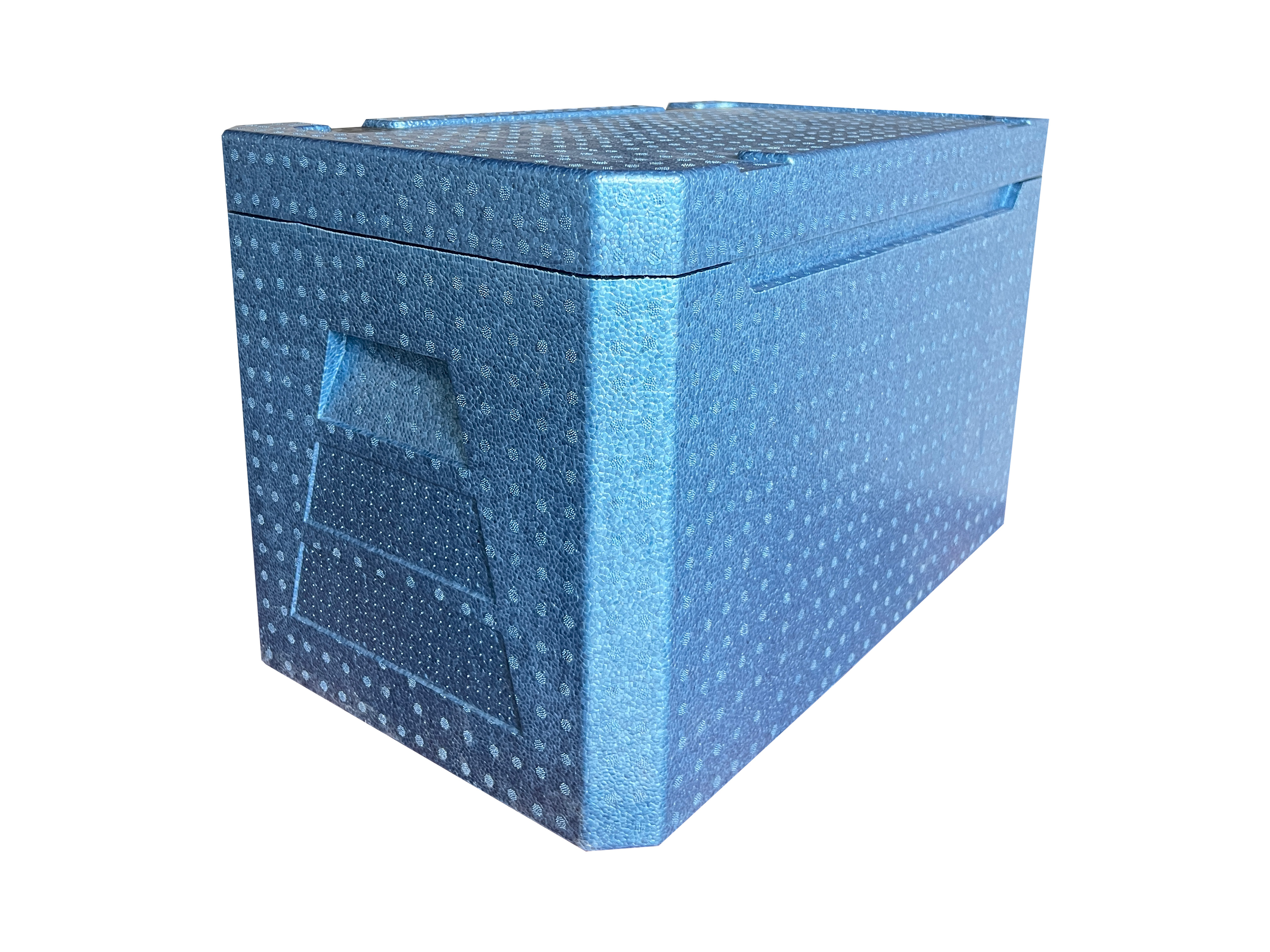

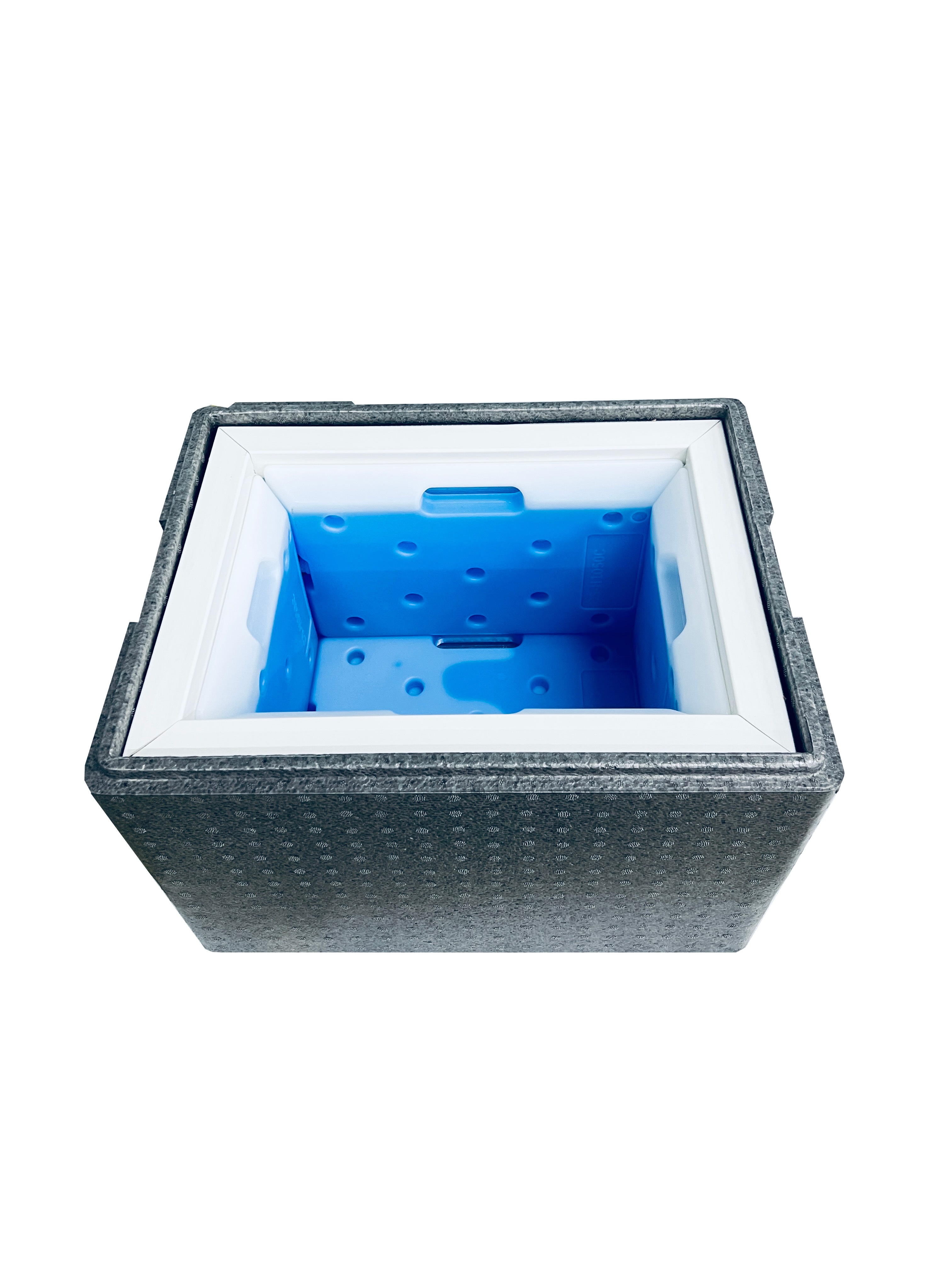

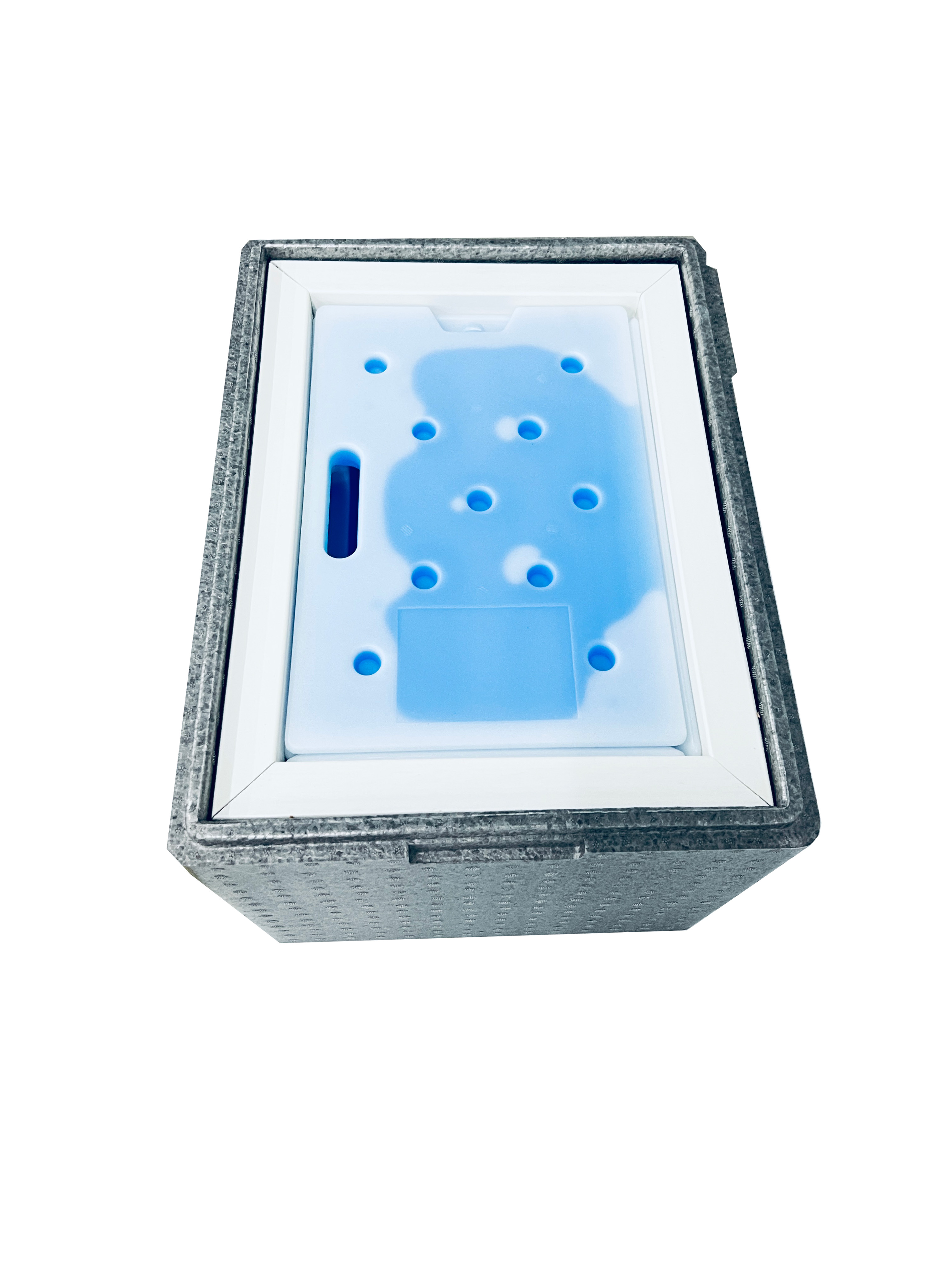

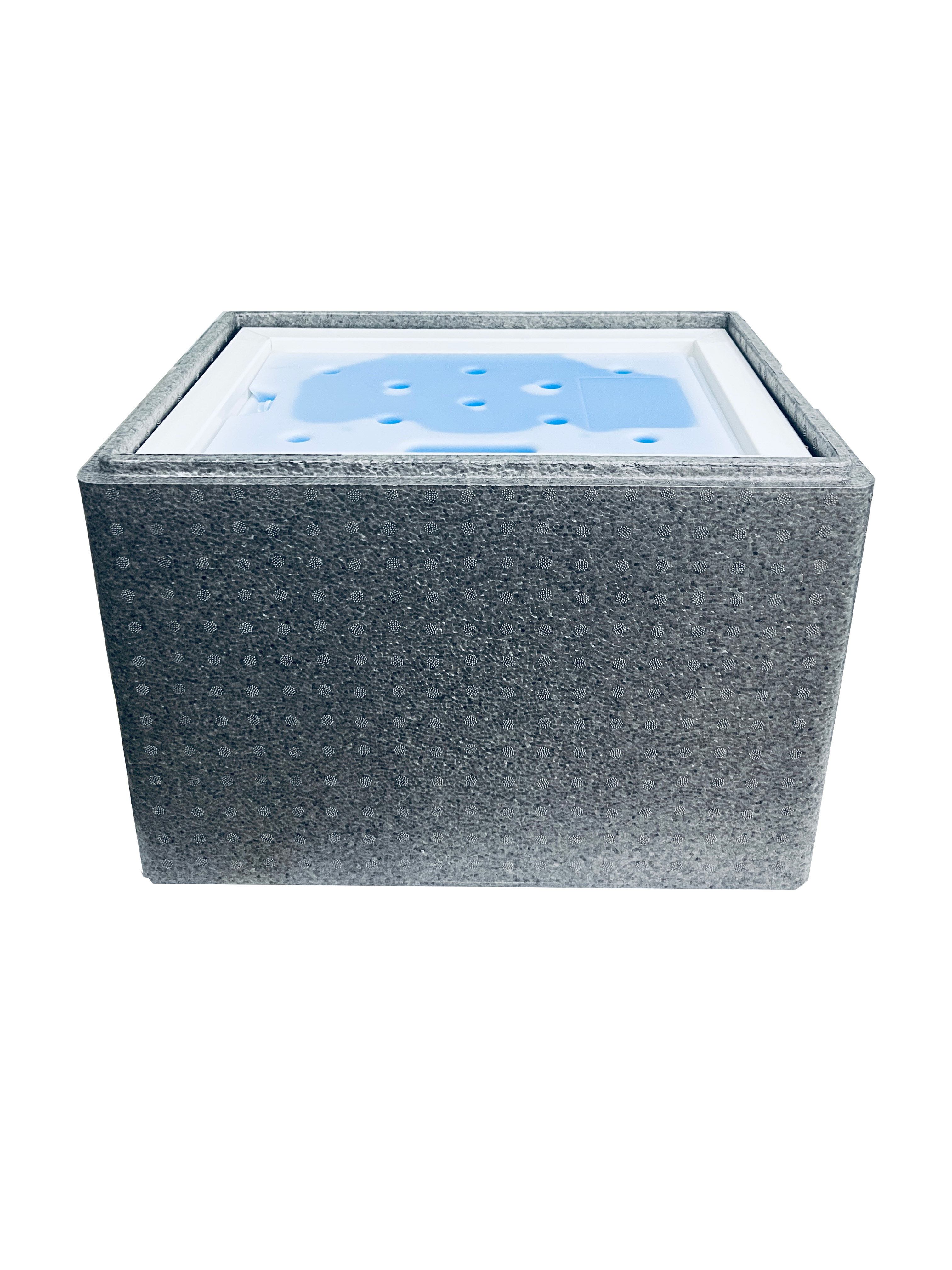

Designed for customers special needs, Vactherm are capable of offering various outer protection VIP cold boxes spanning EPP, PP, and carton box. The volume is various including 6L/8L/12L/28L/60L/125L/160L and pallet shipper. Other sizes boxes are available based on customer’s demand.
|
Products |
External Dimension (mm) |
Internal Dimension (mm) |
Component |
Temp. Range (℃） |
Duration（hr) |
|
125L Cold Box |
735*725*750 |
515*515*500 |
PP+F/S VIP+PCM |
2~8 |
180 |
|
160L Cold Box |
740*730*860 |
515*515*600 |
PP+F/S VIP+PCM |
2~8 |
172 |
|
6L Cold Box |
360*360*380 |
185*185*185 |
EPP+F/S VIP+PCM |
2~8 |
96 |
|
8L Cold Box |
450*350*350 |
290*185*185 |
EPP+F/S VIP+PCM |
2~8 |
100 |
|
12L Cold Box |
400*405*410 |
230*230*230 |
EPP+F/S VIP+PCM |
2~8 |
107 |
|
28L Cold Box |
470*470*470 |
315*315*315 |
EPP+F/S VIP+PCM |
2~8 |
123 |
|
60L Cold Box |
600*600*600 |
400*400*400 |
EPP+F/S VIP+PCM |
2~8 |
172 |
|
18L DC |
410x420x410 |
266x266x266 |
Oxford Bag+PP+F/S VIP+PCM |
2~8 |
125 |
|
18L D |
440x440x420 |
266x266x266 |
PP+F/S VIP+PCM |
2~8 |
120 |
|
18L E |
454X454X454 |
266x266x266 |
Oxford Bag+EPP+F/S VIP+PCM |
2~8 |
110 |
|
10.5L E |
454X454X454 |
218X218X218 |
Oxford Bag+EPP+F/S VIP+PCM |
2~8 |
120 |
|
13.5L E |
454X454X454 |
238X238X238 |
Oxford Bag+EPP+F/S VIP+PCM |
2~8 |
85 |
|
1840L |
1520X1433X1588 |
1256X1201X1222 |
AL+FRP+F/S VIP+PCM |
2~8 |
180 |
Bespoke Production
As an VIP manufacturer based in China, we have entire production lines integrated with VIP cores, VIP and VIP cold boxes installation. We are growing with our customers, providing tailored solution and attaching attention to after-sale service. Collaborated with top tier universities in China, Vactherm offers the expertise technic team to assist customers to solve the problems.
Design
We can custom-design a cooler system specific to your unique product and operating conditions. Just share your payload, temperature and time requirements with us and our packaging experts will get to work. With a state-of-the-art onsite production facility.
Before design, we start by asking a few simple questions:
What is the item to be shipped?
What are the temperature limits on the product to be shipped (internal payload temperature)?
What is the shipping duration?
What external temperature exposure is the system to protect against?
Where is it going?
How is it to be transported?
Strength
Internally produce VIP cores material.
Internally envelop VIP and ensure each VIP optimal quality
Internally assemble VIP boxes to ensure the minimum thermal effect
Various protection material is available including EPP, PP and carton
ODM or OEM service are available
Various data logger is available
The expired VIP materials can return to us for recycle handle
Fumed silica VIP is lightweight and longer service life up to 3 years
