HONY®Engineering Plastics Acetal Delrin POM Rod Sheet Plate , 10-100mm polyoxymethylene delrin pom sheet Low friction coefficient Polyacetal sheet,delrin sheet
What is Polyacetal sheet ?Delrin sheet is a kind of engineering plastic with good mechanical properties. Known as one most abrasion resistant plastic, It has almost the same rigidity as metal, so it's an ideal replacement material of copper, cast zinc, steel, aluminum and other metal materials. We are able to produce POM products without bubbles or cracks.
What are the Color & Size of Polyacetal shee?
Color : White /Black/Blue/Red / Green/Purple/Yellow any panton color customized
Size: 3000x1000mm / 2000x1000mm / 1000x1000mm / 600x1200mm / Other cutting size
Thickness: 0.3-1mm 2-8mm 10-50mm 55-100mm 110-180mm
What is Polyacetal sheet performance ?
High mechanical strength
Dimensional stability
Excellent machinability
Good creep resistance
Very low stick-slip
Physiologically inert
Low moisture absorption
Continuous use at temperature -50ºC to +110ºC
Where is Polyacetal sheet application ?
Precision gears, springs, wheels, connecting rod, impeller blades
Bearings with close tolerance
Electrical engineering insulations
Snapfit assemblies
Automobile industry
Toys, windows, water tanks and so on

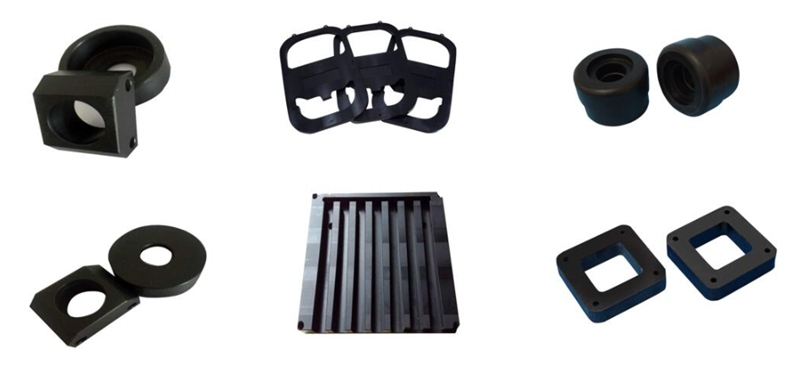

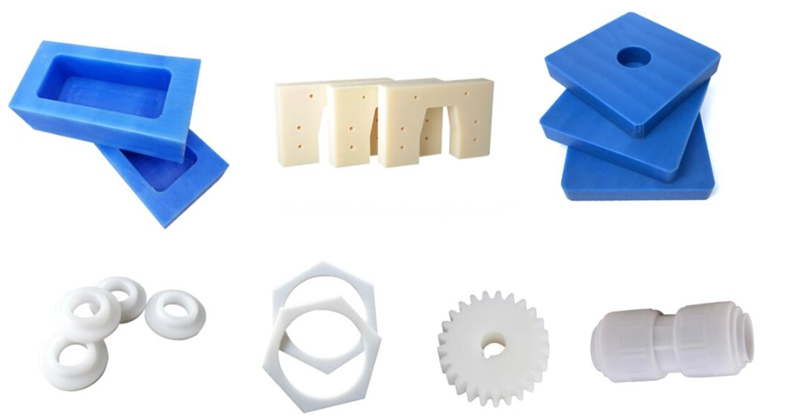

Machining Service
Low friction coefficient Polyacetal sheet,delrin sheet
Do you need a machining service ?
1. Professional engineering team quote for you
2. Professional machining machine customize for you
3 Prior Sample supply you to confirm quality
Supply Ability
30000 Kilogram/Kilograms per Month polyoxymethylene delrin pom sheet
Packaging & Delivery
Packaging Details
polyoxymethylene delrin pom sheet Packing-Fumigation Export Wooden Pallet:
1. Quantity: 3000 kgs/pallet;
2. Wooden Pallet Size: 200x100x115 cm;
3. Gross/Net Weight: 3050/3000 kgs;
4. Container Capacity: 30000 kgs(10 pallets) or 27000 kgs(loose packing)for 1x20' GP
|

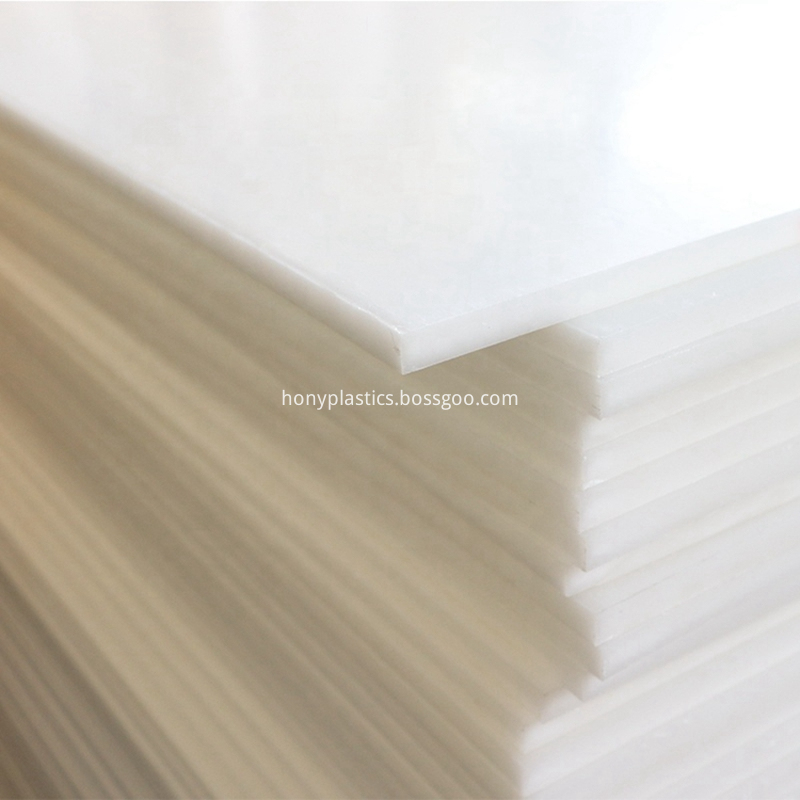

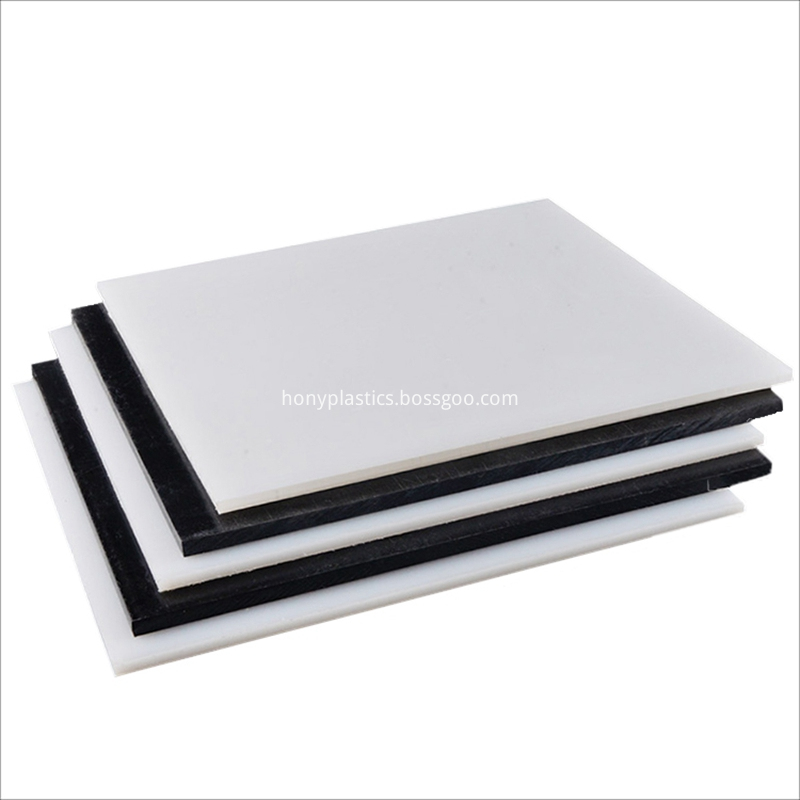

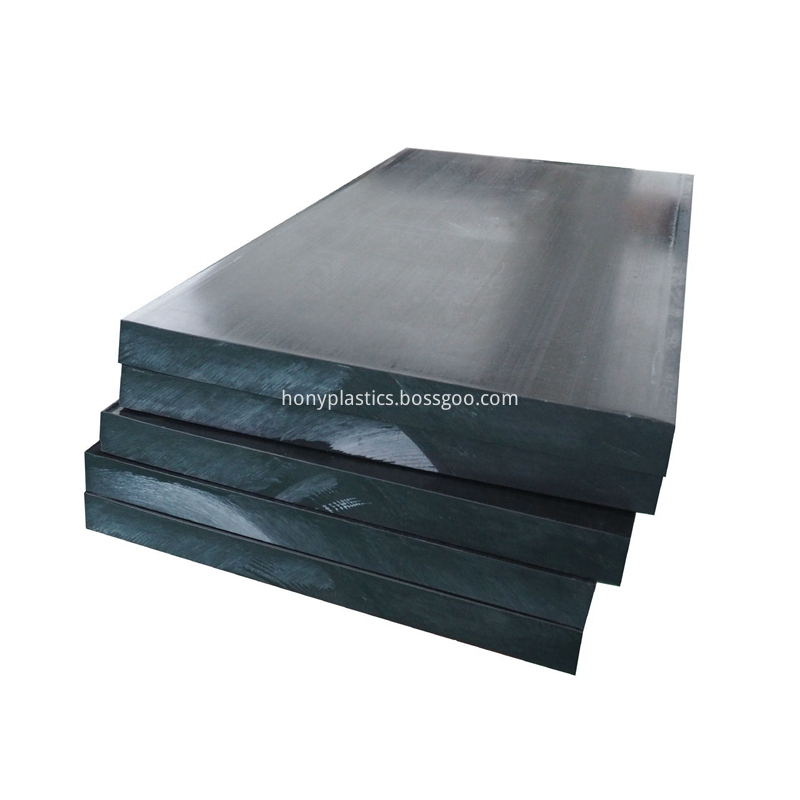

HONYPOM Acetal Delrin sheet size |
|
| Thickness(mm) | Width x Length (mm) |
| 0.3-1.5mm(in roil) | W: 700mm , any length |
| 2-5mm | 620 x 1200mm |
| 6-12mm | 620 x 1200mm |
| 16-60mm | 1000 x 2000mm , 1220 x 2440mm |
| 65-200mm | 620 x 1200mm, 1000 x 2000mm |

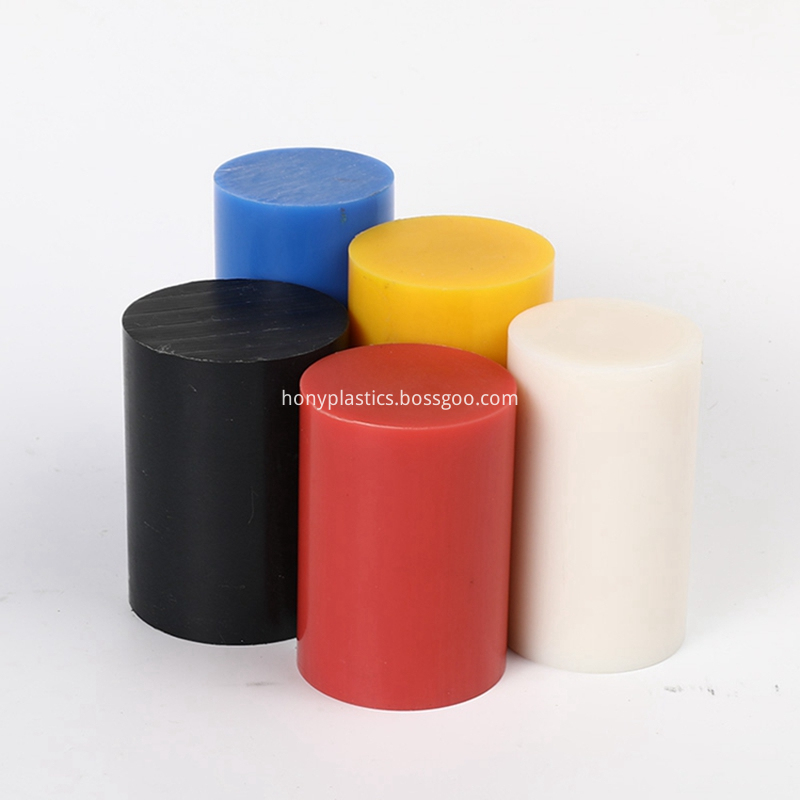

| HONYPOM Acetal Delrin rod size | |
| Diameter(mm) | Length(mm) |
| 2-5mm(in roil) | Any length |
| 6-100mm | 1000mm , 3000mm |
| 110-250mm | 1000mm |
| HONY POM Technical Data Sheet |
|
|
|
| Property item | Testing method | Unit | Testing data |
|
Mechanical properties |
|||
| Density | ASTM D792 | g/cm3 | 1.43 |
|
Tensile strength at yield |
ASTM D638 | Mpa | 60 |
|
Elongation at break |
ASTM D638 | % | 30 |
|
Bending strength |
ASTM 790 | Mpa | 100 |
|
Flexural modulus |
ASTM 790 | Mpa | 2800 |
|
Shore Hardness |
ASTM D2240 | D | 85 |
|
Impact strength |
ASTM D256 | J/M | 74 |
|
Thermal performance |
|||
|
Melting point |
DSC | ℃ | 165 |
|
Heat distortion temperature |
ASTM D648 | ℃ | 130 |
|
Long-term working temperature |
- | ℃ | 100 |
|
Short-term working temperature |
- | ℃ | 150 |
|
Thermal conductivity |
DIN 52612-1 | W/(K-M) | 0.31 |
|
Coefficient of linear expansion |
ASTM D696 | 10-5-1/K | 13 |
|
Electrical properties |
|||
|
Dielectric strength |
ASTM D150 | KV-mm | 19 |
|
Dielectric loss coefficient |
ASTM D150 | - | 0.007 |
|
Volume resistance |
ASTM D257 | Ω.cm |
1014 |
|
Surface resistance |
ASTM D257 | Ω |
1016 |
|
Dielectric constant |
ASTM D149 | - | 3.7 |
|
Chemical properties |
|||
|
Balanced water absorption |
23℃ 60%RH | % | 0.22 |
|
Acid resistance |
23℃ 60%RH |
|
+ |
|
Alkali resistance |
|
|
+ |
|
Acid and alkali water resistance |
|
|
+ |
|
Chloric acid and alkali resistance |
|
|
0 |
|
Resistant to aromatic compounds |
|
|
+ |
|
Copper resistance |
23℃ 60%RH |
|
+ |
|
Hot water resistance |
23℃ 60%RH |
|
+ |
|
Other properties |
|||
|
Combustibility |
UL 94 |
|
HB |
|
Stickiness |
|
|
+ |
|
toxic free and safe |
EEC 90/128 FDA |
|
+ |
|
Coefficient of friction |
DIN 53375 |
|
0.35 |
|
anti-UV |
- |
|
0 |
Remark:
1."+" Tolerable , “-”Intolerable , "0" Depends on the situation
2. The above data is obtained from raw material test data, which is not completely consistent with the performance of the finished product, and the uniqueness of the data is not guaranteed
