Product details

96% al2o3 ceramic sheet scribing thin disc

Reputation depends on quality,  quality comes from Hard!


Alumina Ceramic:

The γ-type alumina is obtained by dehydrating aluminum hydroxide at a low temperature of 140-150 ° C, and is also called activated alumina or aluminum rubber in the industry. In the structure, oxygen ions are closely packed in the vertical direction, and Al3+ is irregularly distributed in the octahedral and tetrahedral voids surrounded by oxygen ions. Γ-type alumina is insoluble in water, soluble in strong acid or strong alkali solution, and it is converted to α-alumina by heating it to 1200 °C. Γ-type alumina is a porous material with an internal surface area of several hundred square meters per gram and high activity and high adsorption capacity.

properties:

High hardness, high strength, wear resistance, corrosion resistance, high temperacture (1600°), good thermal diffusivity, good insulativity, low cost etc.

alumina ceramics

Data Sheet↓

Color: White/Ivory
Density: 6.0g/cm3
Zirconia Content: 94.4%
Gas permeability: 0
Water Absorption: 0
Crystal Size: 0.5um
Rockwell Hardness(45N): 78R45N
Vickers Hardness (Load 500g): 11.5(1175)Gpa(Kg/mm²)
Flexural Strength(20°C): 800Mpa
Compressive Strength(20°C): 2000Mpa
Modulus of Elasticity(20°C): 9.0 MPam1/2
Thermal Conductivity(20°C-400°C): 2.5W(m.K)
Thermal Expansion Coefficient: 9.6 10-6/°C
Thermal Shock Resistance: 250 △T°C


Application industry: Machinery, electronic, chemical, petroleum etc.
Specific application: Electrical ceramic substrate, plunger, sealing ring etc.


Company Information:

Shenzhen Hard Precision Ceramic CO.,Ltd founded in 2007, located in Shenzhen of China. We are a company that integrates development, design, molding, sintering, production and sales of precision ceramic products. After 10 years of development, we have cooperated with more than 2000 customers and 60 universities; Our factory covers an area of 2000 square meters, 50 employees, and annual production value of nearly 20 million. We have a higher visibility and better reputation in the same industry.Our products include ceramic rods, tubes, plates, blocks and precision parts for industrial. We have all-line high precision equipments from ceramic forming, sintering to precision machining. Hope for a wide range of sincere cooperation with customers at home and abroad.


Why Choose Us?
1.12 years of professional production industrial ceramics factory
2.High quality products with low price
3.High precision parts with lowest tolerance
4.Show time for production
5.Has a group of experienced, professional and efficient R&D team
6.Has a good reputation in China and abroad.

7.MOQ is not limited, small quantity is welcome.

8.Vigorous team and good after-sales service

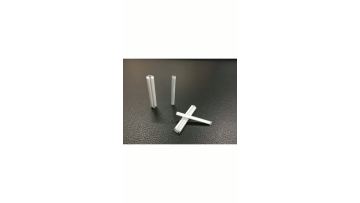

Products Show

alumina ceramic


Factory Show

alumina ceramic

alumina ceramic


alumina ceramic

Our Team


FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
