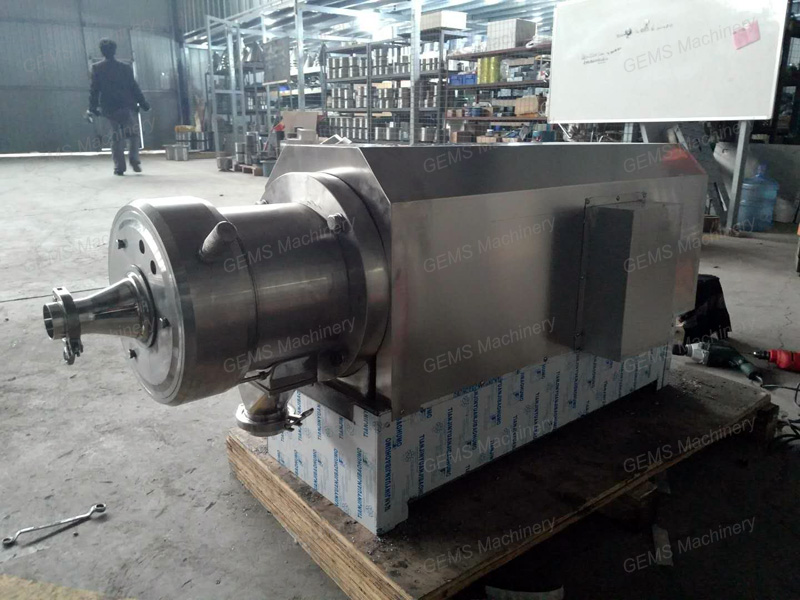

How the coconut meat grinder machine works:
The product to be ground is fed in via a hopper. A rotating cutter blade initially cuts the product. Then it is pressed through the holes in the static disk. The ejector blade rotating under the perforated disc pulls the finished product from the cutting zone and carries it to the open outlet of the mill.
Technical Parameters of Coconut Grinder Machine:
| Model |
Power |
Capacity |
Rotation |
Rotor Dia. |
Dimenison |
Weight |
|
GMS-JT50 |
1.1kw |
10-30kg/h |
2820rpm |
50mm |
520*250*555mm |
67kg |
|
GMS-JT80 |
4kw |
70-100kg/h |
2890rpm |
80mm |
685*335*928mm |
173kg |
|
GMS-JT110 |
7.5kw |
200-300kg/h |
2930rpm |
110mm |
700*430*1000mm |
235kg |
|
GMS-JT130 |
15kw |
400-600kg/h |
2930rpm |
130mm |
975*456*1054mm |
330kg |
|
GMS-JT180 |
22kw |
800-1000kg/h |
2930rpm |
180mm |
981*476*1124mm |
420kg |
|
GMS-JT240 |
45kw |
1500-2000kg/h |
2970rpm |
240mm |
1319*500*1276mm |
1000kg |
|
GMS-JT300 |
75kw |
3000-4000kg/h |
2970rpm |
300mm |
1400*620*1400mm |
1600kg |
1. The main spar parts are stator rotor, which are made of 3Cr13 food grade stainless steel. The sevice life is much longer. We also provide customization for it.
2. For outlets, we have round and square two types.
3. This coconut grinder machine is with cooling device, which can keep the machine in low temperature.
4. For hoppers, we can customize it as your needs for free.
5. If you process the special raw materials, we can provide explosion-proof motor.
The Horizontal Types:
Wooden Package & Exporting Cases:
We exported to USA, Portugal, Australia, Ecuador, Chile, South Africa, Panama, Netherlands, Greece, Zambia etc more than 30 countires. We promise export standard free fumigation wooden box.
We also have the coconut dehydrator machine: We also have the fruit vegetable crusher, fruit vegetable dehydrator machine and flour (powder) grinding machine to get coconut powder. The final powder is very smooth.
