SMC Type Pneumatic Air Regulator AR2000 AR3000 AR4000
Filter, regulator, and lubricator (FRL) compressed air systems are used to deliver clean air, at a fixed pressure, and lubricated (if needed) to ensure proper pneumatic component operation and increase their operation lifetime. The air supplied by compressors is often times contaminated, over pressurized, and non-lubricated meaning that an FRL unit is required to prevent damage to equipment. Filters, regulators, and lubricators can be bought individually or as a package depending on what is needed to ensure the proper air specifications are being met for downstream equipment.
* Filters: remove water, dirt and other harmful debris from an air system. This is often the first step in improving the air quality.
* Regulators: adjust and control the air pressure of a system to ensure that down-line components do not exceed their maximum operating pressures. This is the second step in the FRL system.
* Lubricators: reduce the internal friction in tools or equipment by releasing a controlled mist of oil into the compressed air. This is often done last and/or right before the component needing lubrication.

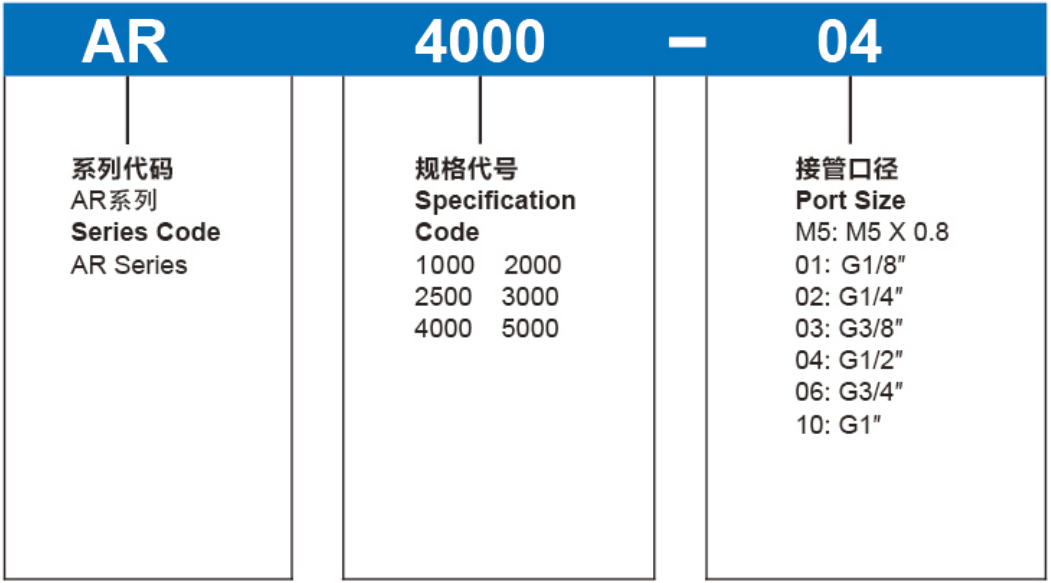

Ordering Code of AR Series Pneumatic Regulator:

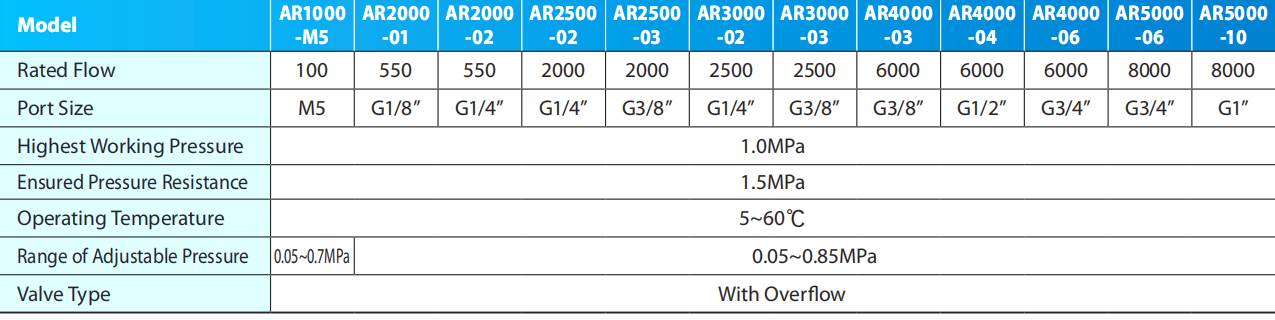

Specification of AR Series Pneumatic Regulator:

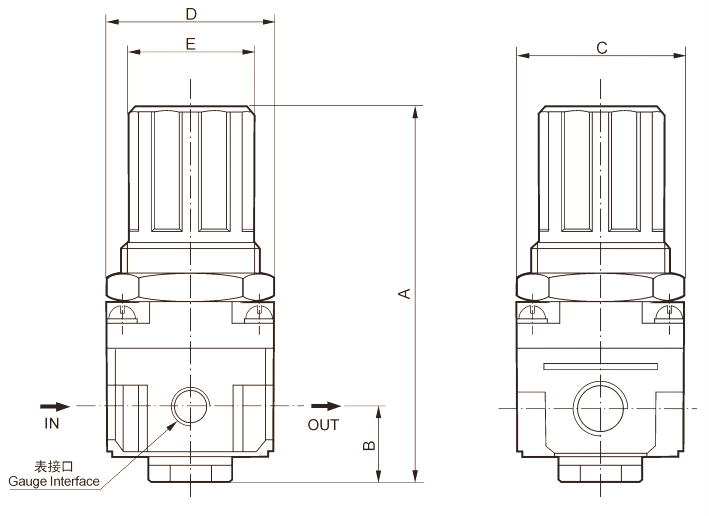

Dimension of AR Series Pneumatic Regulator:
|
Model
|
Port Size
|
A
|
B
|
C
|
D
|
E
|
|
AR1000
|
M5
|
61.5
|
11
|
25
|
25
|
28
|
|
AR2000
|
G1/8'', G1/4''
|
95
|
17
|
40
|
40
|
34
|
|
AR2500
|
G1/4'', G3/8''
|
102.5
|
25
|
48
|
53
|
34
|
|
AR3000
|
G1/4'', G3/8''
|
127.5
|
35
|
53
|
53
|
40
|
|
AR4000
|
G3/8'', G1/2''
|
149.5
|
37.5
|
70
|
70
|
54
|
|
AR4000-06
|
G3/4''
|
154
|
40.5
|
70
|
75
|
54
|
|
AR5000
|
G3/4'', G1''
|
168
|
48
|
90
|
90
|
54
|
