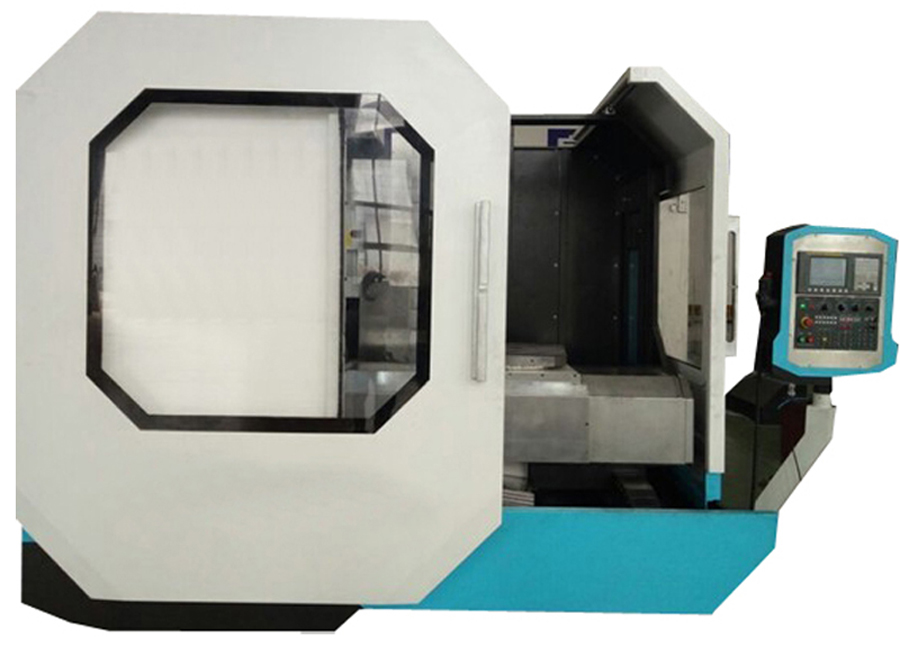

CNC Horizontal Turning Machine
Product Characteristic
1.HMC630B has an inverted T structure with high spindle speed, high rigidity and large torque with perfect performance, stable precision,
2.The CNC Machine Tools is suitable for processing various of box parts and 2D and 3D hook surfaces.
3.It’s equipped with the following configuration:
① FANUC Oi MF controller.
②Equipped with an integrated gearbox.
③The max. spindle speed is 3000rpm,which is suitable for low- speed heavy cutting.
④24pcs arm type tool magazine.
⑤Spindle and gearbox thermostat oil cooling.
4.It can be equipped with Vertical Machining Centers, Gantry Robot, Gripper And Claw as well as Stock Bin Silo to realize the function of automatic production.
Technical Parameters
|
Technical Parameters |
Unit |
HMC630B |
|
Travels |
|
|
|
X/Y/Z Axis |
mm |
1000/800/800 |
|
Work table |
|
|
|
Table Number |
# |
Single |
|
Size (LxW) |
mm |
630x630 |
|
Maximum loading capacity |
kg |
1200 |
|
Indexing |
° |
1。X360。 |
|
Positioning accuracy |
arc-second |
10" |
|
Repeated positioning accuracy |
arc-second |
2" |
|
Feed rate |
|
|
|
Rapid feed rate(X/Y/Z) |
m/min |
‘32/32/32 |
|
Spindle |
|
|
|
Speed |
rpm |
30-3000 |
|
Maximum torque |
N.m |
235 (Belt) |
|
Spindle motor power |
kw |
15/18.5 |
|
Tool change system |
|
|
|
Tool magazine capacity |
pcs |
32 |
|
Maximum weight of tool |
kg |
25 |
|
Type of tool shank |
# |
BT50 |
|
Accuracy |
|
|
|
Positioning accuracy |
mm |
±0.005/300 JIS |
|
Repeated positioning accuracy |
mm |
±0.003/300 JIS |
|
CNC control system |
|
|
|
Controller |
# |
FANUC 0I-MF |
|
Others |
|
|
|
Weight |
kg |
16000 |
Standard configuration:
※Chain Type Tool Magazine With 32 Tools,
※Taiwan BT50 Spindle
※Taiwan HIWIN Ball screw And Linear Guideway
※Taiwan CNC Rotary Table
※Germany Bearing, Centralized Lubrication,Full Protection
※Electrical Hand Wheel,Alarm Light,Rs232 Interface
※Screw Type Chip Conveyor With Chip Flush
