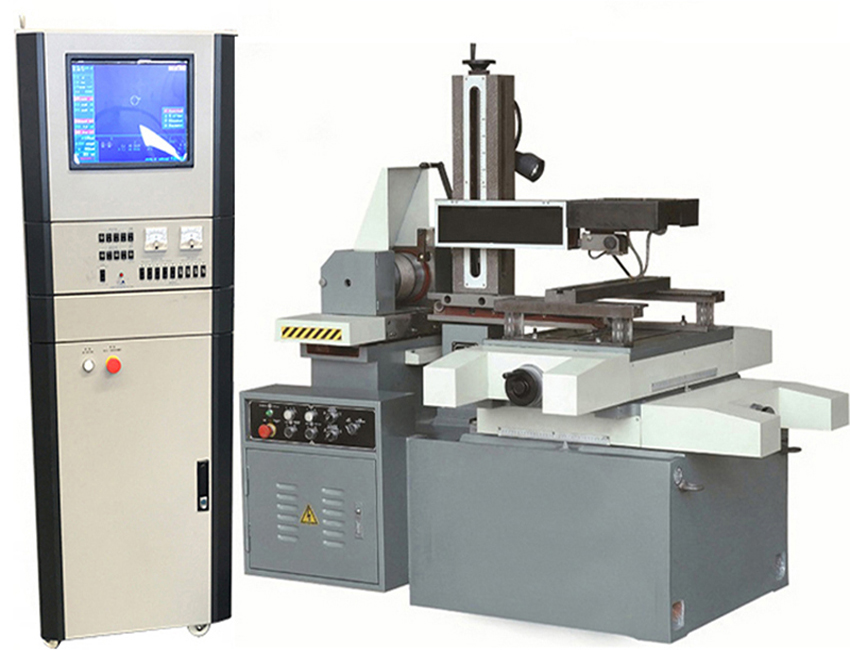

One-Pass Wire Cut Electrical Discharge Machine
Product Characteristic
① DK7732B has a unique function board plug-in structure.
② It can cut big thickness work pieces, and the cutting materials are die steel and cemented carbide.
③ Real-time display of the wire cutting process: by switching the cutting screen, not only can the processing status of multiple wire cutting machine tools be monitored at the same time, but also the change value of the current processing coordinate, the current processing step number, the total number of processing steps, The total number of processing segments, processing progress and processing codes, etc.
Technical Parameters
|
Technical Parameters |
Unit |
DK7732B |
|
Travel of X and Y Axes |
mm |
320x400 |
|
Maximum cutting thickness |
mm |
400 |
|
Maximum Work piece weight |
kg |
300 |
|
Wire diameter |
mm |
Standard 0.18 mm; Optional: 0.12-0.2 mm. |
|
Cutting Taper |
°/mm |
6°/ 80 mm |
|
Work Table Size (LxWxH) |
mm |
360x610x400 |
|
Surface Roughness /Ra |
u.m |
Ra≤2.5 |
|
Numerical Control System |
# |
X8, HF SYSTEM or HL SYSTEM |
|
Display |
# |
Latest |
|
Serial Interfaces (V.24) |
# |
RS 232C, Ethernet port, USB |
|
Remote control |
# |
Including |
|
3-D Graphical Preview |
# |
Including |
|
Total machine power |
KV |
1.8 |
|
Precision |
mm |
0.015 |
|
Maximum cutting speed |
mm2/min |
150 |
|
Wire speed |
m/s |
11 |
|
Minimum feed increment |
mm |
0.001 |
|
Pulse width adjustable range |
us |
15-150 |
|
Maximum power consumption |
KVA |
≤2 |
|
Machine size (LxWxH) |
mm |
1200x1170x1400 |
|
Machine weight |
kg |
1150 |
|
Machine control cabinet size (LxWxH) |
mm |
1200x800x800 |
|
Machine control cabinet weight |
kg |
150 |
Standard configuration:
※AC Power Supply:220 or 380V, 50 Hz, 3 phase
※Molybdenum Wire:200 M
※Remote Control:1 Piece
※Wire Tensioner:1 Piece
※Coolant Filter:1 Piece
※Coolant:1 Piece
※Work Lamp:Including
※Work Piece Fixture:1 Set
If you are interested in the product, contact 2bvideo.com for more information for more information
