Specification |
JB-500B |
|
Impact energy |
500J 250J |
|
Impact velocity |
5.4 m/s |
|
Raising angle |
150° |
|
Standard span |
40mm |
|
Round angle radius of grips |
R1-1.5mm |
|
Round angle radius of striking edge |
R2-2.5mm |
|
Power supply |
3phase,380V,50HZ,180W |
|
Dimension (mm) |
2124X600X1340 |
|
Net weight |
750 kg |
|
Size of specimen |
10mm x 10mm x 55mm (U,V 2mm Notches) |
Standard delivery:
1> big pendulum (500J): 1 pc
2> Small pendulum (250J): 1 pc
3> Span specimen plate (L=40mm) : 1 pc
4> Specimen centering plate (L=40mm) : 1pc
5> Detaching device: 1 pc
6> Simple-head spanner (S=30mm): 1pc
7> Inner-hexagon spanner (S=12mm): 1pc
8> Anchor bolts M16*30mm: 4pc
9> Jaws (including bracket): 1 set. Notes, has been installed on the host

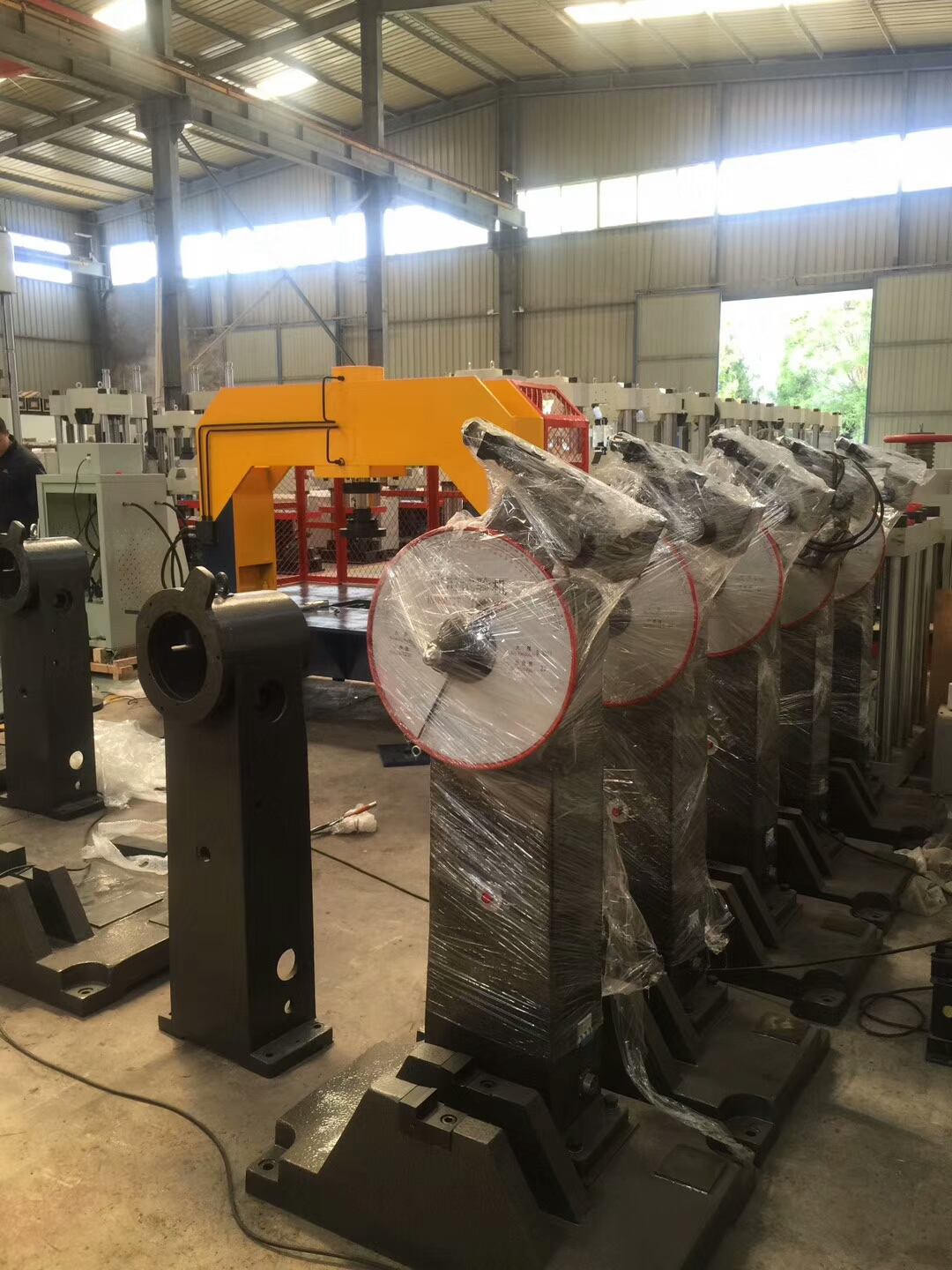

Machine Photo:
