WDW-200E

3 year ago

44 0

Jinan Chenda Testing Machine Manufacturing Co., Ltd.

 10 year year

Product details

Brief Information

WDW-E series Computer control electronic universal testing machine is a high-precision, multi-purpose material testing machine for testing the mechanical properties of various metal materials, non-metal materials, composite materials, polymer materials and other materials. The servo motor drives the precision ball screw to rotate through the deceleration system, and drives the loading beam to move up and down to complete the tensile, compression, bending, shearing, tearing, peeling, puncturing, bursting and other tests of the sample or component. Both the stretching space and the compression space can be adjusted automatically by the rotation of the lead screw and driving the middle beam to move up and down.

The precision closed-loop control system composed of controller, servo motor, load sensor, displacement sensor, extensometer and computer can automatically and accurately control the test process and automatically measure test parameters such as test force, displacement and deformation.

The testing machine can realize tests such as constant rate test force, constant rate deformation, and constant rate displacement, and can realize three-stage control of force, deformation and displacement in one test, and the control can be smoothly switched

The test parameters are collected by computer and processed by software, which can automatically control the test process and automatically obtain the test results. The test curve and test results are displayed on the computer screen in real time, and the test report and test curve can be printed.

Technical specification:

Specification	WDW-100E	WDW-200E
Max. Test force（kN）	100	200
Testing Machine accuracy	0.5 glass	0.5 glass
Relative error of test force indication	Within ±0.5％	Within ±0.5％
Test force measurement range	0.4％－100％FS	0.4％－100％FS
Deformation (Extensometer) Measuring Range	1%--100%FS	1%--100%FS
Deformation indication relative error	Within±0.5％	Within ±0.5％
Strain Control Rate Range	0.005-0.5FS/S	0.005-0.5FS/S
Crosshead moving stroke (mm)	900	900
Crosshead moving speed(mm/min)	0.001～500	0.001～500
Effective test width（mm）	600	600
Maximum tensile space（mm）	600	600
Maximum compression space（mm）	600	600
Round Grips（mm）	Φ4～Φ20	Φ4～Φ20
Compression platen size（mm）	Ø100	Ø100
Frame dimension（length×witdth×height mm）	8607201978	1110×770×2558mm
Total power（kW）	1000W；	3500W；
Weight（kg）	1000	1600
Power	380V/50Hz±10%	380V/50Hz±10%

Standard delivery:

No.	Name		Quantity	Remark
1	Electronic universal testing machine frame		1	JINAN CHENDA
1.1	Load cell	Import well-known brands	1	TRANSCELL
1.2	Ball screw		2	TAIWAN ABBA
1.3	Deceleration system	Reducer and timing belt	1
2	Controllers and Control Software	Fully digital closed-loop electrical system	1	MAXTEST
3	servo motor		1	JAPAN Panasonic
4	Testing accessories			JINAN CHENDA
4.1	Round grips	Φ4-φ9，φ9-φ14，φ14-φ20，（φ9-φ14，φ14-φ20，Φ20-φ26）	1	JINAN CHENDA
4.2	Flat grips	0-7,7-14,14-20	1	JINAN CHENDA
4.3	Compression platen	φ100	1	JINAN CHENDA
4.4	Bending accessory		1	JINAN CHENDA
5	Computer and Tools			Lenovo
5.1	Brand computer		1	Lenovo
5.2	Accompany tools		1	JINAN CHENDA
6	Document files		1
6.1	Testing machine software	Hard disk	1	JINAN CHENDA
6.2	Product certification		1	JINAN CHENDA
6.3	Instruction Manual		1	JINAN CHENDA

Machine frame:

The frame is a desktop double-space door structure. The transmission principle is that the motor drives the ball screw pair to rotate after being decelerated by the reducer system, thereby driving the middle beam to move up and down to complete the test, with stable transmission and low noise.

Wdw 200e

Electronic Universal Testing Machine In Our Work Shop

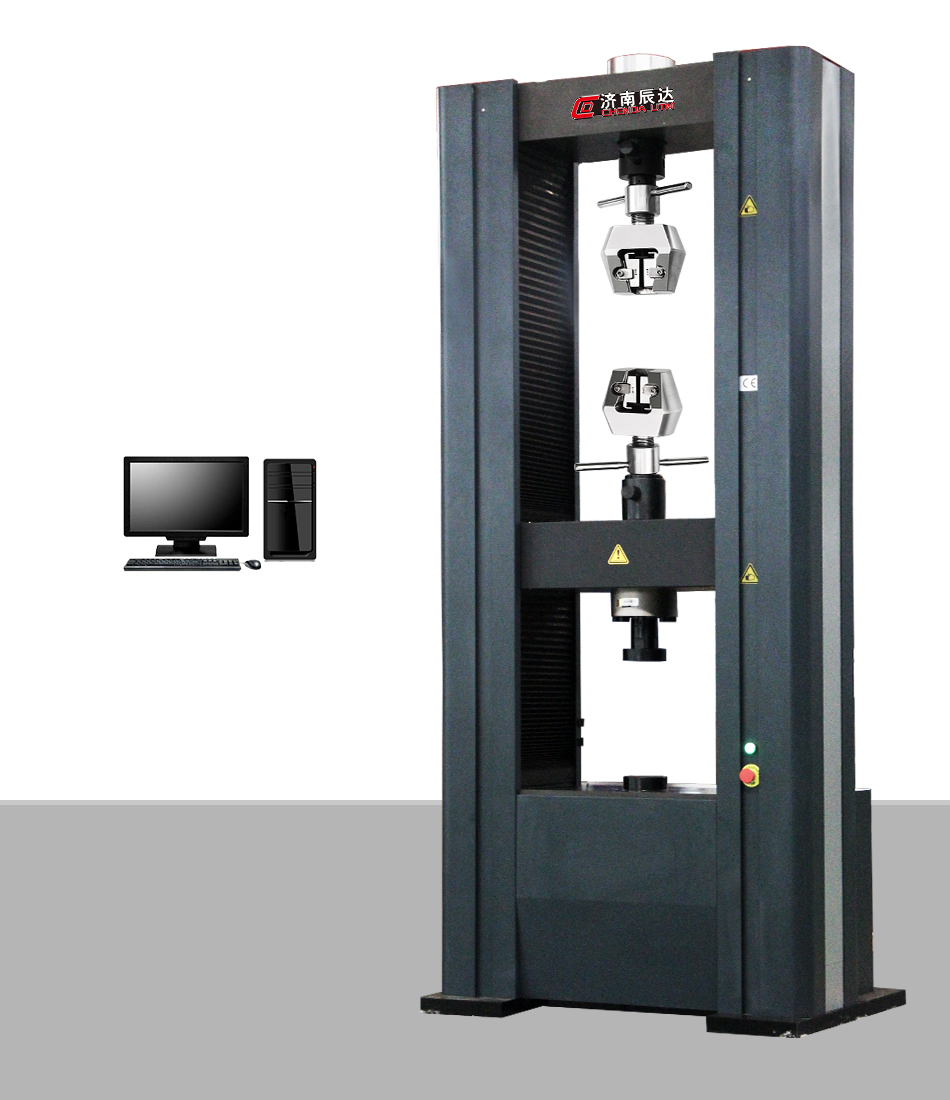

200KN Electronic Universal Testing Machine

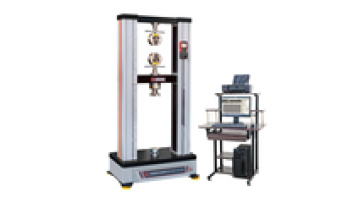

300KN Electronic Universal Testing Machine Tensile Test

Software Interface Of Electronic UTM -Max Test
