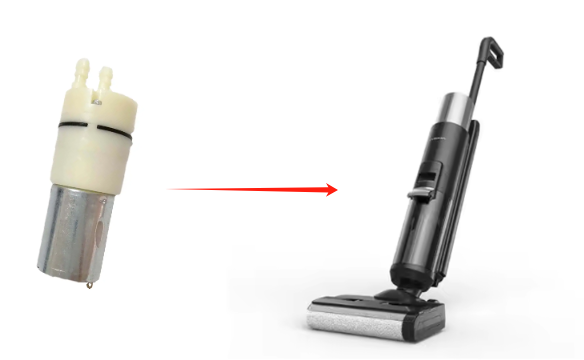

How many watts is the power of the dc diaphragm water pump used for the spray mop?
As for the specific power of the mini water pump for the spray mop, it usually depends on the design and specifications of the product. Different spray mops may use different micro diaphragm water pumps, and the power of these water pumps will also vary.
In the market, the power range of spray mops may vary, but in general, the power of the micro diaphragm water pump used for this application is usually not particularly large, because the function of the spray mop is relatively simple and does not require a lot of power to drive the water pump. The general power is less than 5.4W.
How to improve the efficiency of mini diaphragm pump in spray mop?
1. Optimize the design of the pump: By improving the structural design of the micro water pump, such as optimizing the shape and size of the pump cavity, reducing internal friction and energy loss, the working efficiency of the pump can be improved.
2. Choose the right material: Using wear-resistant and corrosion-resistant materials to manufacture the pump body and diaphragm can extend the service life of the pump while reducing the performance degradation caused by material wear.
3. Control the running speed of the pump: According to the actual needs of the spray mop, reasonably control the running speed of the micro-diaphragm water pump. Too high a speed may cause energy waste and overheating of the pump, while too low a speed may affect the spray effect.
4. Ensure good sealing: Strengthening the sealing performance of the pump to prevent liquid leakage and gas entry can ensure the stable operation and efficient work of the pump.
How long can a 12V water pump run in a spray mop?
The running time of a 12V self priming micro water pump in a spray mop depends on several factors, including the power of the pump, the battery capacity, the workload, and the conditions of use. Therefore, it is impossible to give an exact running time.
First, the more powerful the pump, the more energy it consumes, resulting in a relatively short running time. If the pump is efficient and the power consumption is properly controlled, it can run longer.
Second, the battery capacity used in the spray mop is a key factor. A larger battery can provide power for a longer time, thereby extending the running time of the pump.
In addition, the workload will also affect the running time of the pump. If the spray mop needs to spray water frequently or in large quantities during use, the workload of the pump will increase, resulting in a shorter running time.
Finally, the conditions of use will also affect the running time. For example, a high temperature environment may cause the battery to drain faster, thereby reducing the running time of the pump.
Technical Specification
| Model | DSB412-H | Voltage | dc6v 12v |
| Current |
<800mA |
Water flow rate |
>300mL/Min |
|
Life cycle |
>100,000 cycles (work for 2secs and stop for 2secs as a cycle ) |
Media |
Air, Water |
|
Product N.W |
65g |
Noise |
<60dB ( on a 5cm sponge, 30cm away from noise meter) |
What is the compatibility of micro diaphragm pumps for spray mops?
Due to the design characteristics of the diaphragm pump, it is generally more suitable for conveying clean water or low-concentration liquids, because these liquids will not corrode or damage the diaphragm. Therefore, in most cases, if the spray mop only needs to use clean water for spraying, the micro diaphragm water pump is a good choice.
However, when it is necessary to add cleaning fluid to the spray mop, the situation is different. Cleaning fluids often contain chemical ingredients that may react with the diaphragm material, causing damage to the diaphragm or deterioration of performance. In this case, a peristaltic pump may be a better choice.
