DYX mini solenoid valve DSF2-B is 2-way normally closed water valve , very simple to install, the inlet can be customized to 2 way, 3 way as request. It's food grade safety.
This liquid valve is widely used in coffee machine and water dispenser.
Product Features : Food grade safety
Low power consumption
Long lifetime
Low vibration
Technical Specification
|
Product model |
DSF2-B |
||
|
Voltage |
DC6.0V |
DC12.0V |
DC24.0V |
|
Current |
<550mA |
<320mA |
<150mA |
|
Power |
2.0-3.5W |
||
|
Pressure |
0-70Kpa |
||
|
Leakage |
leakage free |
||
|
Media |
Water |
||
|
Life cycle |
>50,000 cycles (work for 30secs and stop for 20secs as a cycle ) |
||
|
Working temperature |
5℃~55℃ |
||
|
Product N.W |
80g |
||
|
Water flow rate |
2.0-3.0L/Min |
||

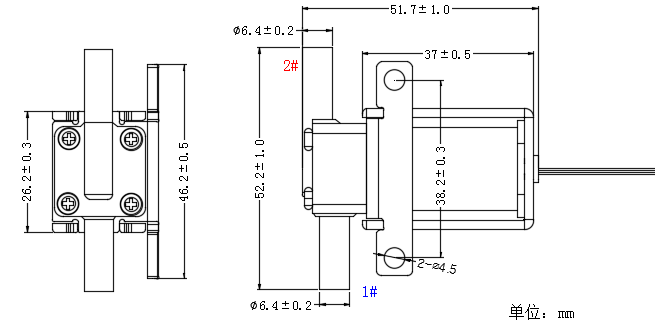

Dimension Drawing
|
Pump&Valve Application |
FAQ
1)Q: What's your MOQ?
A: Our MOQ is 1000 PCS.
2) Q: What's the lead time of mini pump and solenoid valve ?
A: 30-35 working days.
3) Q: What is the solenoid water valve working principle?
A: 3-way valves have three port connections. One valve seal always remains open and the other closed in the de-energized mode.
When the coil is energized, the mode reverses. The 3-way valve is designed with a plunger type armature. With the coil de-
energized, a spring holds the lower core seal tightly against the valve seat and shuts off the fluid flow.
4)Q: What can you buy from us?
A:Mini Air Pump,Mini Water Pump,Solenoid Pump,Mini Piston Pump,Mini Vacuum Pump,Peristaltic Pump,Solenoid Air/Water Valve.
