3micron Double Sided Aluminized Metallized BOPET Mylar Film

Our Both sides Aluminum Foil Metallized PET Mylar film can be used For Radiation Detector ,speakers and Precise Instrument.

It The thickness of Aluminum is 380A-3000A, Mainly thickness is 6micron , 7micron , 8micron , 12micron 24micron . Accept customized .

Both sides Metallized Polyester Film is a barrier film formed by depositing a thin layer of aluminum atoms onto high-quality PET Film by vacuum aluminum plating process. It has bright metal gloss, excellent gas and light barrier and good moisture-proof,heat-resistant and puncture resistance. It can replace aluminum foil and other advantages.With special technology, the film is metallized on both side with a thin aluminum to be a flexibepacking material for special usage.

Characteristics :

The PET metalllized film has good reflection ability to ultraviolet ray and infrared ray, can achieve the function of blocking ultraviolet ray, at the same time can make the film to improve the oxygen, moisture, and has the metallic luster.

Technical performance :

1.Thickness of aluminum plating is generally 0.02-0.06 m

2.Uniform aluminum coating.

3. Good Adhesion of aluminized layer.

4. Uv transmittance is less than 5%.

Technical Data Sheet

Metallized PET film
Properties		Units	Typical Values	Test Methods
Thickness		μm	3	DIN53370
Tensile Strength	MD	MPa	218	DIN53455-6-5
	TD		231
Elongation at Break	MD	%	111	DIN53455-6-5
	TD		114
Coefficient of Friction	F/F-μs	-	0.48	DIN53375
	F/F-μk		0.48
Heat Shrinkage	MD	%	2.0	BMSTT11
	TD		0.8
Thickness of Aluminum Layer		Ω/	2.0	Resistance Tester
Optical Density		OD	2.0	MACBETH TD904
Adhesion of Aluminum Layer		%	100	3M Gummed Tape
Tolerace of Aluminum Layer		%	6	Resistance Tester
Gloss		%	132.6	ASTM D2457
Surface tension		Dyne/cm	60	ASTM D2578

Images Shows

Application

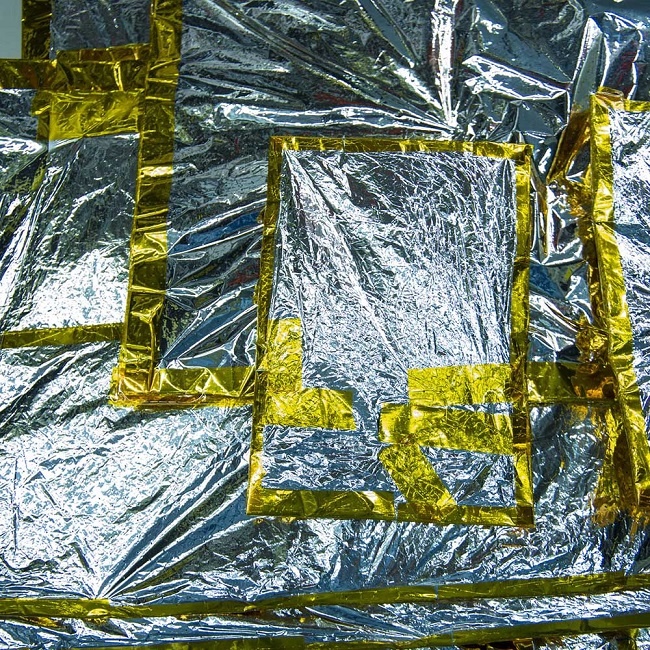

1.For space materials

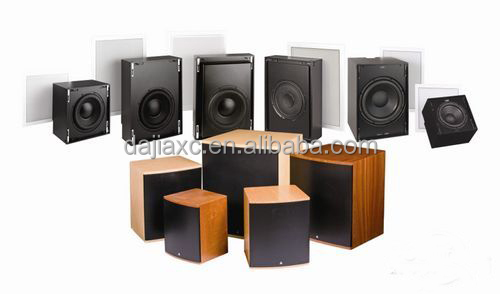

2. For Speaker Voice

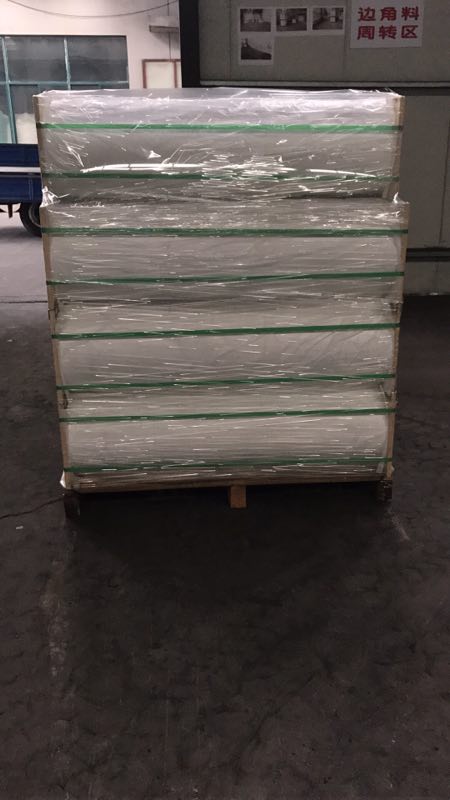

Pack 3 Jpg

Contact:

Our company is establised in 2004. we have much experience in plastic film.Our main products including 1.Metallized PET Film 2.PET color film (PET Milky White Film , PET White Film , PET Black film ect ) 3.3D Pepper's Ghost Foil (3D Holographic projection foil) 4. Polyimide Film/Metallized Polyimide film
These products are widely applied to the packaging and printing of the industries including electronical products, food, commodities, medicine, labels, gifts etc.If you need anything, please feel free to contact me.
