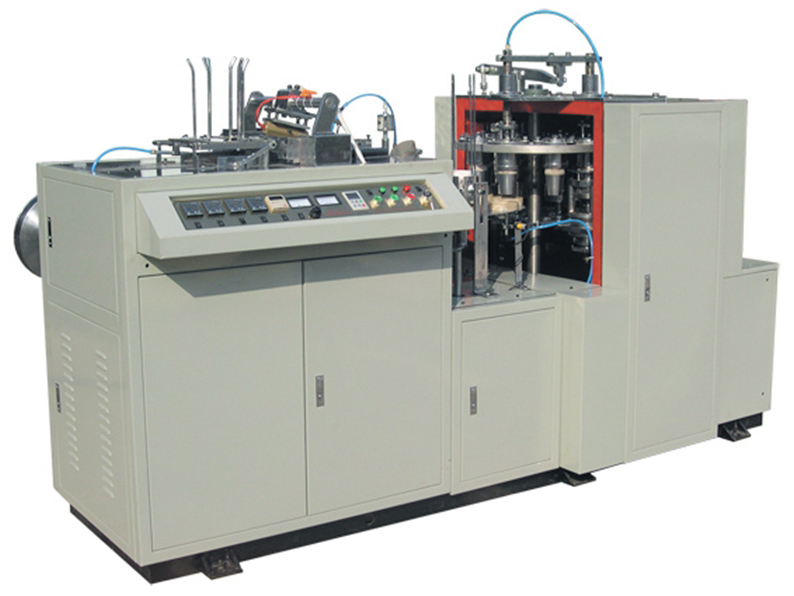

Main Technical Data:
Paper Cup Sizes: 3,4,5,6.5,8,9,10.5,12,16,18 OZ or other sizes
Row material: Single side(one side) or Double Sides PE(polyethylene) film coated paper
Suitable paper weight: 170gsm--420 gsm (Recommend 190--320 gsm)
Speed of making paper cups: 40--50 pcs per minute
Limit of temperature control: 0--400 Centigrade
Total power: 5.5KW
Power source: 380 V,220V 50 Hz,60 Hz or other Customer needed
Whole machine weight: 1450 kg
Appearance size(L x W x H): 2500 x 1200 x 1400 mm
Note:We can make the paper cup machine suitable for your requirement.
Paper Cups Dimensions Range/Limit......Click image to Enlarge
Paper cup bottom diameter (outside) , Min 30mm---Max 78 mm
Paper cup top diameter (inside) , Min 45mm---Max125mm
Paper cup height , Min 32mm ---Max 130 mm
the top curling diameter, from 2.4mm to 5mm, this is decided by the paper weight(the paper thickness),
Finished Products' Usage
Finished Products' Usage:
Double sides PE coated paper cups are widely used for all kinds of drinks: hot drinks(hot coffee cups, hot water cups), cold drinks paper cups(ice-cream cups),all kinds of beverage, and some other special use
From above image, the first row are single SIde PE coated paper cups, the second and the third row are Double PE coatd paper cups under 18oz, the forth row are higher paper cups(higher than 130mm, maken in SPeical Paper Cup Machine)
The above image show the ice-cream paper cups, (single side and double side PE coated paper cups)
Specification:
Automatic control adopts optically controlled non-contact switch,
Micro-controlled transducer,
Step-less speed adjustment,
Paper Cup-fan-wall body sealed by Ultrasonic System,
Paper Cup bottom sealed by heater.
Full automatic,
Easy changing molds produce different sizes paper cups,
Easy operating by operator (one operator is enough),
Easy maintenance with minimum cost,
Cheap operating cost and low investment,
Amelioration:Air compressor aren't required for this type paper cup machine when the paper weight under 300gsm.
