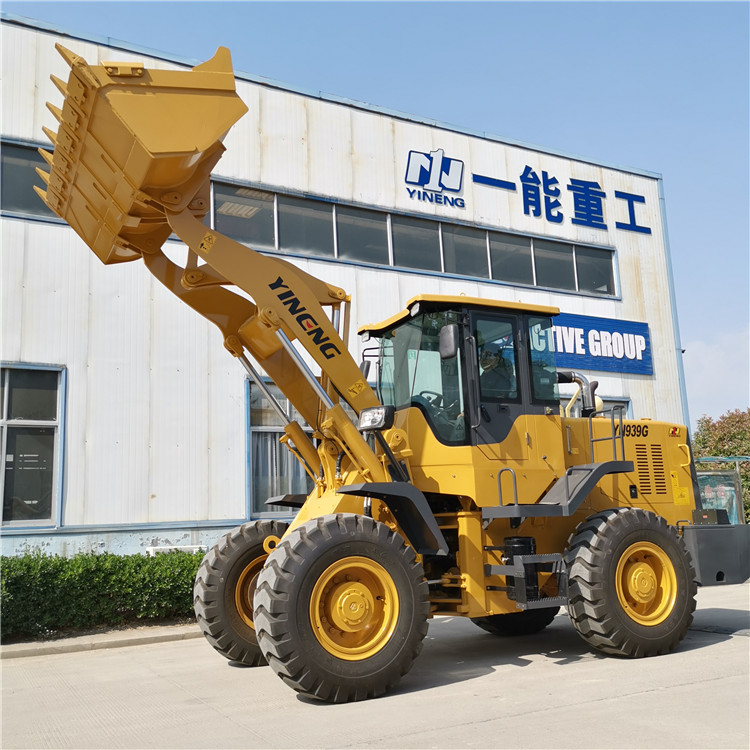

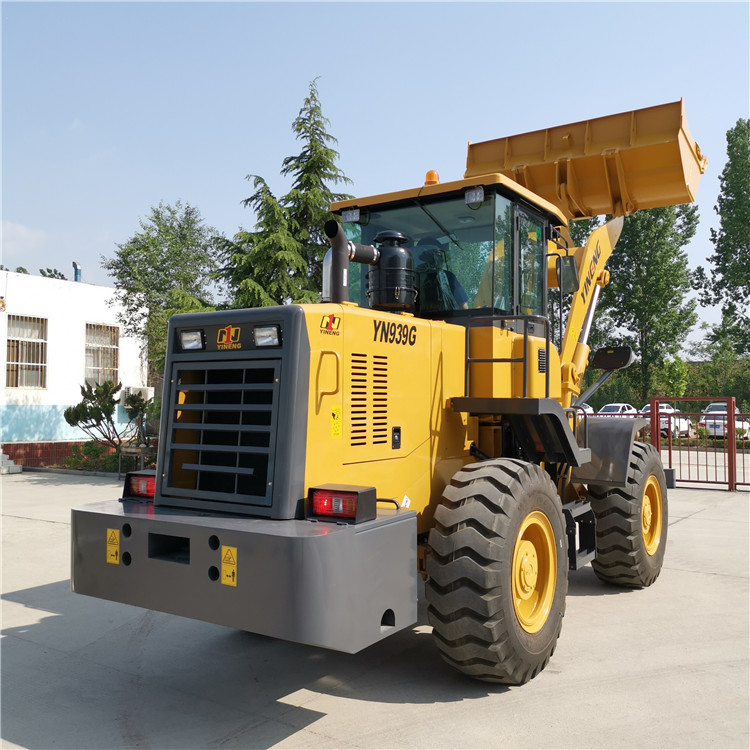

Yineng 3 Ton Wheel Loader FEATURE：
*Fully hydraulic load sensing steering system, flexible operation and higher reliability.
*Air over hydraulic disks on four wheel brakes.
* Large space articulated frames make operation and traveling stable.
*Working device with automatically levelling ability at high position.
*Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

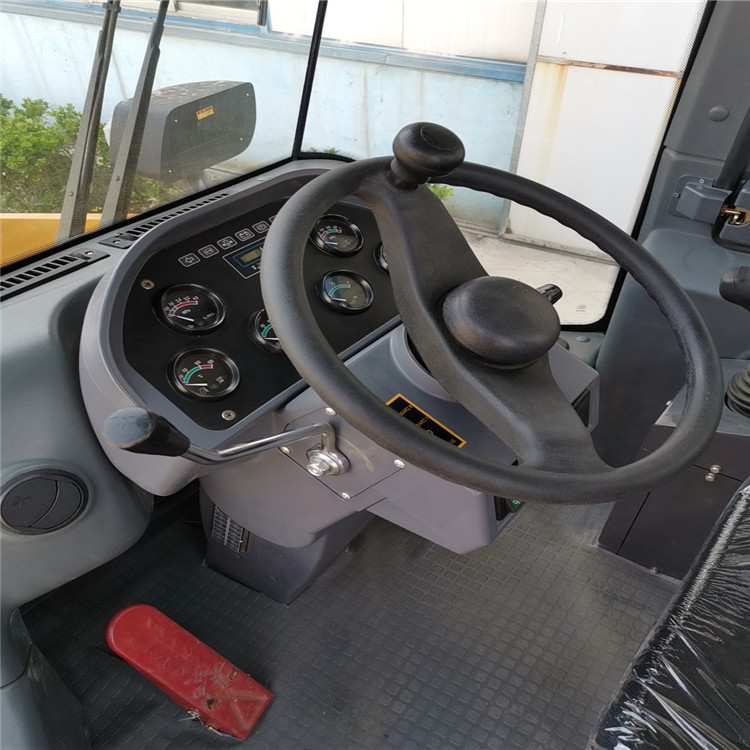

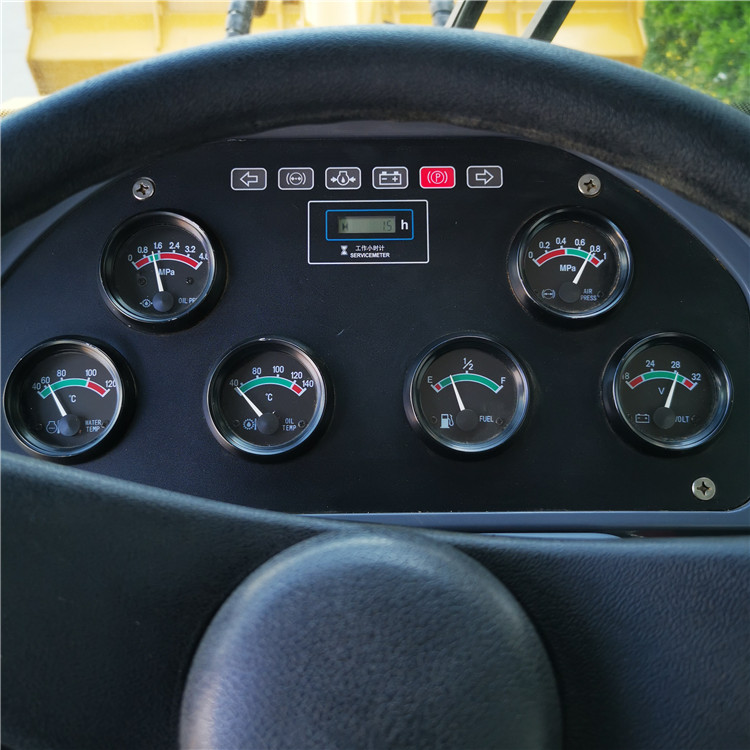

*Integral, luxury instrument board.
*New, luxury cabin.
*Weichai DEUTZ diesel engine, higher power and reliability.
*Hangzhou Advance Gear Group ZL50 double-turbine hydraulic torque converter with reasonable structures and higher reliability make the loader obtaining more drawing force.
*Gear-shift with 2 forward and 1 reverse controlled by flexible shaft eases much labour.

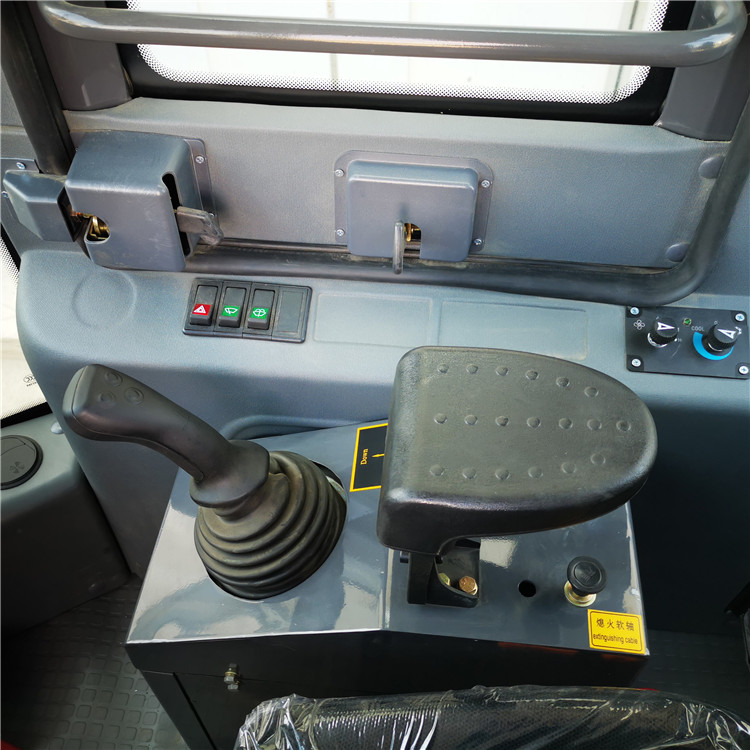

*Single lever joystick control system, comfortable and flexible operation.
*Single pump, split flow working hydraulic system realizes the excellent fuel economy.
*Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;
2- Main technical parameter
|
Item |
Parameter |
Item |
Parameter |
|
Capacity |
1.8 m3 |
Turning radius (outside of rear wheel) |
5160mm |
|
Rated load capacity |
3000 kg |
turning angle |
36º each direction |
|
Dumping clearance |
3050 mm |
Min. ground clearance |
380mm |
|
Dumping reach |
1105 mm |
wheel base |
2700mm |
|
Bucket lifting time |
5.5 S |
wheel tread |
1865mm |
|
Total cycle time |
10 S |
Engine |
TD226B |
|
Max. speed |
36km/h |
Engine power |
92kW/2300rpm |
|
Max.breakforce |
120 kN |
Tyre size |
17.5-25 |
|
Max.drawing force |
96 kN |
Overall Dimensions (length*wide*height) |
7020*2510*3375 mm |
|
Max. grade ability |
30° |
Whole operating weight |
10600kg |
Company Profile
Founded in 1999, Shandong Yineng Heavy Industry Co., Ltd is a large-scale construction and agricultural equipment manufacturing enterprise integrating R&D, production and sales. The company has more than 400 employees, 8 senior engineers and 12 professional technicians. The products cover wheel loaders, underground mining machine, grass grabber, off-road forklift and etc, with 7 series, more than 100 models and equipment in total. Yineng has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center.
The company has been invited to participate in large-scale international exhibitions such as the Canton Fair, the Hanover Agricultural Machinery Exhibition in Germany, and the Bauma Fair for more than ten years. With first-class technical standards, top-notch manufacturing processes and personalized customization services, Yineng has established a broad customer network around the world, with customers all over Germany, Russia, Brazil, Saudi Arabia, Australia, Thailand, South Africa, etc. More than 40 Many countries and regions.
