YN926G wheel loader

YN926G wheel loader

4 year ago

76 0

Shandong Yineng Heavy Industry Co.,Ltd

 5 year year

Product details

1- FEATURES:

* YTO diesel engine is adopted, with strong power.

* Applying hydrodynamic transmission technology, single stage, 3 elements torque converter owns simple structure and high reliability.

* Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operation easy.

* Single pump, split flow working hydraulic system makes lower consumption and excellent performance.

* Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;

* Load sensing fully hydraulic steering system makes operation easy.

* Air over hydraulic brake system; Caliper disc brakes.

* Working device with automatically leveling ability at high position.

*Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

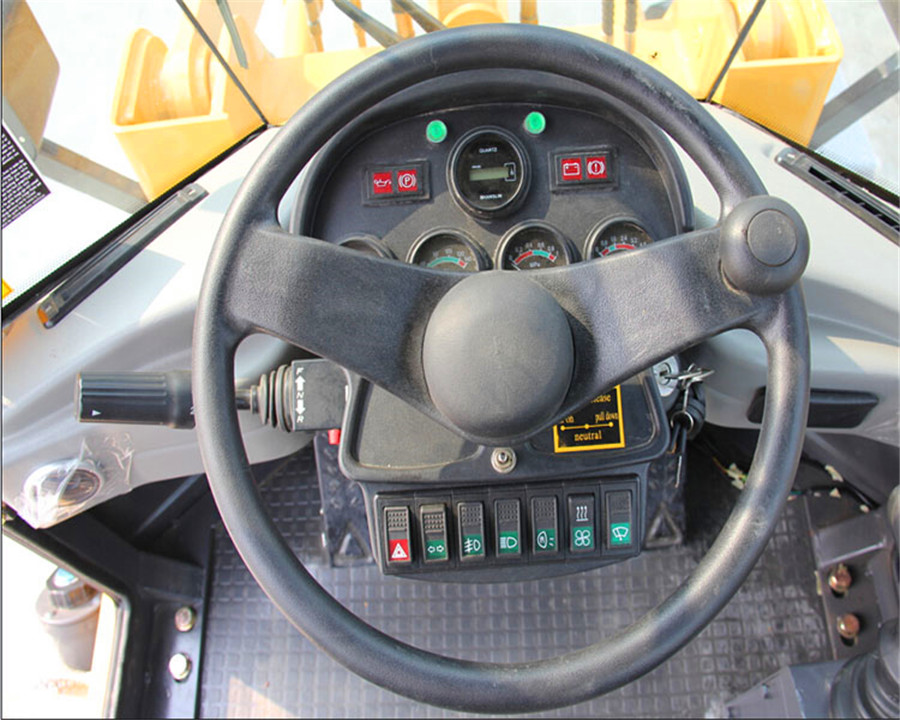

* Integral, luxury instrument board.

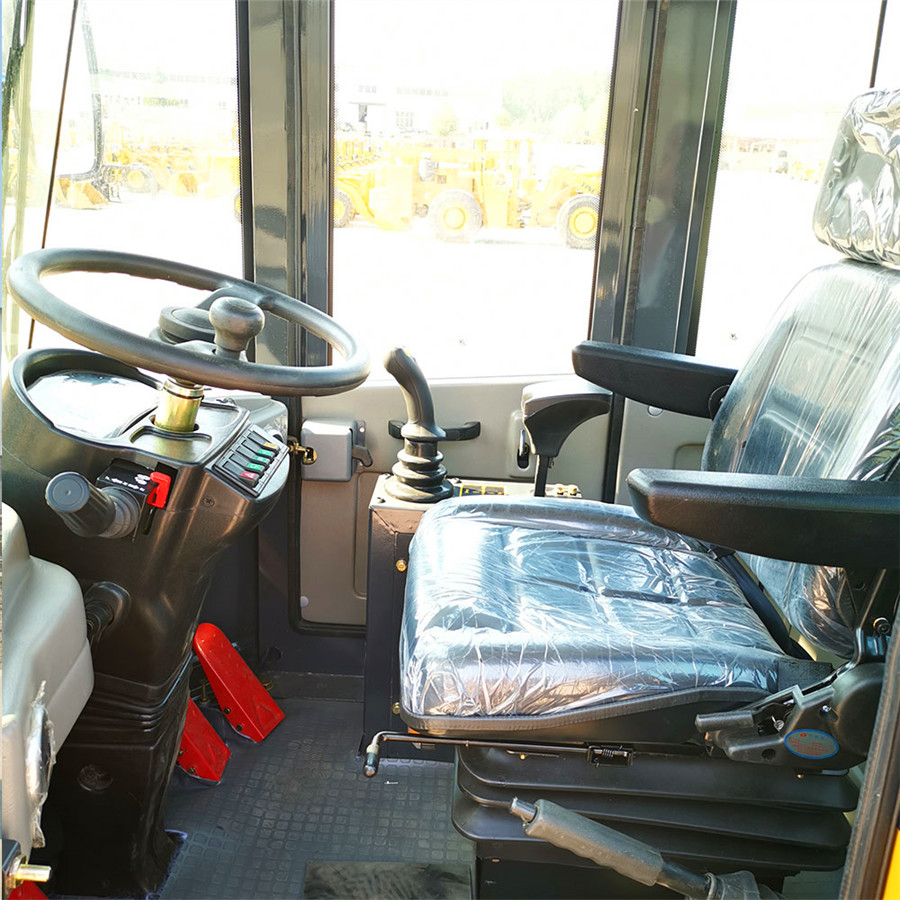

* New, luxury cabin.

Yn926g 6

Yn926g 1

Main specifications	*	Rated load	1500kg
	*	Overall weight	6880kg
	*	Rated capacity	2.0m3 (Food Bucket)
	*	Max. Tractive force	62KN
	*	Max. Breakout force	≥65KN
	*	Max. Grade ability	30°
	*	Top Lifting	4700mm
	*	Max. Dumping height	4100mm
	*	Max. Dumping reach	1400mm
	*	Overall dimension L x W x H	754920602820mm
	*	Min. Turning radius	4814mm
Engine	*	Model	Dongfeng Cummins 4BTA3.9-C100
	*	Type	In line, water cooled, four stroke, direct injection/Turbo charged
	*	No. of cylinder-bore/stoke	4-102x120mm
	*	Rated power	74kW/2200r/min
	*	Max. torque	410N.m/1500rpm
	*	Min. Fuel-consume ratio	≤242g/kW·h
	*	Fuel tank capacity	100L
Transmission	*	Model	ZL16K
	*	Gear shift	2 forward, 2 reverse. Electronic control fixed shaft power shift gearbox
	*	Max. speed	27km/h
Drive axle	*	Main reducing spiral	Grade 1 reduction
	*	Decelerating mode	Planetary reduction, grade
	*	Wheel base	2350mm
	*	Wheel tread	1500mm
	*	Min. ground clearance	320mm
Hydraulic system	*	System working pressure	17.5MPa
	*	Steering system pressure	14Mpa
	*	Boom lifting time	4.5+0.2s
	*	Total time	8.5+0.5s
	*	Hyd tank capacity	100L
	*	Leveling automatically	Yes
Break system	*	Service brake	Air over hydraulic disc brake on 4 wheels
Break system	*	Parking brake	Flexible shaft control caliper disc brake
Tyre	*	Type	16/70-24
	*	Front tyre pressure	0.3Mpa
	*	Rear tyre pressure	0.3Mpa
