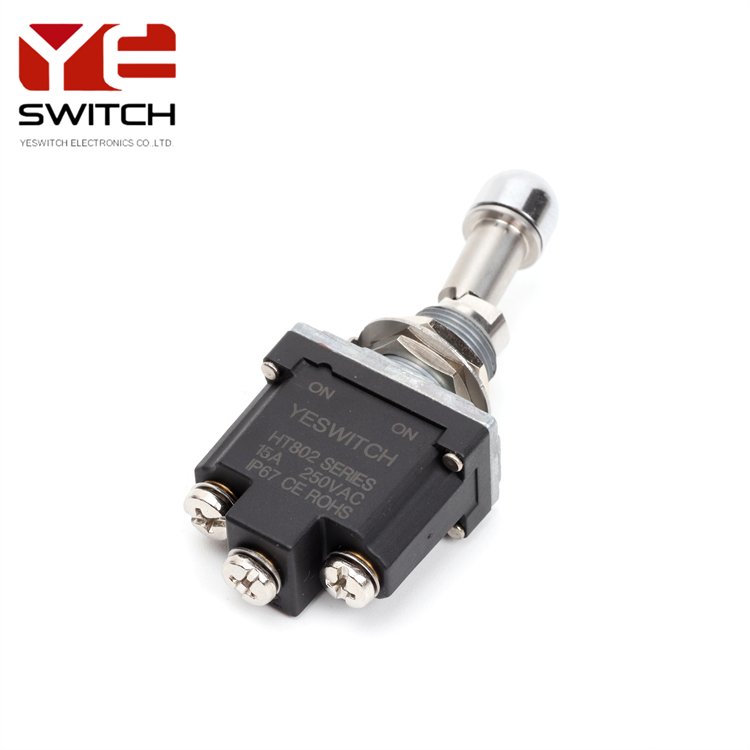

YESWITCH high current toggle switch sealed with increased contact capacity and strong load strength of 15A. The ON-ON toggle switch original technology of filling the inside of the shaking handle with silicone injection molding achieves a full waterproof effect without the need for an additional waterproof cap. The toggle switches function SPDT, which have the characteristics of a waterproof copper head, strong and durable body structure, and excellent stability. The waterproof toggle switch terminals are available with soldering wire and quick connection, You can choose.

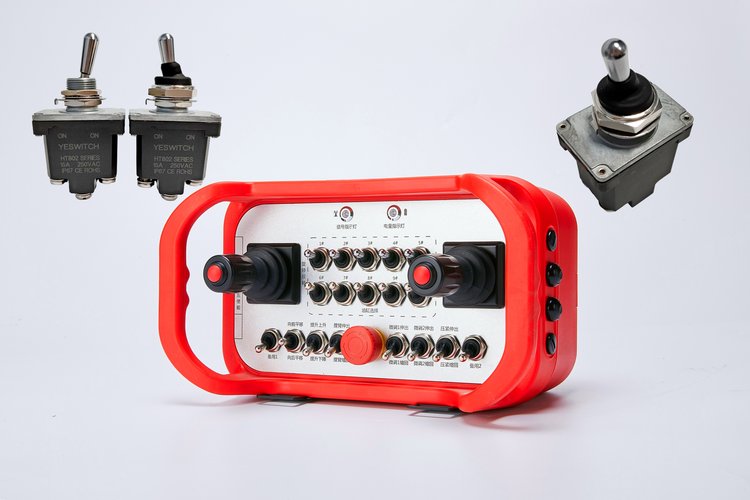

And the IP68 toggle switch applicable in crane remote control, aerial work vehicle controller, joystick, industrial controllers

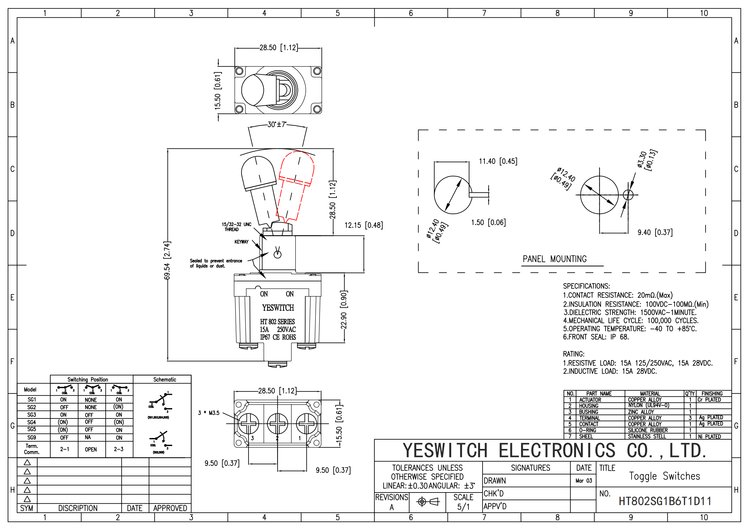

INSULATION RESISTANCE: 100VDC-100MQ.(Min)
DIELECTRIC STRENGTH: 1500VAC-1MINUTE
MECHANICAL LIFE CYCLE: 100,000 CYCLES
OPERATING TEMPERATURE: -40 TO +85℃
FRONT SEAL: IP 68.
RESISTIVE LOAD: 15A 125/250VAC，15A 28VDC.
INDUCTIVE LOAD:15A 28VDC.
