Product Introduction
G140YF DTH Drilling Rig
G140YF High Air Pressure DTH crawler drilling rig has excellent performance with low energy consumption, high efficiency, easy transport. The drilling rig controlled by hydraulic systems,only DTH hammer consume air, so it saves purchase cost of the cost of whole equipment. The rotary system adopts new type motor that confirm maintaining large output of rotary torque, when dragging air compressor, it is very flexible and has strong climbing ability, suitable for rugged ground operations.This rig has high drilling efficiency, easy maintenance, high reliability, capable for mining, highway, water conservancy, power station construction and other blasting hole projects.
Specification
|
Bore diameter(mm) |
100—140 |
|
Bore depth(m) |
60 |
|
Walk speed(km/h) |
0—2.5 |
|
For rock(F) |
6—20 |
|
Air pressure(Mpa) |
1.05—2.46 |
|
Air consumption(m3/min) |
10—20 |
|
Once promotion(mm) |
3000 |
|
Skid pitch(°) |
Up Down Total 100 |
|
Skid swing angle(°) |
Left Right Total 100 |
|
Boom swing angle(°) |
Left Right Total 70 |
|
Boom pitch(°) |
Up Down Total 60 |
|
Host power(Kw) |
56 |
|
Rotation speed(r/min) |
0—126 |
|
Dimension（L*W*H) (mm) |
5270*1960*2300 |
|
weight(Kg) |
4800 |

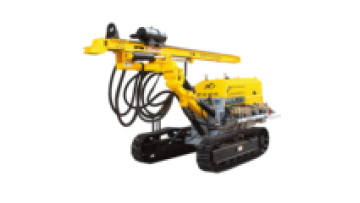

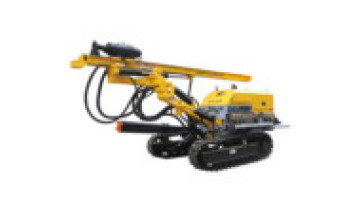

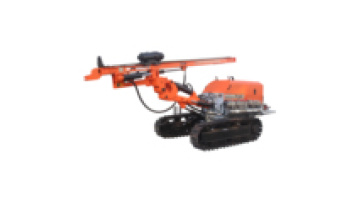

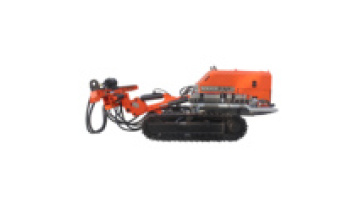

Product Display
Product Application
Company Profile
FAQ
Q1: What’s your delivery time?
A: 15 days to produce, within 3 days if in stock.
Q2: What’s methods of payments are accepted?
A: We agree T/T ,L/C , West Union ,Money Gram ,Paypal.
Q3: What about the shipments and package?
A: 40' container for 2 sets, 20' container for 1 set,
Machine in nude packing, spare parts in standard export wooden box.
Q4: Have you got any certificate?
A:We have got ISO,CE certificate.
Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.
Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year for the machine.
Q7: Can I trust your company ?
A: Our company has been certificated by Chinese government ,and verified by SGS. Just order from US !
