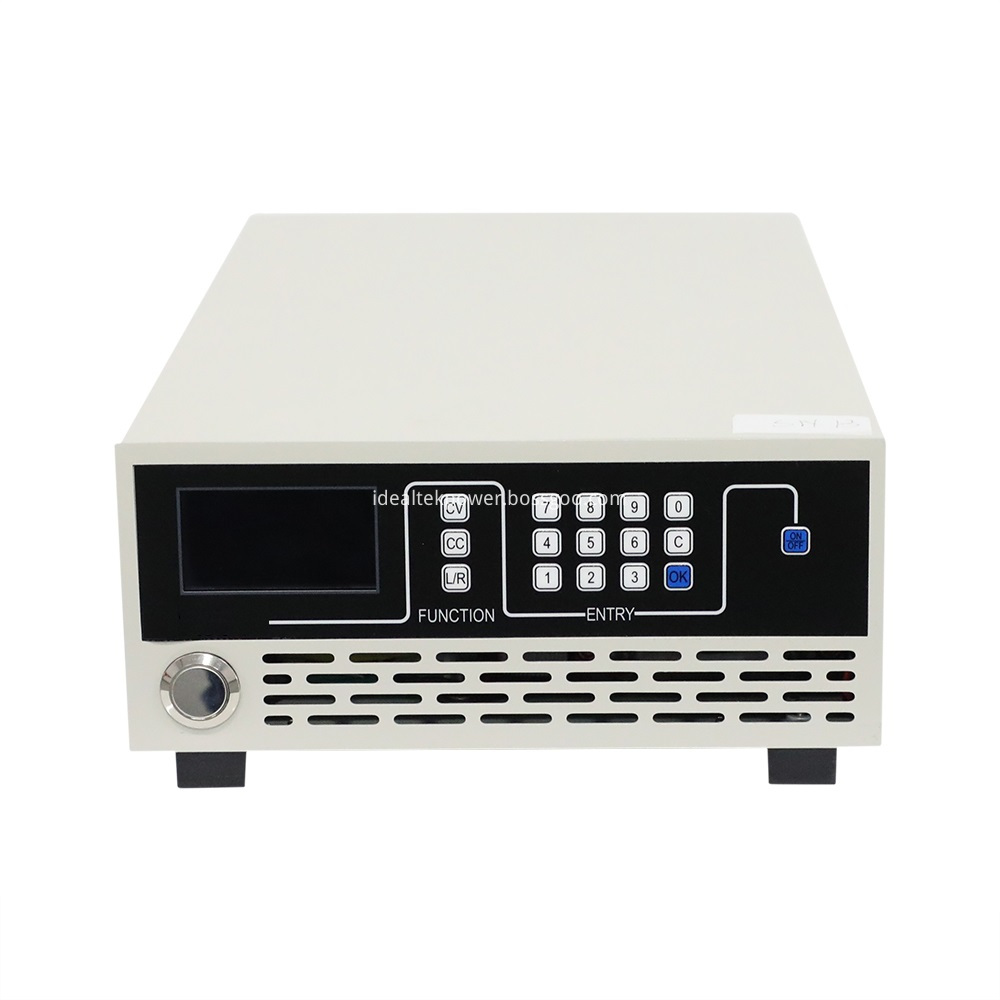

CSP – 1KW Series Programmable DC Power Supply
Overview
CSP-1KW is a single-phase 220Vac input benchtop programmable DC power supplies with designed output power at 1KW, the output rated voltage levels, at 30Vdc / 60Vdc / 100Vdc / 200Vdc / 300Vdc, mature IGBT high frequency switching power topology design and digital control loop give the 1KW programmable AC - DC power supplies high precision, high stability, low ripple and fast response speed DC output features.
The design of the 1KW programmable AC DC power supplies are small and compact for portable moving. The power supplies' front panel adopt silica gel buttons, a stepless knob and a 2.55-inch LCD display. The output voltage, current, start / stop time, output rising rate, OVP, OCP and other parameter setting programming and reading of the Programmable Power Supplies can be easily and quickly completed through the front panel man-machine interface.
The programmable DC power supplies are also equipped with a standard RS485 communication interface, following the MODBUS-RTU international protocol, which can realize remote control programming of the power supply.
It is an excellent choice for programmable laboratory power supplies, and can also be used for instrument calibration and various Desktop DC test application.
Features
l The power supply chassis is produced using laser technology, with unique color matching and excellent baking paint production technology, which gives the power supply generous and elegant appearance.
l The internal circuit boards of power products all produced by PCBA and DIP process, to reduce human faults. The production adopts process inspection for each step, which reduces the defective assembly rate and further improves product reliability.
l Firm and reliable internal structure design and high-quality packaging reduce the probability of damage that may be caused by transportation.
l The power supply adopts LCD display, preset voltage / current values, output voltage / current values, real-time power, local / remote working mode & start / stop status are all displayed on LCD interface, which is convenient for customers to control & monitor the status of DC power supply.
l High display accuracy: 0.1% voltage display accuracy in CV mode, 5 digits voltage display with minimum 1mV resolution; 0.2% current display accuracy in CC mode, 4 digits current display with minimum 1mA resolution.
l The power supply can be used as a constant current source for its low output current ripple while ensuring low voltage ripple.
l The power supply voltage and current have almost no starting impact, and the power output dynamic response time is excellent
l With output programming function, you can edit step waveforms, pulse waveforms, etc., and the rising slope of the voltage and current.
Applications
l LED and energy-saving lamps aging test.
l Switching power supply and power adapter aging test.
l Photovoltaic inverter aging test.
l Aerospace and national defense industry.
l Testing and aging of electric vehicle motors, controllers, and DC motors.
l Capacitors, resistors, relays, transistors, sensors and other electronic devices.
l Electrolytic, electroplating, and corroded aluminum foil processing.
l LCD, touch screen test.
l Automotive electronics, DC motor, motor controller, cigarette lighter, audio and video burn-in test.
