CCP Series High Voltage Capacitor Charging Power Supply
Overview
The CCP-4U series are high-voltage capacitor charging power supplies developed based on the switching technology of IGBT components, specially designed to meet for small and medium capacitors charging applications. Compared with the traditional linear high voltage power supplies solution, the switched-type capacitor charging high voltage power supplies have high power density, high efficiency, high output response speed and faster protection start self-recovery advantages.

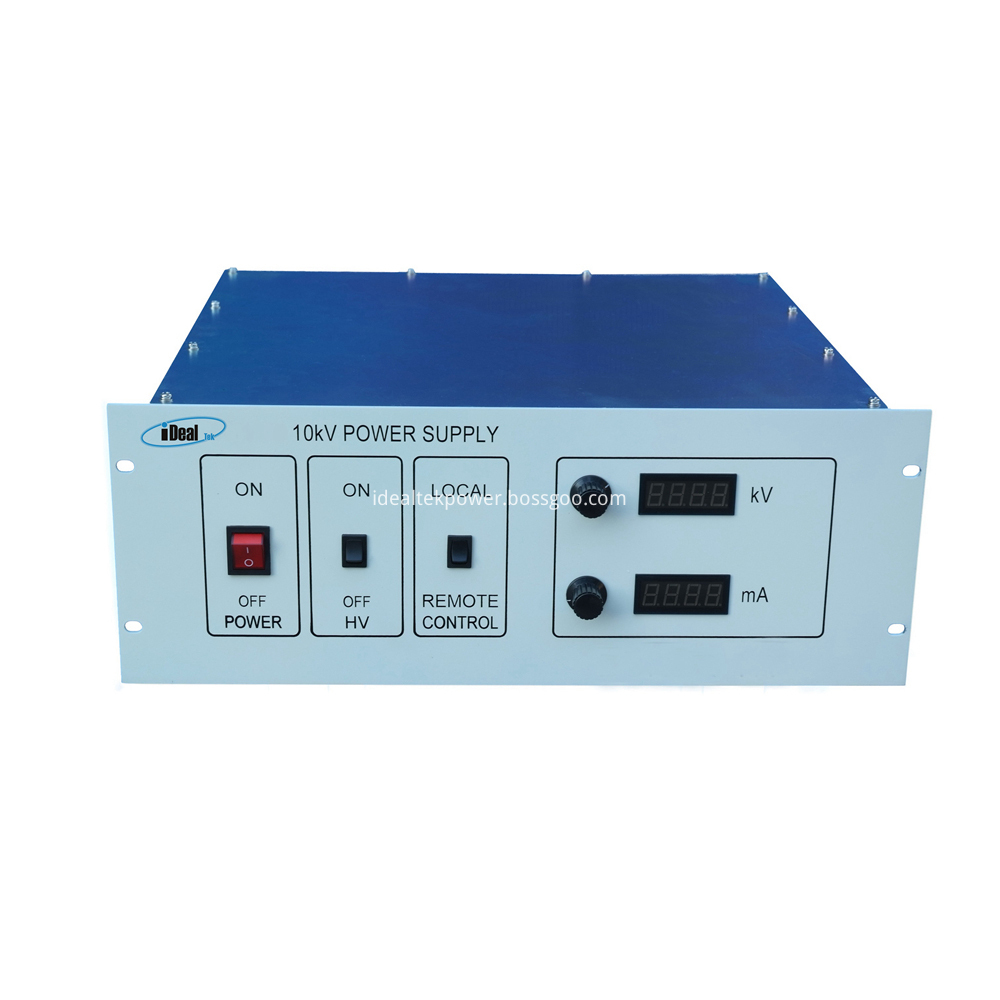

This series of high voltage capacitor charging power supplies use 19-inch 4U standard rack-mounted chassis, which is convenient for the supporting installation of the capacitor charging system. The output power range is 500W to 2KW, output voltage levels, at 1KV / 2KV / 3KV / 4KV / 5KV / 6KV / 8KV / 10KV / 12KV / 15KV / 20KV / 30KV / 40KV / 50KV / 60KV / 70KV / 80KV / 100KV, with complete protection functions to deal with overvoltage, overcurrent, load discharge and other situations.
The output voltage and current of the HV capacitor charging power supplies can be controlled and read through the front control panel. And, this series of HV capacitor charger are also equipped with a DB25 interface as standard. Customers can edit the control software according to our communication protocol or apply 0 - 10V signal and dry contact signal on the interface according to our interface definition to achieve control and monitoring of the capacitor charging HVPS, such as high voltage start/stop, output settings and readings.
Features
l Can be used as a HV DC power supply or as HV capacitor charging power supply.
l Output voltage adjustable from 0 to 100%
l Output power: Average charging @ 1KJ/S ~ 1.5KJ/S and the peak charging power can reach 3KW.
l Charging in constant current mode and switch to constant current mode till fully charged.
l Unique double isolated system, strong anti-interference ability.
l Forced air cooling, very rugged design.
Optional Functions
l Ion beam implantation.
l Semiconductor process.
l Electron beam welding.
l Capacitor charging.
l High-power RF
transmitter.
l Electrostatic
precipitator.
Safety Cautions
1. This power module has HV output, only professional person could operate it.
2. Please make sure of good grounding before operation.
3. Capacitor charging power supply has low internal stored energy, please NO no-loading working.
4. Keep power module clean and good ventilation.
5. HV input & output connectors or HV load no touch anything.
