100m USB Compact Long Range Measurement Sensor
The long range measurement sensor can measure from 3cm to 100m. This miniature laser distance module can be used for many harsh industrial uses. You can order the sample for evaluation, and get more info of autonics distance sensor from us. Is there any warranty for this product ? YES. If you need any official illustration brochure of this product with operating instructions, feel free to call us.
Technical data sheet:
Range: 0.03-100 meter
Invisible measuring: 620nm-690nm
Measuring accuracy: +-3 mm
Measuring frequency: Up to 3 Hz
Laser type: Class 2, red
Interface options: Serial, USB
Working temperature: 0 ~ 40 degree
Storage temperature: -25 ~ 60 degree
Notes:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. 60m can be customized.
4. Voltage can be changed by power converter LDO
5. Frequency would be affected by environment.
6. Operating temperature -10 ℃~50 ℃ can be customized.
7. Analog can be customized.
Detailed Pictures

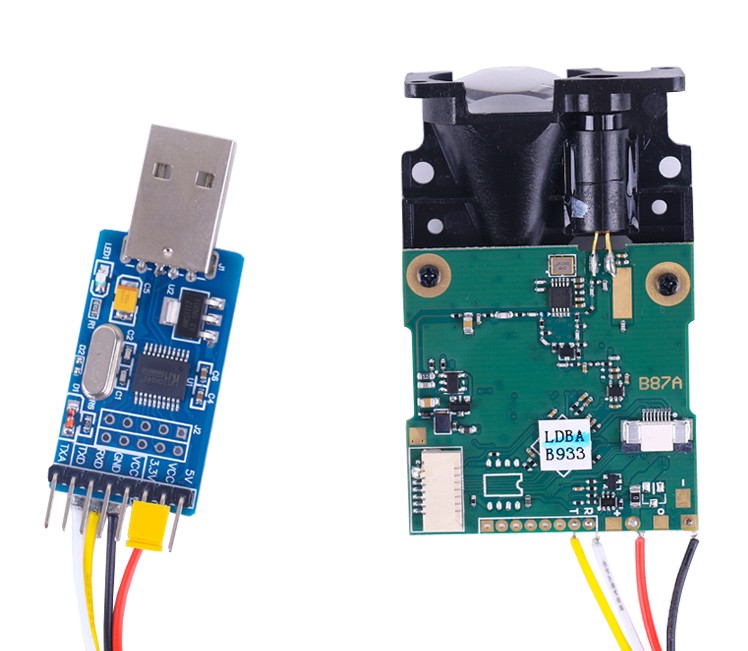

Compact Long Range Measurement Sensor Front

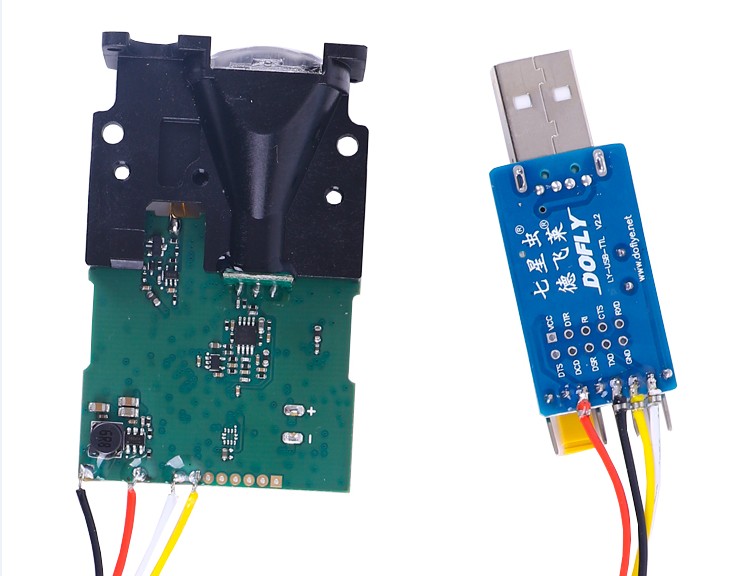

Compact Long Range Measurement Sensor Back

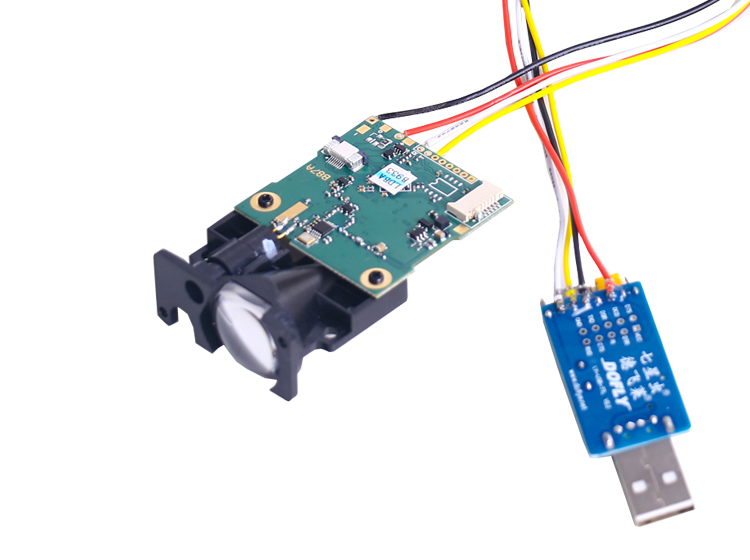

Compact Long Range Measurement Sensor Lens
Compact Long Range Measurement Sensor Thickness
Feedbacks:
Customer to Joyce Liu:
Hi Joyce
Good day!
I just received and tested the two new -10 Celsius samples.
The are doing well.
Many thanks for your effort!
