Product details

Product Introduction
Alloy pipe is a kind of seamless steel pipe, its performance is much higher than that of general seamless steel pipe, because this type of steel pipe contains more Cr, its high temperature resistance, low temperature resistance, corrosion resistance performance is much better than other Steel pipe, so the alloy pipe is widely used in petroleum, aerospace, chemical, electric power, boiler, military and other industries.
Alloy steel is steel that is alloyed with a variety of elements in total amounts between 1.0% and 50% by weight to improve its mechanical properties. Alloy steels are broken down into two groups: low-alloy steels and high-alloy steels. The difference between the two is somewhat arbitrary: Smith and Hashemi define the difference at 4.0%, while Degarmo, et al., define it at 8.0%.Most commonly, the phrase "alloy steel" refers to low-alloy steels.
Strictly speaking, every steel is an alloy, but not all steels are called "alloy steels". The simplest steels are iron (Fe) alloyed with carbon (C) (about 0.1% to 1%, depending on type). However, the term "alloy steel" is the standard term referring to steels with other alloying elements added deliberately in addition to the carbon. Common alloyants include manganese (the most common one), nickel, chromium, molybdenum, vanadium, silicon, and boron. Less common alloyants include aluminum, cobalt, copper, cerium, niobium, titanium, tungsten, tin, zinc, lead and zirconium.

ASTM A335 seamless alloy steel pipe
ASTM A335 Pipe (ASME S/A335, Chorme-Moly) is a seamless ferritic Alloy-Steel Pipe for high temperature service. Pipe ordered to this specification shall be suitable for bending, flanging (vanstoning), and similar forming operations, and for fusion welding. Sometimes referred to as “P Grade”, Chrome Moly Pipe is popular in P-Grades P5, P9, P11, P22, and P91. The most common use of grades P11, P22, and P91 is in the power industry and petro-chemical plants, Grades P5 and P9 are commonly used in refineries.
A335 is often called chrome moly pipe because of the chemical makeup of Molybdenum (Mo) and Chromium (Cr). Molybdenum increases the strength of steel as well as the elastic limit, resistance to wear, impact qualities, and hardenability. Moly increases the resistance to softening, restrains grain growth and makes chromium steel less susceptible to embrittlement. Moly is the most effective single additive that increases high temperature creep strength. It also enhances the corrosion resistance of steel, and inhibits pitting. Chromium (or chrome) is the essential constituent of stainless steel. Any steel with 12% or more Chrome is considered stainless. Chrome is virtually irreplaceable in resisting oxidation at elevated temperatures. Chrome raises the tensile, yield, and hardness at room temperatures. The composition chrome moly alloy steel pipe make it ideal for use in power plants, refineries, petro chemical plants, and oil field services where fluids and gases are transported at extremely high temperatures and pressures.

Product Specification

Item	Cold rolled/Hot rolled alloy steel seamless pipe
Standard	GB3087, GB6479-2000, GB9948-2006, GB5310-2013, GB5310-95, GB9948-88. ASTM A209M/ASME 209M, ASME SA210, ASTM A213/ASME SA213M ASTM A333M/ASME SA333/SA333M, ASTM A334M/ASME SA334/SA334M ASTM A335/ASME SA335, ASTM A519, ASTM A691, DIN 17175, EN10216-2 JISG3467, JISG3458, JIS G3441, NF A49-213/215, BS3059, BS3604, BS3606
Materials	20G, 25MnG, 15MoG, 15CrMoG, 20MoG, 12CrMoG, 12Cr2MoG, 12Cr1MoVG, 12Cr2MoWVTiB, 10Cr9Mo1VNb, 15CrMoG, 10CrMo910. A209T1/SA209 T1, A209 T1b/SA-209 T1b, A209T1a/SA209 T1a. T2, T5, T9, T11, T12, T22, T23, T24, T91, T911, T92, T122. Gr1, Gr3, Gr4, Gr6, Gr7, Gr8, Gr9, Gr10, Gr11. P1, P2, P5,P5b, P5c, P9, P11, P12,P21,P22,P23, P24, P91, P92. 4118, 4130, 4135, 4137, 4140. ST35.8, ST45.8, 15Mo3, 13CrMo44, 10CrMo910, 14MoV63,12Cr1MoV. P195GH, P235GH, P265GH, 13CrMo4-5, 10CrMo9-10, 16Mo3, 10CrMo5-5, X10CrMoVNb9-1. GRADE 91, CM65, CM70, CM75, CMSH70, CMS75, CMSH80. GRADE 1/2 Cr, GRADE 1CR, GRADE 1 1/4 CR, 2 1/4 Cr, 3CR, 5CR, 9CR. STPA12, STPA20, STPA22, STPA23, STPA24, STPA25, STPA26. SCR420 TK,SCM415 TK, SCM418 TK, SCM420TK, SCM430TK, SCM435TK, SCM440TK. TU15D3, TU13CD4-04, TU10CD910, TUZ10CD505. S1-622-440, S2-622-440, S1-622-490, S2-622-490, S1-629-470, S2-629-470, S2-629-590. HFS625 CFS625, CFS625.
Description	Surface	black painted, PE coated, galvanized
	Length	5.8m, 6m, 11.8m, 12m, or as required
	Wall Thickness	1-120mm
	Outer Diameter	6-1200mm
Trade terms	Payment terms	T/T,L/C
	Price terms	FOB,CIF
Package	Standard export seaworthy package or as required.
Delivery time	Prompt delivery or as the order quantity.
Export to	Alloy steel pipe applies to petroleum,chemical industry, electric power, boiler, high temperature resistant, low temperature resistant,corrosion resistant seamless steel pipe used.Alloy steel pipealso can made according to the customer.
Container size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM
Contact	If you have any question,please feel free to contact me.

ASTM A335 Seamless Alloy Steel Pipe
A335 is often called chrome moly pipe because of the chemical makeup of Molybdenum (Mo) and Chromium (Cr). Molybdenum increases the strength of steel as well as the elastic limit, resistance to wear, impact qualities, and hardenability. Moly increases the resistance to softening, restrains grain growth and makes chromium steel less susceptible to embrittlement. Moly is the most effective single additive that increases high temperature creep strength. It also enhances the corrosion resistance of steel, and inhibits pitting. Chromium (or chrome) is the essential constituent of stainless steel. Any steel with 12% or more Chrome is considered stainless. Chrome is virtually irreplaceable in resisting oxidation at elevated temperatures. Chrome raises the tensile, yield, and hardness at room temperatures. The composition chrome moly alloy steel pipe make it ideal for use in power plants, refineries, petro chemical plants, and oil field services where fluids and gases are transported at extremely high temperatures and pressures.
Chemical Composition:

Grade	ASTM A335 P5	ASTM A335 P9	ASTM A335 P11	ASTM A335 P12	ASTM A335 P22	ASTM A335 P91
Carbon	≤0.15	≤0.15	0.05 – 0.15	0.05 – 0.15	0.05 – 0.15	0.08 – 0.12
Manganese	0.30 – 0.60	0.30 – 0.60	0.30 – 0.60	0.30 – 0.60	0.30 – 0.60	0.30 – 0.60
Phosphorous	≤0.025	≤0.025	≤0.025	≤0.025	≤0.025	≤0.020
Sulfur	≤0.025	≤0.025	≤0.025	≤0.025	≤0.025	≤0.010
Silicon	≤0.50	0.25 – 1.00	0.50 – 1.00	≤0.50	≤0.50	0.20 -0.50
Chromium	4.00 – 6.00	8.00 – 10.00	1.00 – 1.50	0.80 – 1.25	1.90 – 2.60	8.00 – 9.50
Molybdenum	0.45 -0.65	0.90 – 1.10	0.44 – 0.65	0.44 – 0.65	0.87 – 1.13	0.85 – 1.05

Mechanical Properties:

Tensile Strength, min., psi	P-5	P-9	P-11	P-22	P-91
ksi	60	60	60	60	85
MPa	415	415	415	415	585
Yield Strength, min., psi
ksi	30	30	30	30	60
MPa	205	205	205	205	415

Tensile Requirements:

Mechanical properties	P1,P2	P12	P23	P91	P92	P122
Tensile strength	380	415	510	585	620	620
Yield strength	205	220	400	415	440	400

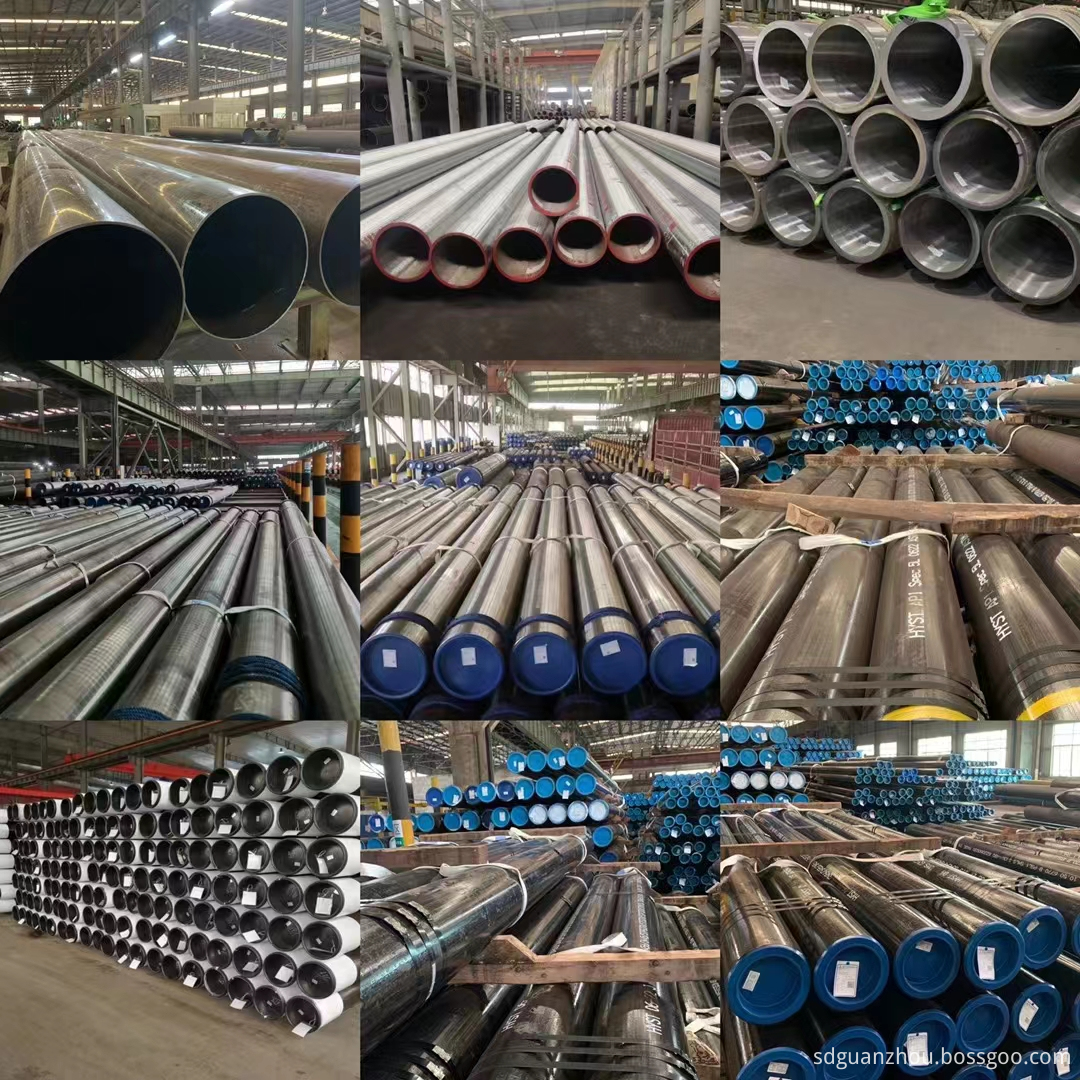

Product Display

Alloy Steel Pipe

Packaging And Transportation
We offer different modes of transport depending on the customer's destination: rail transport and ship transport，etc.The Shipping Mark shall consist of: Trade mark, Seller's name, Product name, Applicable standards,Specifications, Package No., Contract No., Heat No., Production date, Weighing method, Net weight, Gross Weight, Consignee and Protection symbols, etc.
Alloy Seamless Steel Pipe
FAQ
Q1:Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
Q2:What product information do I need to provide?
A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.
Q3:It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.
Q4:What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
Q5:What about product prices information?
A:Prices various according to periodic price changes of raw materials.
Q6:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.
Q7:Do you provide custom made Products service?
A: Yes,if you have your own design , we can produce according to your specification and drawing.
Q8:What are the certifications for your products?
A:We have ISO 9001, MTC, third parties’ inspections are all available such SGS, BV ect.
Q9:How long does your delivery time take?
A:In general, our delivery time is within 7-15 days, and may be longer if the quantity is extremely large or special circumstances occur.
Q10: How many countries you already exported to?
A:We have exported to America, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana,somalia and other African countries.Our export experience is rich, we familiar with different market demands, can help customers avoid a lot of trouble.
Q11:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q12:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed and customers can appoint third parties to inspect the products before loading too.
Q13:How to pack the products?
A: Standard export sea-worthy packaging, the inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion and various climate changes during ocean transportation.
Q14:What is your working time?
A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry in the coming working day.

What products does your company make?
Our main products include Seamless tube; Marine Steel Plate; Alloy Steel Plate; Weather Resistant Steel Plate; Pressure Vessel Plate etc. The company's products are of high quality, low price, and fast delivery, and are well received by domestic and foreign users.
