USE

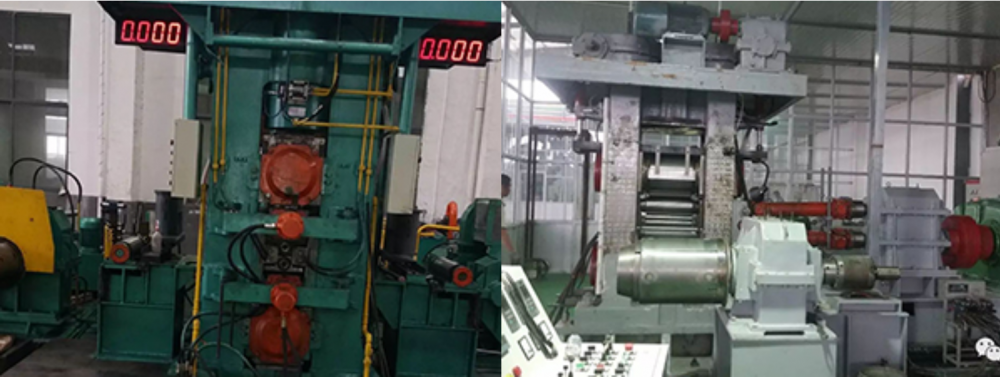

This series of units is suitable for medium and finished rolling and finished products of carbon steel, excellent steel, non-ferrous metals (tantalum, niobium, tungsten, molybdenum, titanium, copper, gold, silver, etc.) plate and strip, and has many advantages such as high rolling precision, smooth plate surface and stable tension. It is especially suitable for rolling high-precision broadband and foil strips.
Equipment composition
The model is composed of winding and unwinding mechanism, main frame, front and rear guide device, transmission base, hydraulic system, electronic control system and other parts.
Technical parameters
Model/technical data
350 six-high rolling mill
450 six-high rolling mill
600 six-high rolling mill
Work Roller (mm)
Ф40×350
Ф70×450
Ф120×600
Intermediate roller (mm)
Ф90×300
Ф140×410
Ф185×520
Support roller (mm)
Ф280×330
Ф350×450
Ф550×520
Rolling force (KN)
2000
2400
5000
Rolling raw materials
Non-ferrous metal strip
Carbon steel strip
Non-ferrous metal foil
Feed Specification(mm)
1×280
1×280
2×520
Finished product specifications(mm)
≥0.02
≥0.1
≥0.03
Rolling speed(m/min)
0~120
0~180
0~150
Main motor
Permanent magnet motor
DC motor
DC motor
reducer
Hard tooth surface reducer
Hard tooth surface reducer
Hard tooth surface reducer
Herringbone gear holder
A=185
Mn=9
A=280
Mn=10
A=450
Mn=10
Press-down speed (m/s)
3.5
4-5
3.5
Pressed form
Electric depression
AGC cylinder pressed down
Electric depression
Winding machine (optional)
Manual rewinder
Hydraulic contractor winder
Hydraulic contractor winder
Manual rewinder
Hydraulic contractor winder
Transmission form
Support rollers
Support rollers
Support rollers
Concentrate:
(1) Permanent magnet synchronous speed regulation motor has high efficiency and energy saving, stable start and high torque at low speed.
(2) This table model and parameters are for reference, and can be designed and produced according to user requirements.
